1. Introduction
This hybrid PV inverter can provide power to connected loads by utilizing PV power,
utility power and battery power.
Battery

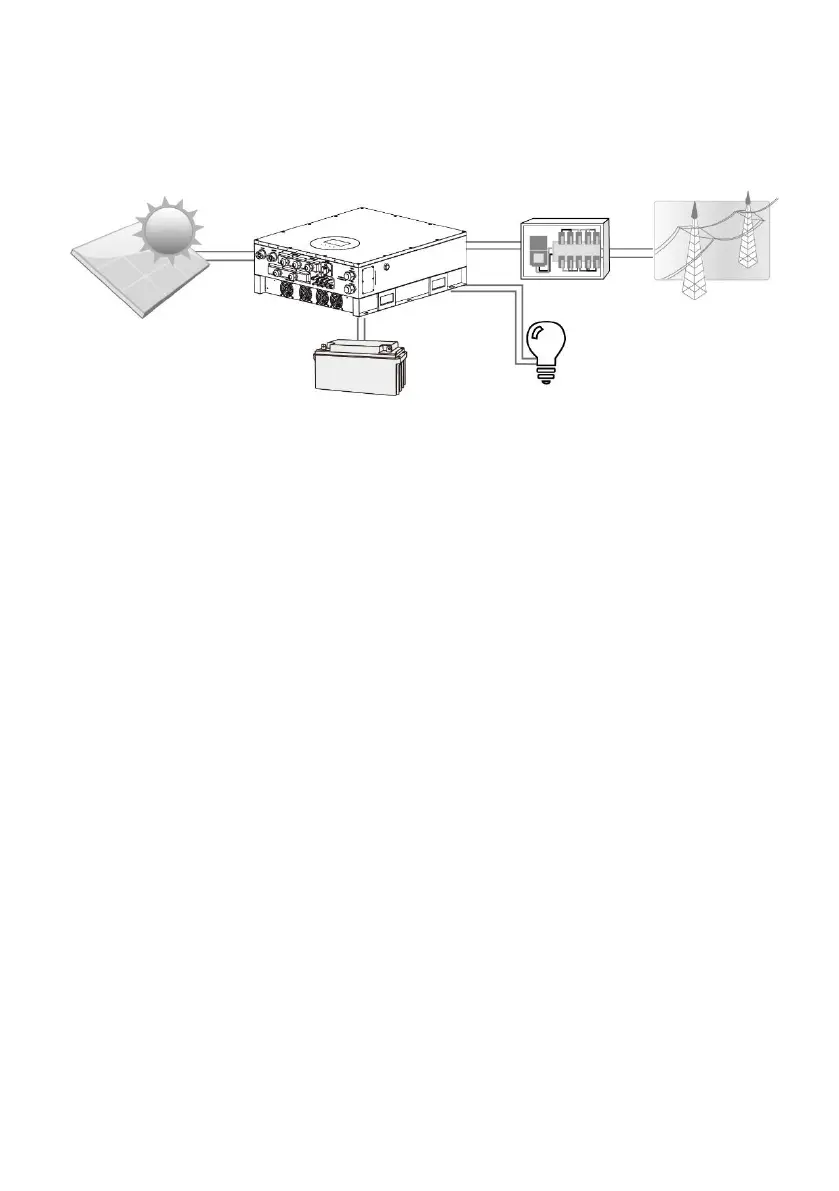

Figure 1 Basic hybrid PV System Overview
Depending on different power situations, this hybrid inverter is designed to generate
continuous power from PV solar modules (solar panels), battery, and the utility. When
MPP input voltage of PV modules is within acceptable range (see specification for the
details), this inverter is able to generate power to feed the grid (utility) and charge
battery. This inverter is only compatible with PV module types of single crystalline and
poly crystalline. Do not connect any PV array types other than these two types of PV
modules to the inverter. Do not connect the positive or negative terminal of the solar
panel to the ground. See Figure 1 for a simple diagram of a typical solar system with this
hybrid inverter.
Note: By following the EEG standard, every inverter sold to German area is not allowed
to charge battery from Utility. The relevant function is automatically disabled by the
software.
