MPP Solar MPI 12KW WP - Page 37

34

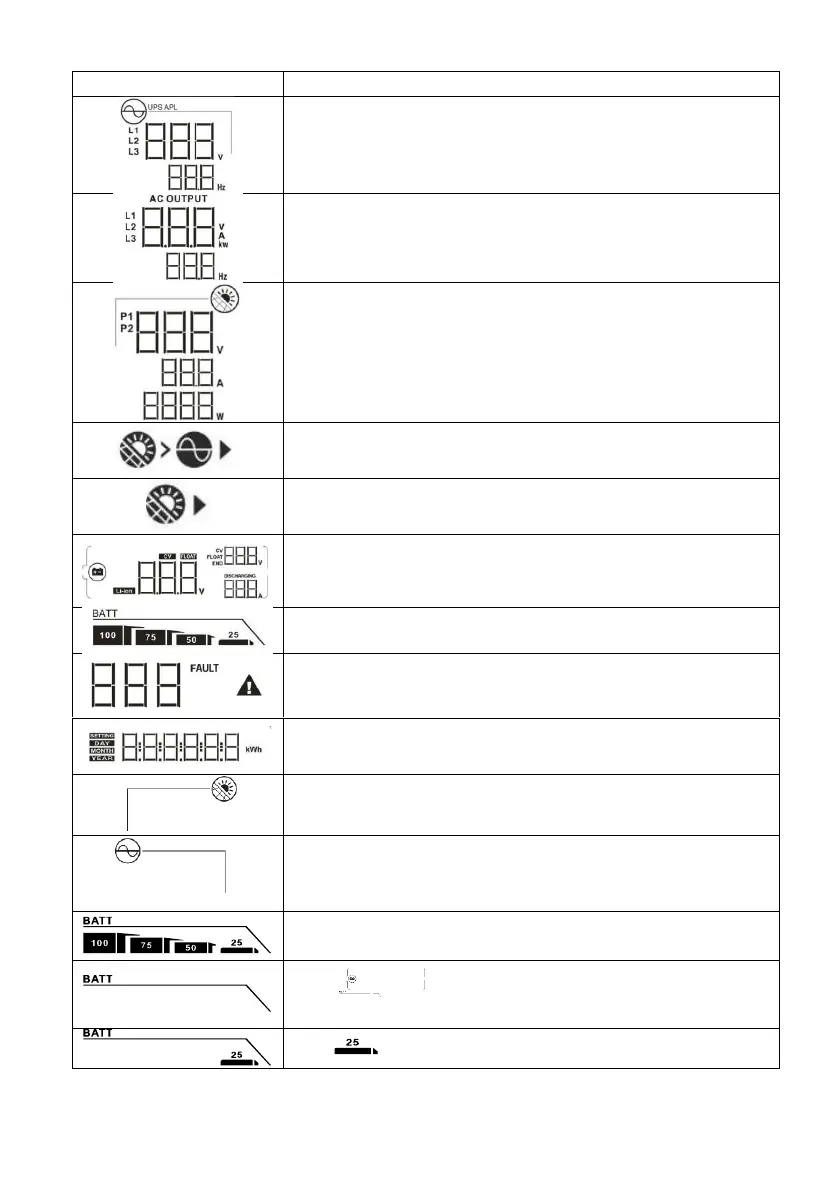

Display
Function
Indicates AC input voltage and frequency.
V: voltage, Hz: frequency, L1/L2/L3: Line phase
Indicates AC output power, voltage, frequency, or current.
kw: active power, V: voltage, Hz: frequency, A: current
L1/L2/L3: AC output phase
Indicates PV input voltage, power or current.
V: voltage, W: power, P1: PV input 1, P2: PV input 2
A: current
Allow AC and PV charging
Only PV charging is allowed
Indicates battery voltage, battery current, charging status
or battery parameters
V: voltage, A: current, Li-ion: Lithium-ion battery type
Indicates battery level in battery mode.
Indicates the warning and fault codes.
Indicates date and time or the date and time users set for
querying energy generation.
Indicates solar panels.
Icon flashing indicates PV input voltage is out of range.
Indicates utility.
Icon flashing indicates utility voltage or frequency is out of
range.
Indicates battery condition. And the lattice of the icon
indicates battery capacity.
Icon flashing indicates battery is not allowed
to discharge.
Icon flashing indicates the battery voltage is too low.
