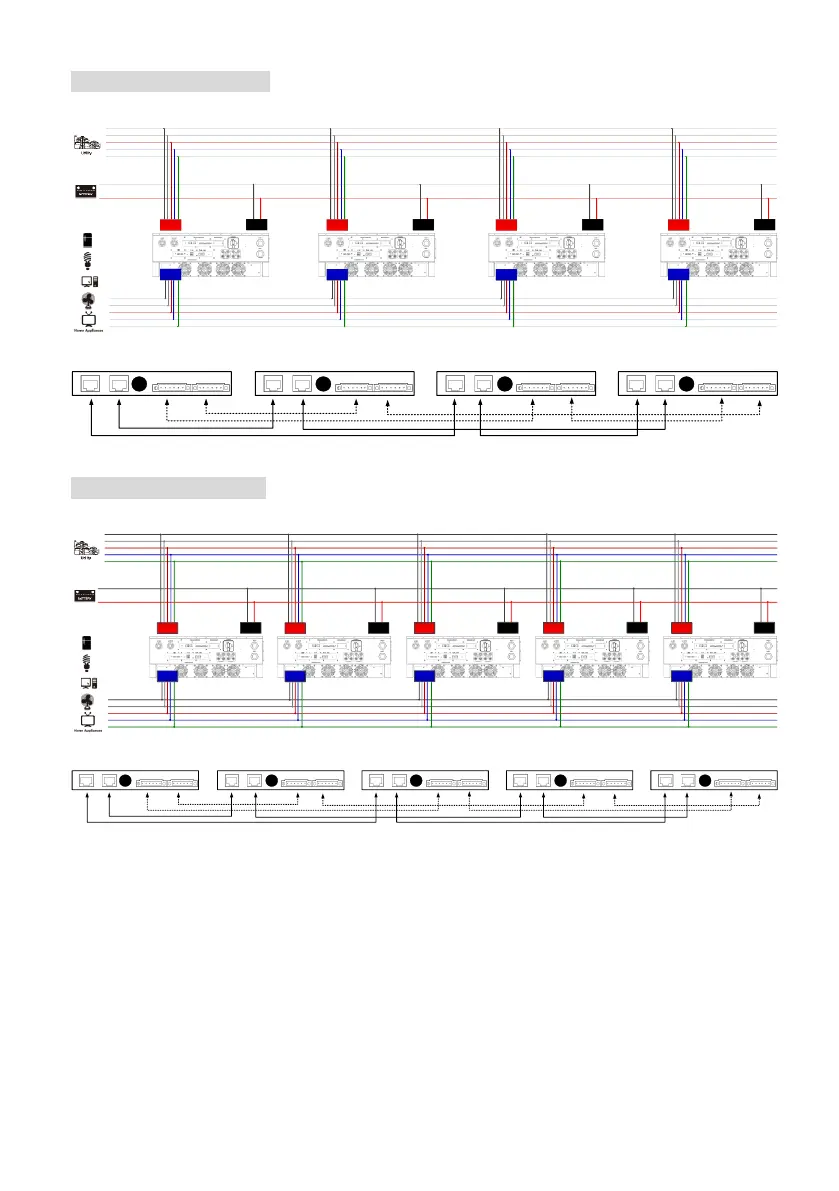

Four inverters in parallel:
Power Connection
AC
OUTPUT
AC INPUT
L1
L2
L3
N
G
L1
L2
L3
N
G
Battery
BAT-
BAT+
AC
OUTPUT
AC INPUT
Battery
AC
OUTPUT
AC INPUT
Battery
AC
OUTPUT
AC INPUT
Battery
Communication Connection
1 2 3 4
Five inverters in parallel:
Power Connection
AC
OUTPUT
AC INPUT
L1
L2
L3
N
G
L1
L2
L3
N
G
Battery
BAT-
BAT+
AC
OUTPUT
AC INPUT
Battery
AC
OUTPUT
AC INPUT
Battery
AC
OUTPUT
AC INPUT
Battery
AC
OUTPUT
AC INPUT
Battery
Communication Connection
1 2 3 4 5
