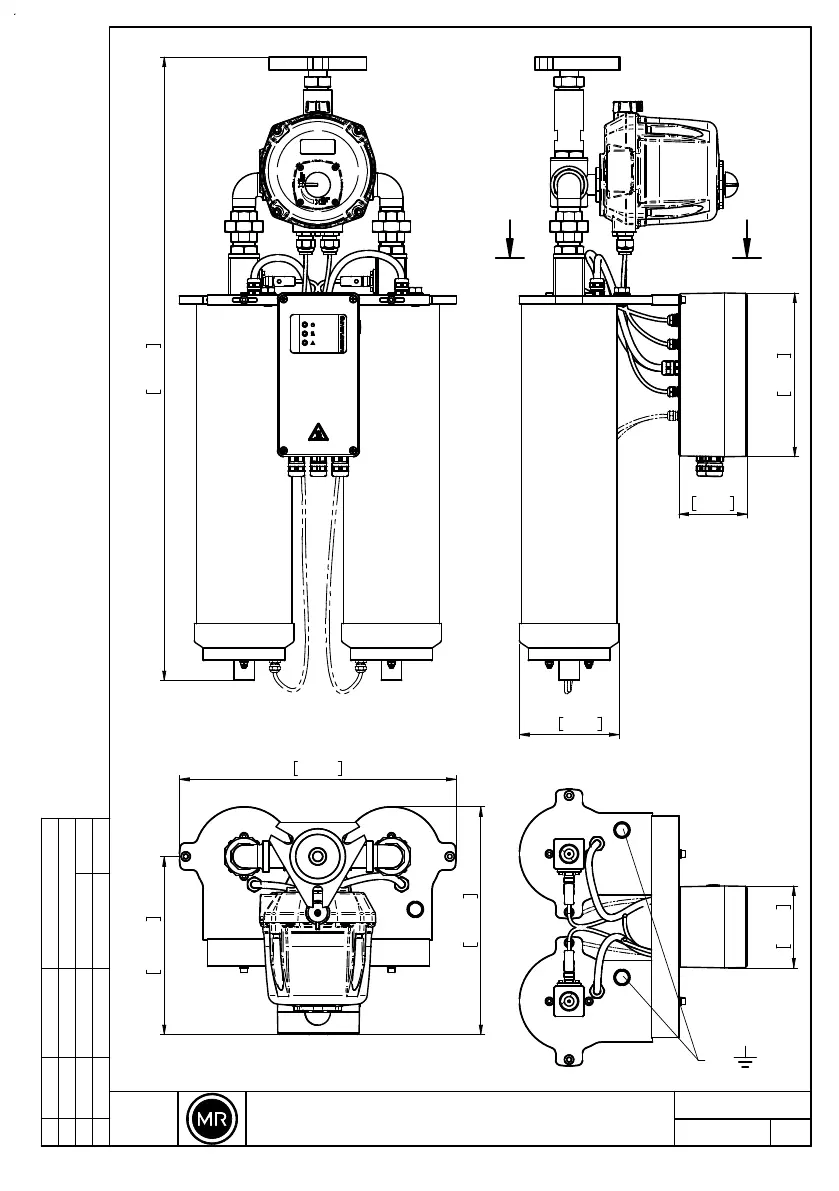

MTRAB® DB200G mit Gammasteuerung /
Maßzeichnung / DIMENSION DRAWING
MTRAB® DB200G WITH GAMMA CONTROL
A A
A-A
M12
120 4.72"
261 10.276"
334 13.150"
