MR MESSKO MTRAB - Page 37

5 Mounting
37BA6820378-03 EN

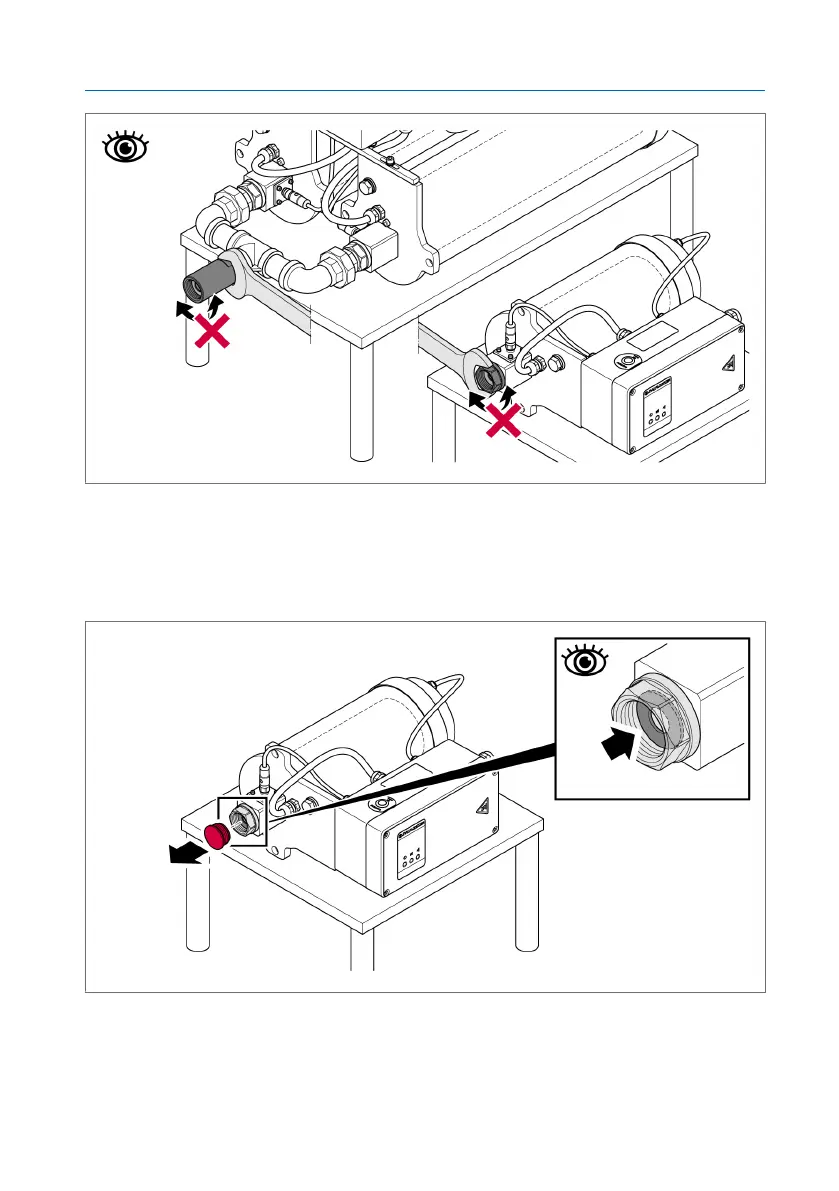

Figure15: Nut on the upper air spout
To prepare the dehydrating breather for mounting, proceed as follows:
1. Remove the red protective cap from the upper air intake spout.
2. Check that there is a gasket in the air intake spout.
Figure16: Protective cap and gasket
3. Insert the flange included with delivery into the upper air intake spout.
