6 Mounting
Maschinenfabrik Reinhausen GmbH 202146 7817454/02 ENTAPCON
®
230 Expert
► Position the cable shielding, screw into place using the shield clamp pro-
vided and provide strain relief (using a cable tie).

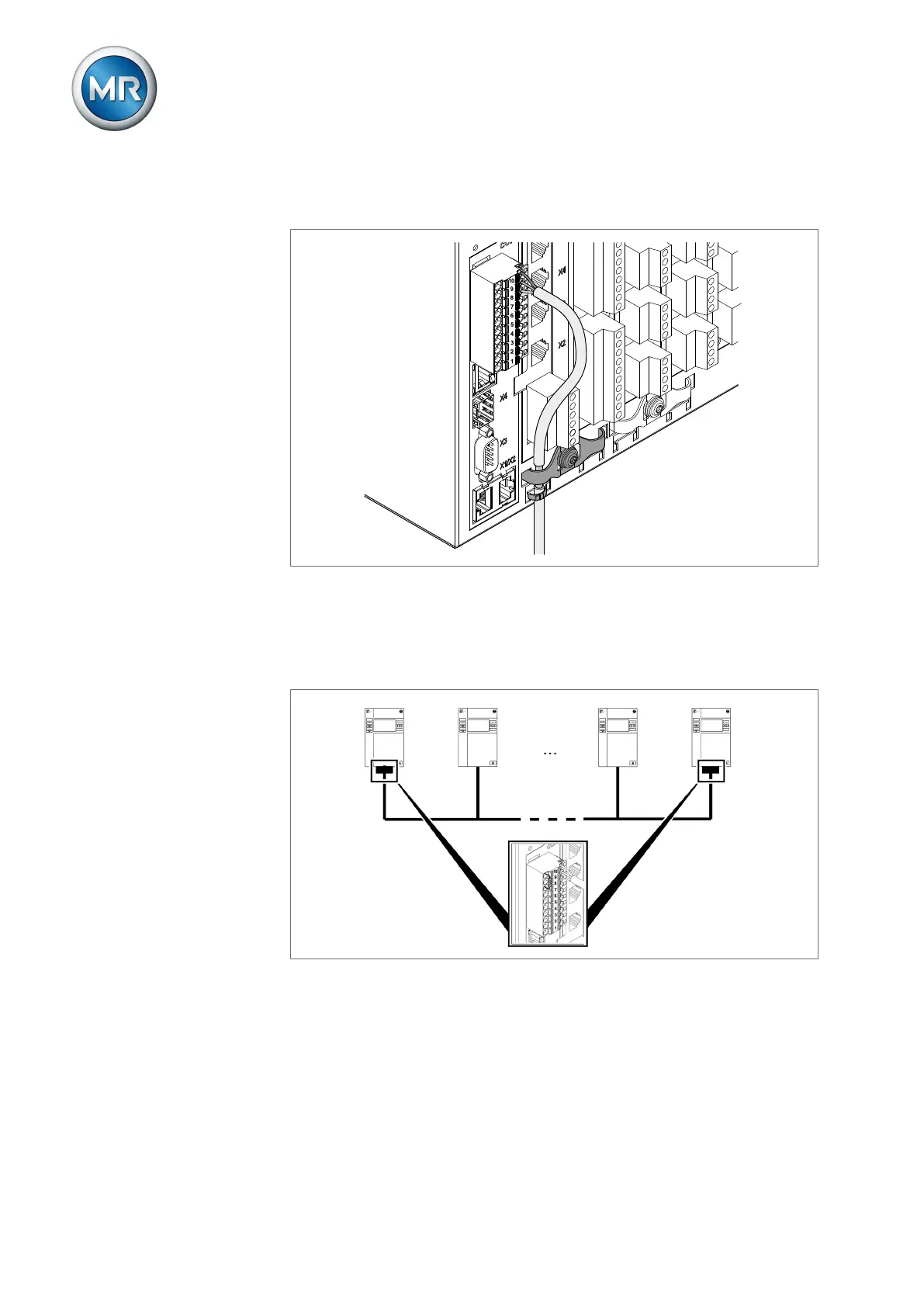

Figure27: Shield clamp and strain relief
6.4.4.2 Mounting terminating resistor of CAN bus
If you want to operate the device in parallel operation, you need to mount a
120Ω terminating resistor at both ends of the CAN bus.
Figure28: Terminating resistor of the CAN bus
► Mount terminal resistors in pins 10, 9 and 8 of the COM-X6 connector.
