4 Principles of Operation
Recharging Instructions
Insert the charging plug into the receptacle. Complete recharging takes 3.5 hours minimum.
NOTE: Charging must be carried out in a non-hazardous area. The charging receptacle is located inside the housing
adjacent to the ON button. To gain access, it is necessary to unscrew the knurled plug from the body of the unit. The plug is
secured to the ON button by a safety strap to keep it from being lost. Replace the plug after charging is complete.
It is recommended that the Test Lamp be kept on charge when not in use to prevent excessive battery discharge. The
batteries may be charged an average of 500 times before the battery pack must be replaced.

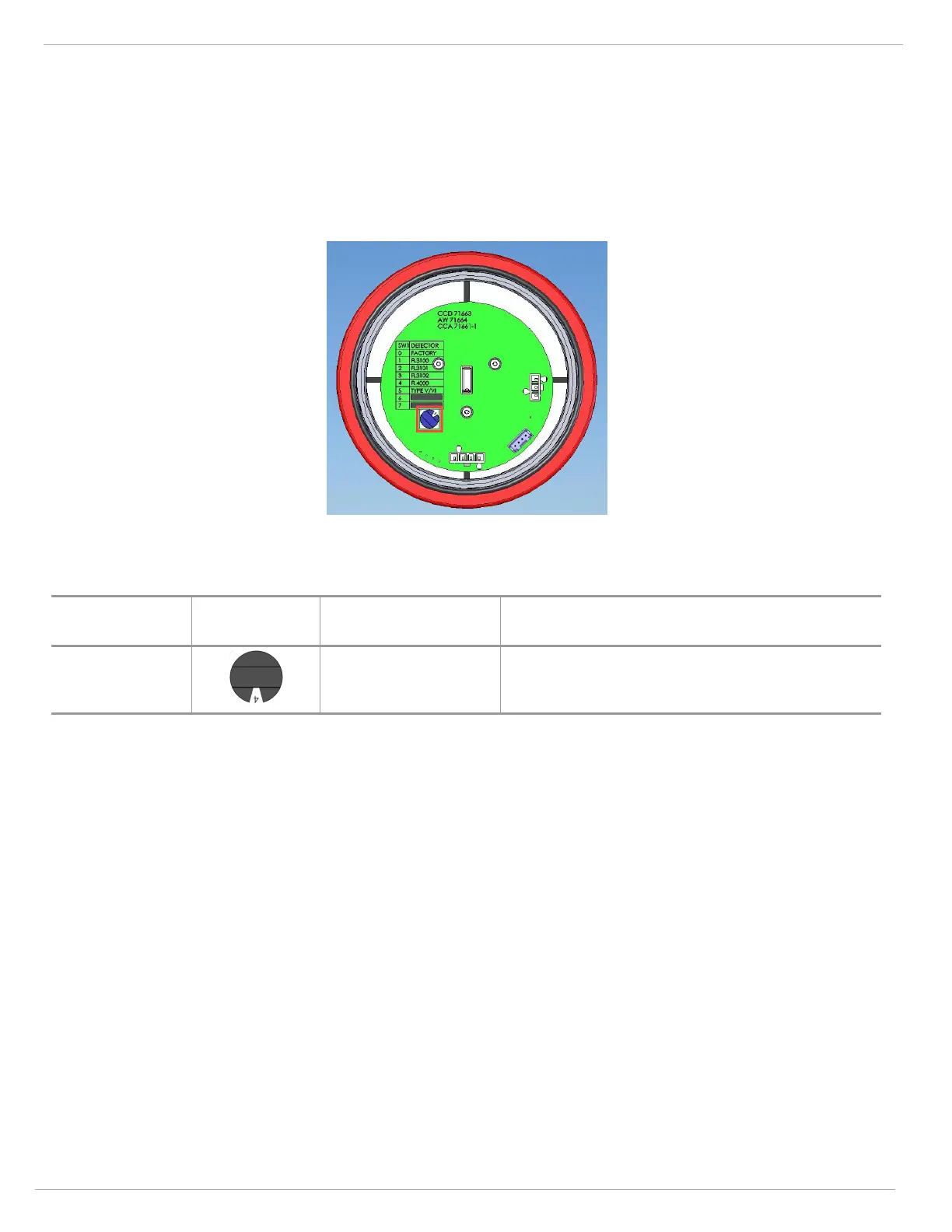

Figure 7 Functional BoardLocated Under TL105 Lamp Assembly
For FL5000, use position 4.
Flame Detector
to Test
Rotary Switch
Setting
Maximum Distance
to Detector (ft)
Results
FL4000H/FL5000
35 (High Sensitivity)
18 (Medium Sensitivity)
8 (Low Sensitivity)
FL4000H/FL5000 triggers into alarm mode
NOTE: Reference MANTL105 manual for additional information.
