„Version LIN” – indicator of voltage regulator protocol version (LIN1 or LIN2);
„Errors” - indicator of errors transmitted by the voltage regulator to the engine control unit. Types
of potential errors:
• E – electrical error;
• M – mechanical error;
• TH – thermal error.
„Speed” - indicator of data exchange rate under LIN protocol supported by a COM voltage
regulator. The following rate values may be displayed:
• „L” – 2400 baud (low);
• „M” – 9600 baud (medium);
• „H” – 19200 baud (high).
Figures 12-15 show the information displayed when different voltage regulator types are tested.
alternator voltage regulator

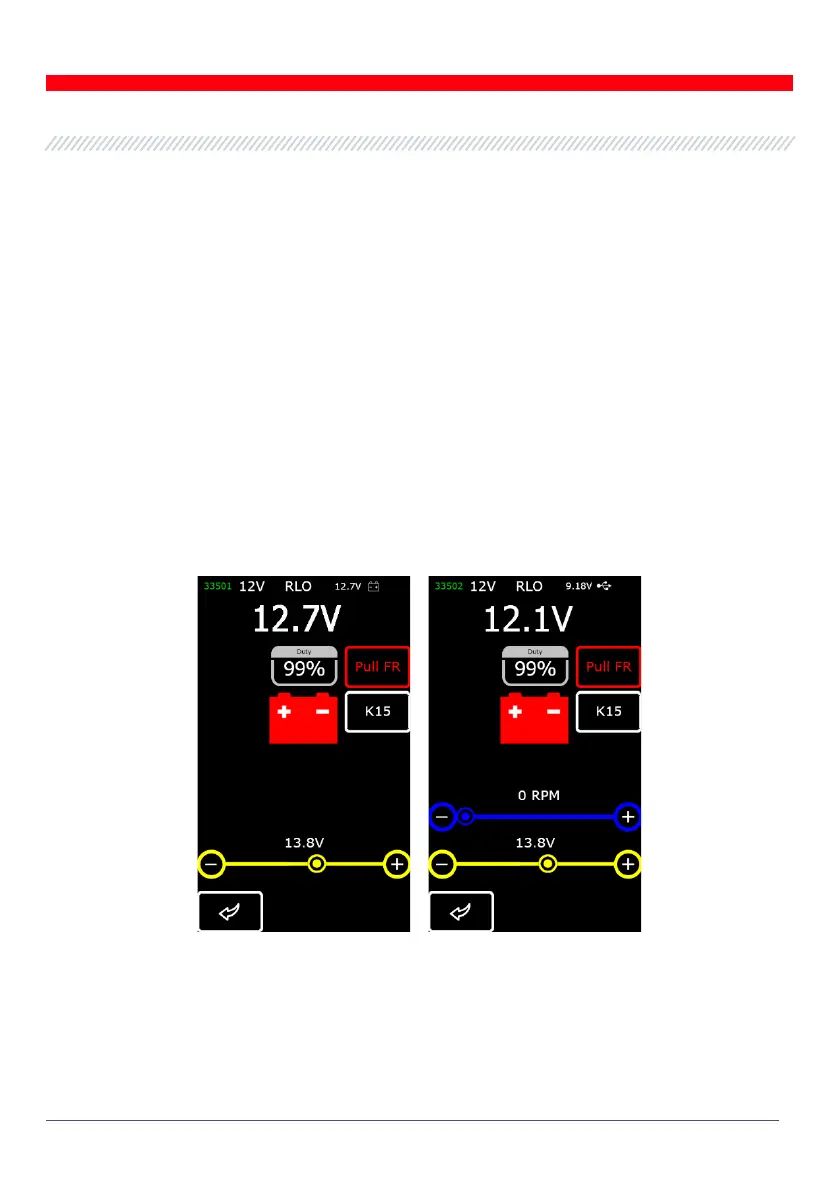

Figure 12 - Diagnostic screen for alternators/voltage regulators of RLO, RVC,
C KOREA types
