MST ImPact WAP User Manual

2.1 Pre-installation Planning
A site inspection of a mine is conducted by an MST System Engineer to determine network requirements
and design before installation.
The following factors affect the conguration of the network required:
• Wireless coverage requirements of the mine
• Quantity and type of wireless client devices connected to the network
• Wired client devices connected to the network and their location
• Interconnection to the mines existing corporate network
• Policies for network protocols between networks
• Cabling requirements
• Antenna types to use with each unit and mounting method for each antenna
• Mounting location and installation method for each network device.
For more information about considerations in system design, refer to the user manual for your ImPact
Wireless Network Switch.

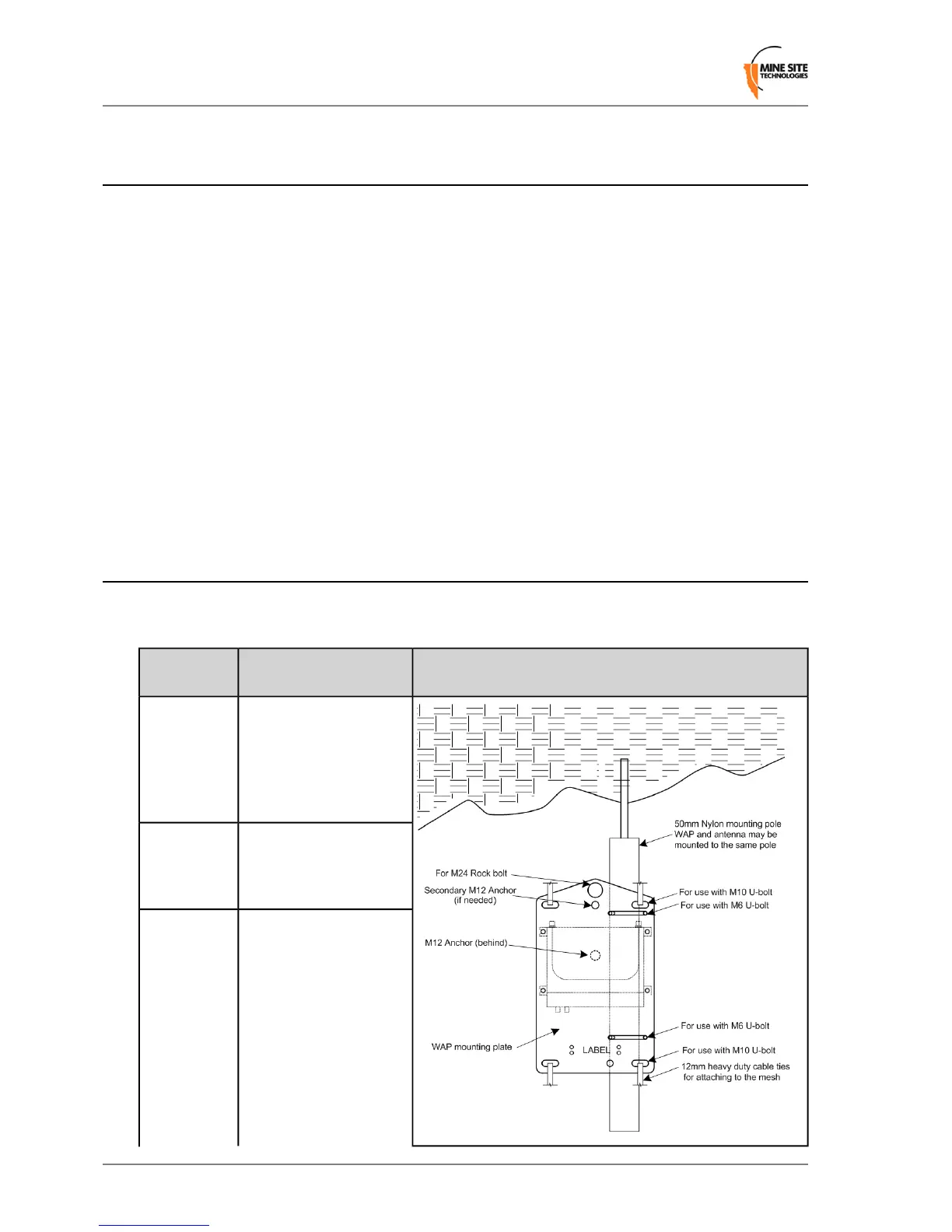

2.2 WAP Mounting
A WAP can be attached to a mounting plate with M6 nuts and bolts. The mounting plate allows various
mounting options as shown in the following table.
IllustrationDescriptionMounting
Option
The mounting plate has a
25mm hole for mounting
to a rock bolt in a mine.
The mounting plate is
secured to the rock bolt
with a 25mm nut.
Mounting the
WAP to a
rock bolt.
The four corner mounting
points on the mounting
plate can be cable-tied to
the mesh in a mine tunnel.
Mounting the
WAP to the
mesh.
Mounting the
WAP to the
mine roof.
1.
A WAP with a
mounting plate can be
mounted to a nylon
mounting pole using
M10 U-bolts.
2.
A threaded rod is
screwed into the nylon
pole.
3.
A hole is drilled into
the mine roof and the
WAP is secured into
Revision B16Wireless Access Point User Manual
Installation
