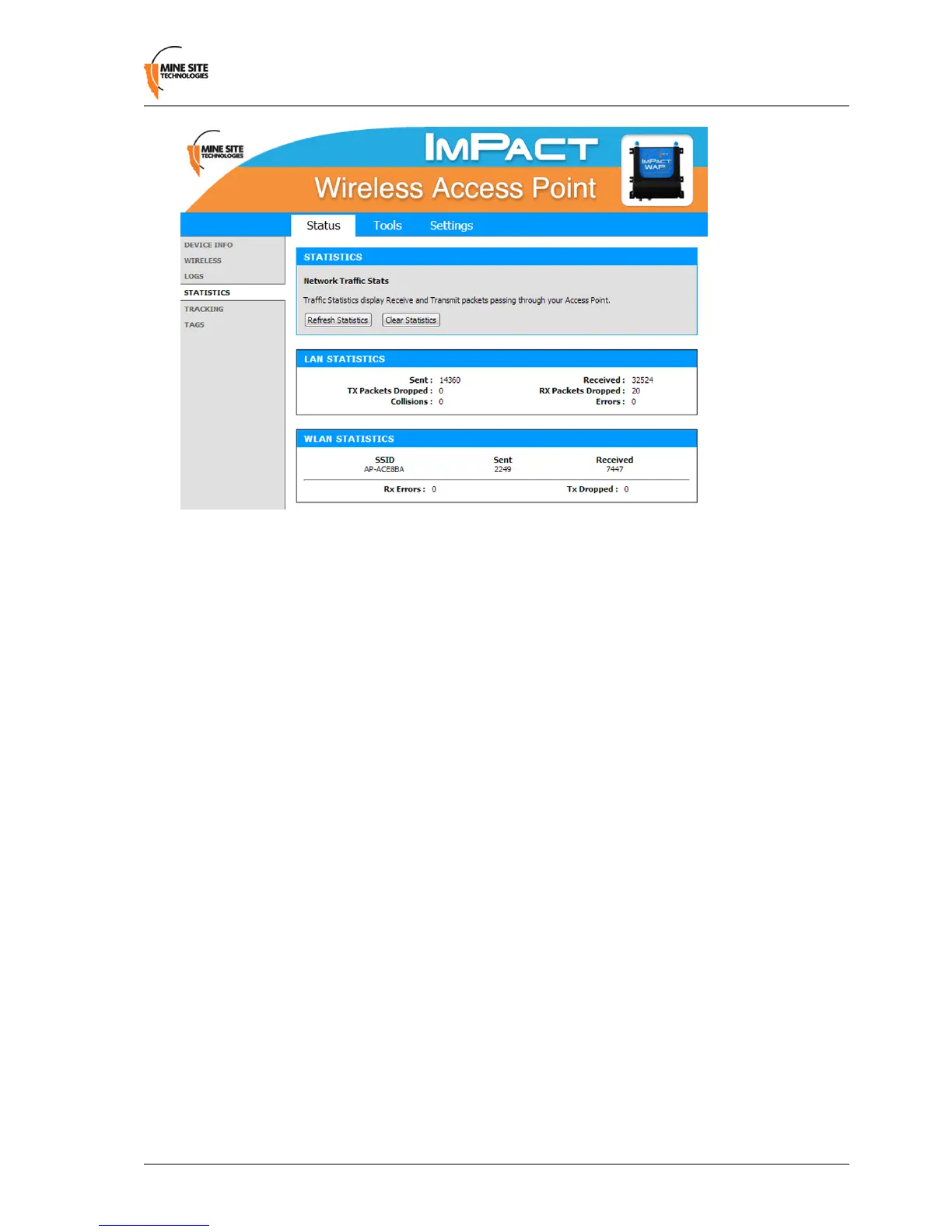

To view statistics:
1.
Click Refresh Statistics to update the statistics.
2.
Click Clear Statistics to clear displayed statistics. A reset conrmation dialog box is displayed.
3.
Click OK.
The following parameters are displayed:
LAN STATISTICS
Sent: The number of frames sent out from the device via all physical network interfaces (Ethernet
and Fibre).
Received: The number of frames received by the device via all physical network interfaces.
TX Packets Dropped: The number of frames dropped while being sent to the switch processor,
due to errors, collisions, or network switch resource limitation.
RX Packets Dropped: The number of frames dropped while being received from the switch
processor, due to errors, collisions, or network switch resource limitation.
Collisions: The number of frames dropped due to Ethernet collisions.
Errors: The number of transmission failures that caused the loss of a packet.
WLAN STATISTICS
SSID: The ID of the wireless network.
Sent: The number of frames sent out from the SSID.
Received: The number of frames received by the SSID.
Rx Errors: The number of frames dropped while being received.
Tx Dropped: The number of frames dropped while being sent.
3.3.5 Viewing Tracking Information
The Tracking status screen displays the status of the tracking servers that are registered to the network
device.
Wireless Access Point User Manual31Revision B
Conguration Using the Web Interface
