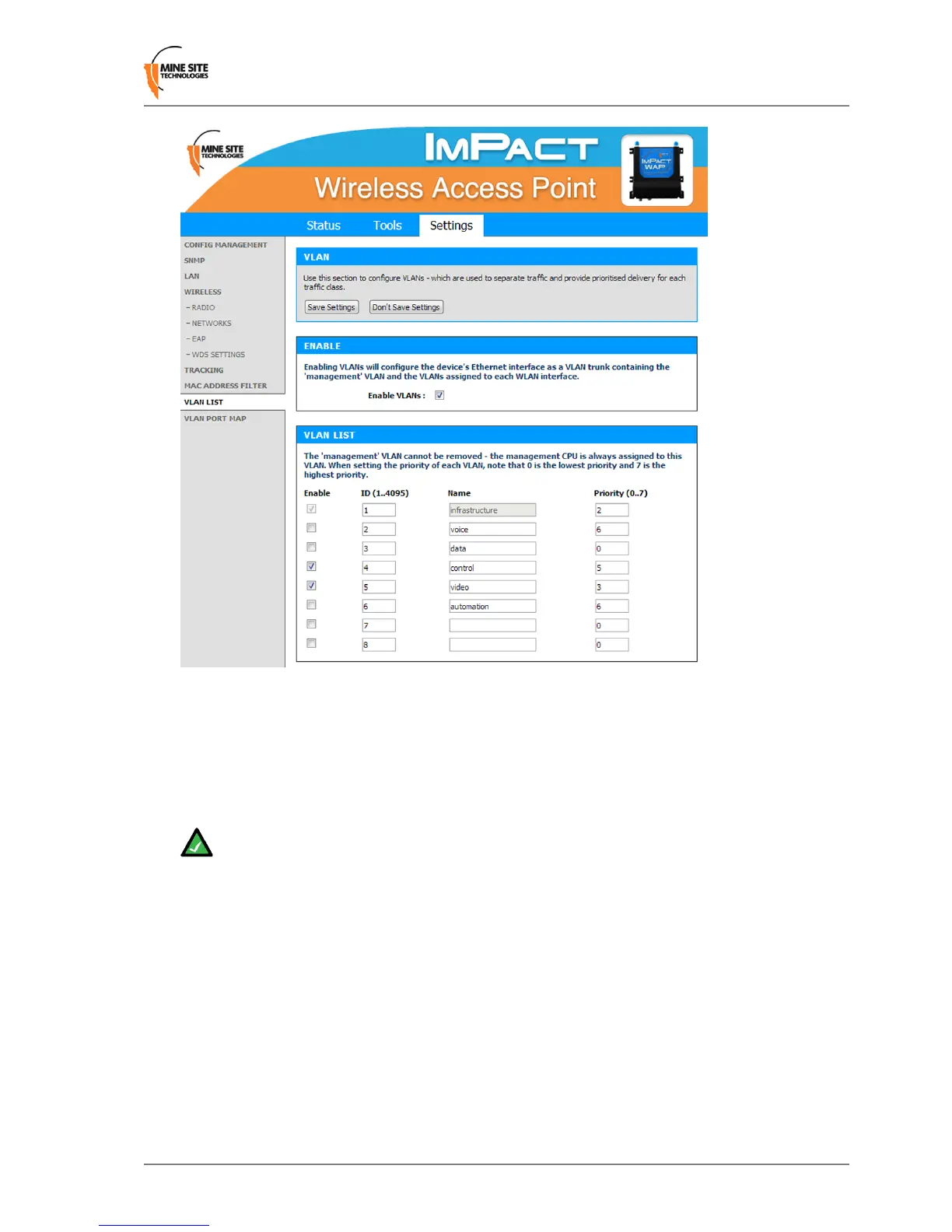

Up to 8 VLANs can be dened with the following parameters:
• Enable: Check box to enable the VLAN.
• ID: VLAN ID number that is tagged in frames sent through trunk ports.
• Name: VLAN name. It should be named to simplify administration.
• Priority: Priority ranges from 0-7 (7 being the highest priority) that is assigned to frames on this
VLAN.
Note: The rst VLAN (Infrastructure) cannot be disabled, because the management CPU is
always on this VLAN.
By default, VLANs are pre-dened with recommended IDs and priorities. This is based on commonly
used applications in mines. Once the VLANs are dened, they can be saved by clicking on the Save
Settings button.
After the VLANs have been dened, they can be assigned to the wireless networks and switch ports
(Network Switch only) on the VLAN PORT MAP screen.
3.5.11 Assigning VLANs to Wireless Networks
The VLAN Port Map screen enables a VLAN to be assigned to each wireless network (SSID).
Wireless Access Point User Manual53Revision B
Conguration Using the Web Interface
