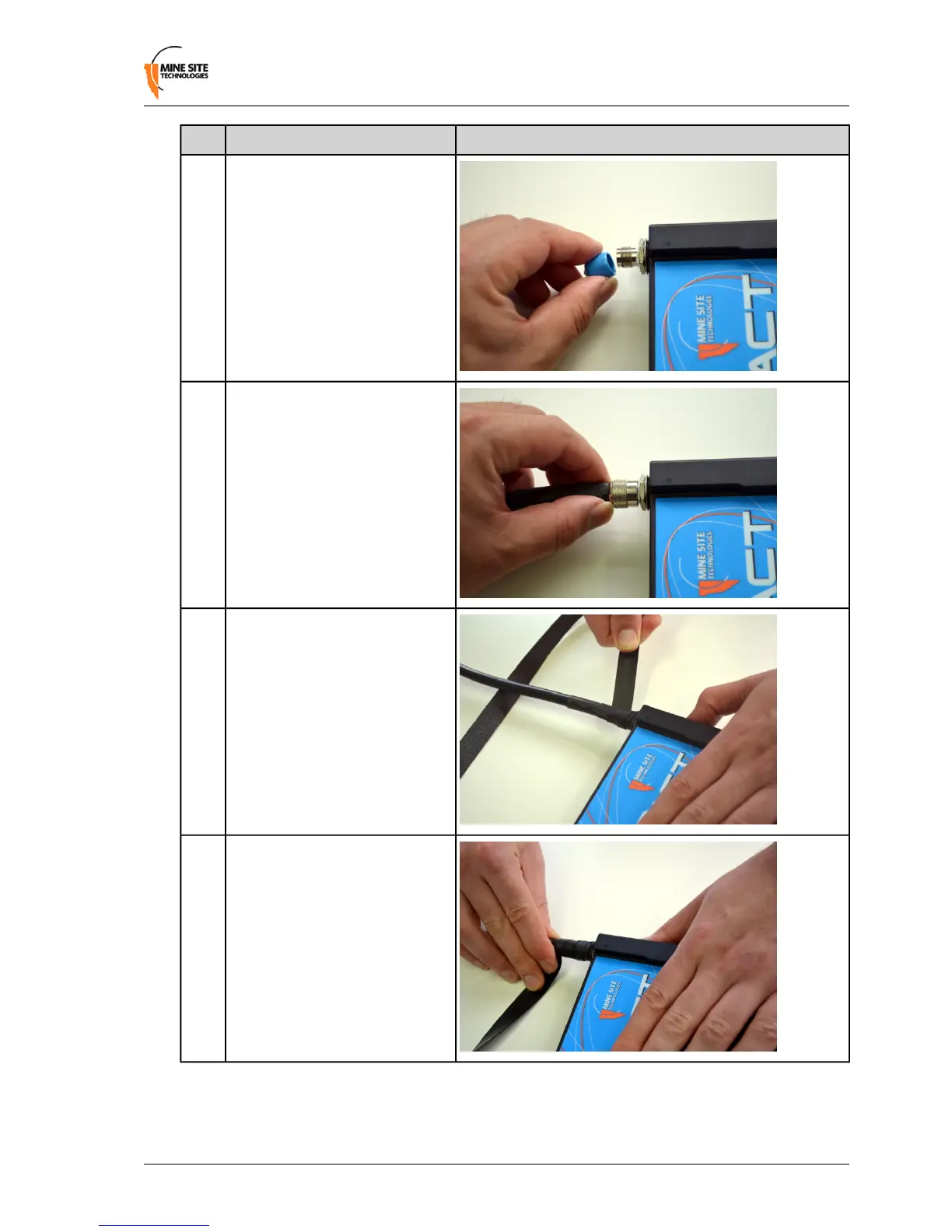

Illustration
Procedur
e
Step
Remove
the
protective
dust
cap
from
the
antenna
port.
1.
Connect
the
antenna
or
coaxial
cable
plug
to
the
RP-TNC
jack
on
the
W
AP
and
tighten
the
outer
sleeve.
2.
Insulate
the
connection
using
self-amalgamating
rubber
tape.
Start
at
the
base
of
the
connection
and
pull
back
the
rubber
tape
backing.
3.
Pull
the
tape
tightly
,
and
tape
around
the
connector
at
an
angle
until
it
is
25mm
past
the
end
of
the
connection.
4.
W
ireless
Access
Point
User
Manual
23
Revision
B
Installation
22
24
Table of Contents
Default Chapter
3
Table of Contents
3
Revision History
5
Contact Information
7
About this Manual
9
Chapter 1: Introduction
11
Hardware Overview
12
System Layout
13
Connectivity
14
Ethernet Port
14
Wireless Radio
14
Chapter 2: Installation
15
Pre-Installation Planning
16
WAP Mounting
16
Antenna Mounting Options
17
Examples of WAP Installation Schemes
18
Installation on Straight Drive
18
Wi-Fi Hotspot Installation
19
Ethernet Cable
20
Coaxial Cable
22
Chapter 3: Configuration Using the Web Interface
25
Logging Onto the Web Browser Interface
26
Configuration Screen
26
Status Tab
27
Obtaining Device Information
27
Wireless Client Information
28
Viewing System Logs
29
Viewing Network Traffic Statistics
30
Viewing Tracking Information
31
Viewing Recent Tag Reports
32
Tools Tab
33
Configuring Administrator and User Settings
33
Setting the Time
35
Rebooting or Restoring the Network Device
37
Upgrading Firmware
37
Settings Tab
40
Managing Automatic TFTP Configuration
40
Configuring SNMP Settings
40
Setting up the LAN
41
Configuring Wireless Radio
42
Configuring Wireless Networks
45
Configuring EAP (Extensible Authentication Protocol)
47
WDS (Wireless Distribution System) Settings
49
Configuring Asset Tracking and Location Based Services
49
Enabling the MAC Address Filter
51
Defining Vlans
52
Assigning Vlans to Wireless Networks
53
Chapter 4: Centralised Configuration Management
55
Device Management Overview
56
Site Configuration
56
AP Config Templates
56
Access Point
58
TFTP Server Overview
60
TFTP Parameters
61
Appendix A: Troubleshooting Guide
63
Appendix B: Using the Console Port to Supply Power
65
Appendix C: Ethernet Cable Specifications
67
Appendix D: Connecting a PC to an Impact Network Device
69
Appendix E: Device Discovery
73
Appendix F: Time Zone Indices and Offsets
75
Appendix G: Repairs and Maintenance
79
Appendix H: Acronyms
81
Appendix I: Hardware Warranty and Software License Agreement
83
Hardware Warranty
83
Software End User License Agreement
83
Appendix J: Specifications
87
