Discharge Chute and Controls (Joystick, Hex Shaft)
113
28. Set the housing on top of the Gear Set. Install the
four screws using a 5/16” wrench.Tighten the screws
to a torque of 20 - 30 in lbs (2 - 3 Nm). See Figure
10.22.
29. Install the Remote Head on the chute by following the
procedures described in the Discharge Chute (with
Remote Head) section of this chapter.
30. Route the Latch Cable through the oval-shaped hole
in the joystick housing. See Figure 10.23.
31. Seat the Cable Jacket End in the right grip housing.
32. Insert the tab of the trigger into the slot in the Cable
End. See Figure 10.24.
33. Set the trigger in the grip.
34. Place the other side of the grip on the side with the
cable and trigger.
35. Install the top screw.
36. Side the grip onto the lever.
37. Install the remaining screws.
38. Test run the snow thrower in a safe area before
returning it to service.

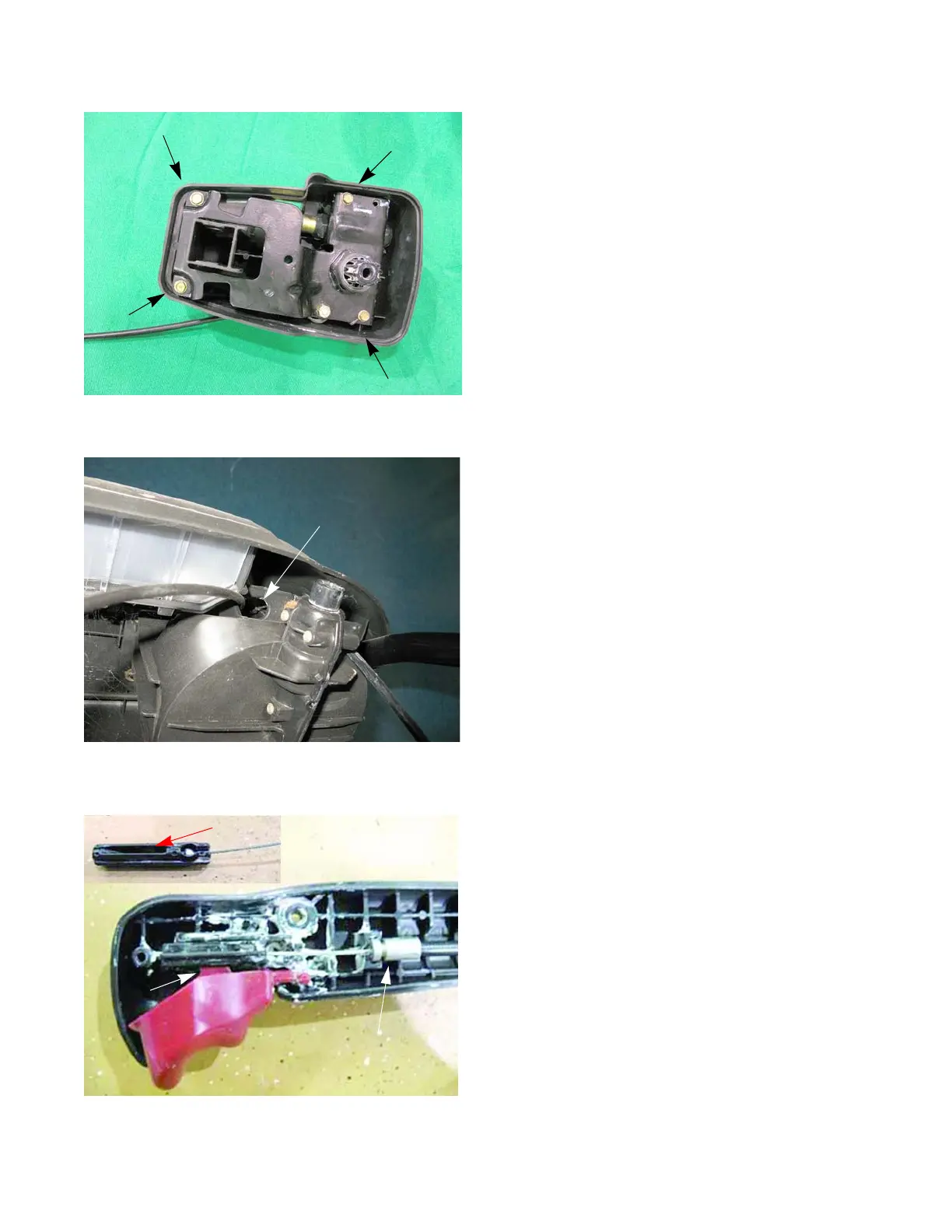

Figure 10.24
Slot
Tab
Cable Jacket End
