8.10 Air Intake
8.10.1 Service indicator – Signal ring position check
Preconditions
☑ Engine is stopped and starting disabled.
Checking signal ring position

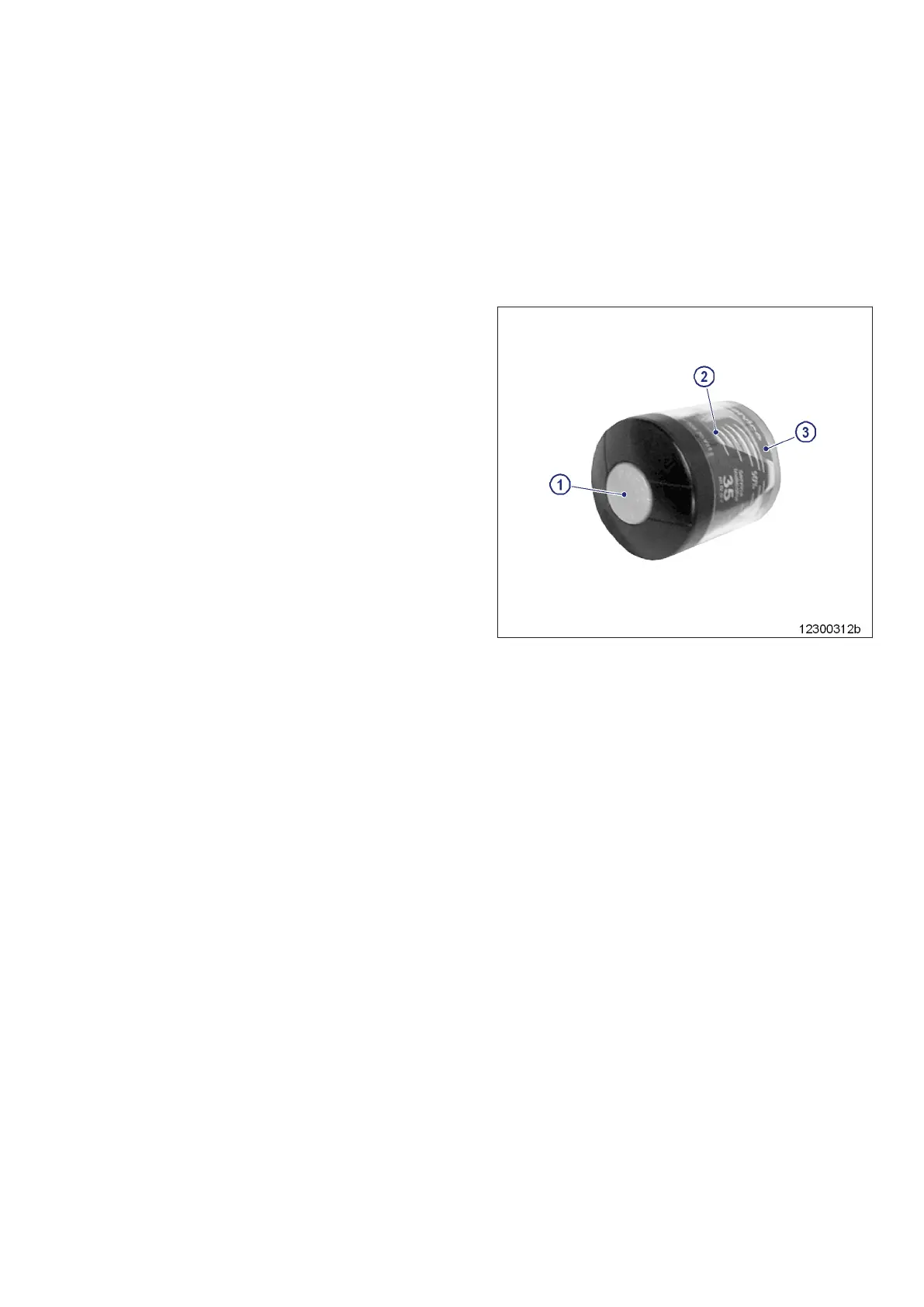

1. When the yellow piston (2) has reached the
red-shaded Service lettering (3), replace air
filter (→ Page 157).
2. After installation of new filter, press reset
button (1).
Result: Signal ring returns to initial position.
MS15054/03E 2018-07 | Air Intake | 159
TIM-ID: 0000076623 - 001
