7.2.2 Engine – Barring with starting system
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Connector pliers
F30017884 1
DANGER
Rotating and moving engine parts.
Risk of crushing, danger of parts of the body being caught or pulled in!
• Before barring the engine, make sure that there are no persons in the engine's danger zone.
• After finishing work on the engine, make sure that all safety devices are put back in place and all
tools are removed from the engine.
Engine – Barring with starting
system

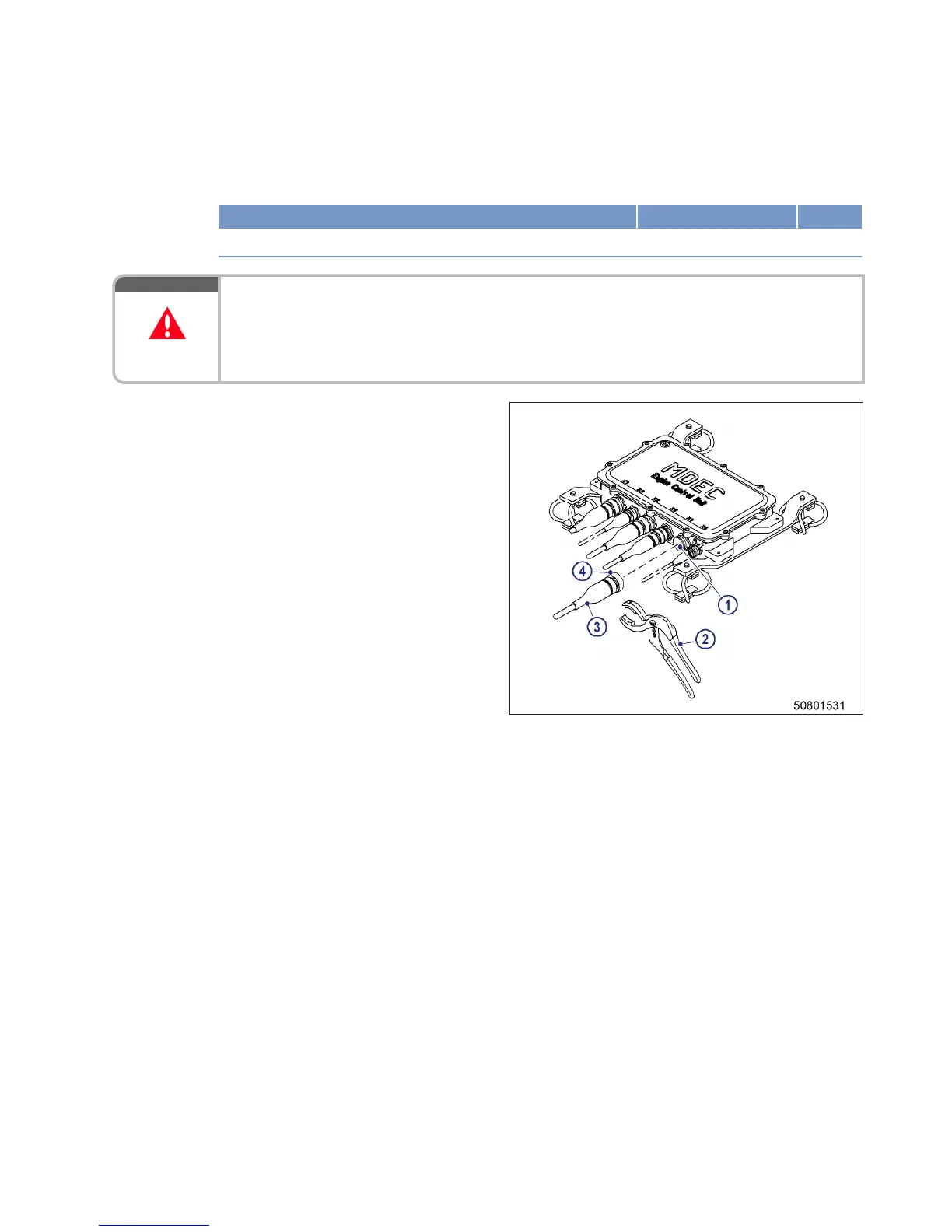

1. Disengage the bayonet coupling (4) of con-
nector X4 with connector pliers (2) and
withdraw connector (3) from engine gover-
nor.
2. Bar engine in unloaded condition: Press
START button.
3. Let the crankshaft rotate until oil pressure
is indicated.
4. Engine start is automatically interrupted
when specified starting period is expired. If
necessary, re-start the engine after approx.
20 seconds.
5. Plug connector X4 (3) and use connector
pliers (2) to secure the bayonet cou-
pling (4) by turning it clockwise until it
latches into place.
MW15406/17E 2014-05 | Task Description | 147
