7.23.2 Engine monitoring unit and connectors – Cleaning
Preconditions
☑Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Connector pliers
F30017884 1
Isopropyl alcohol
X00058037 1
Engine monitoring unit and con-
nectors – Cleaning
1. Remove coarse dirt from housing surface
with isopropyl alcohol.

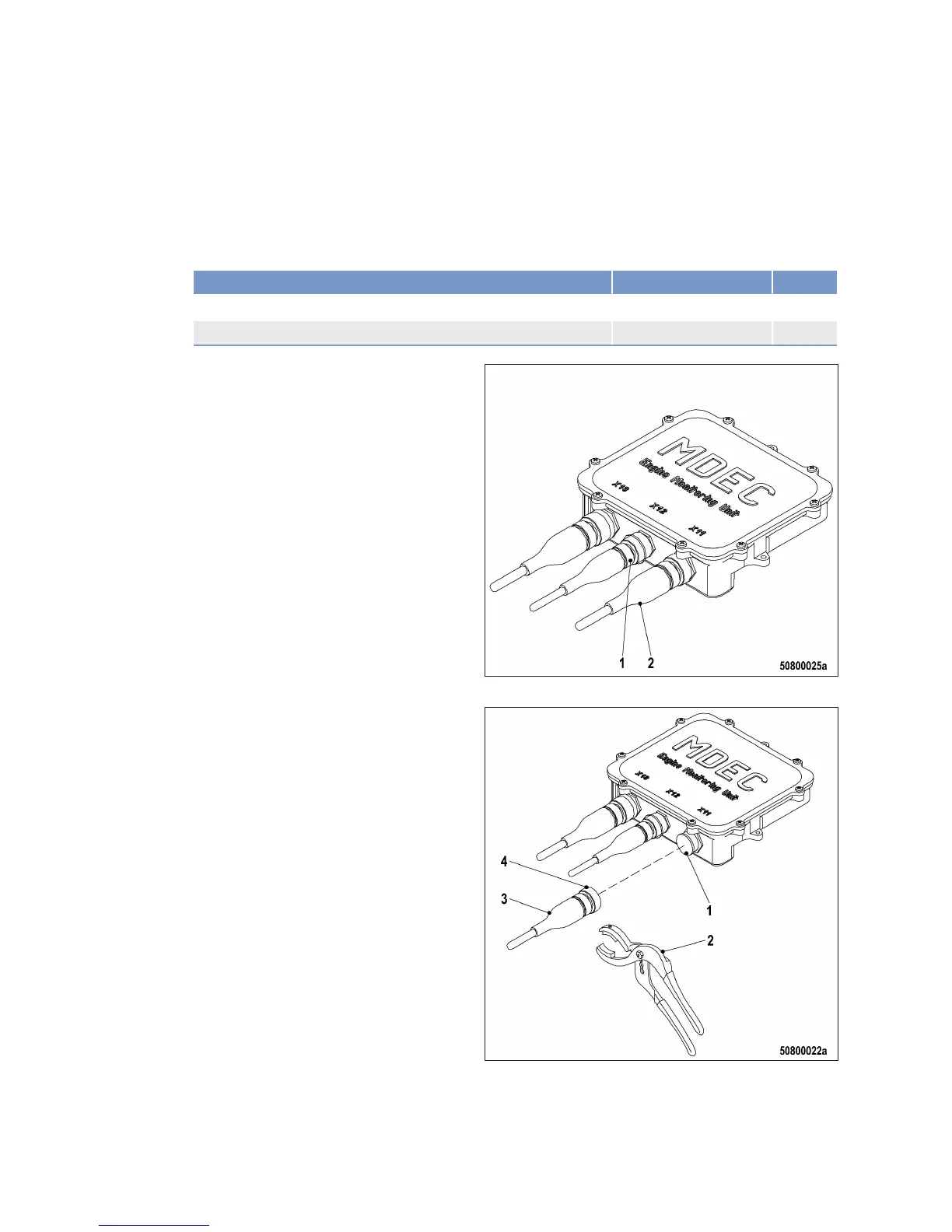

2. Remove dirt from surface of connec-
tors (1), connector sockets and shrink
sleeves (2) using a cloth moistened with
isopropyl alcohol.
3. Check legibility of cable labels. Clean or re-
place illegible labels.
Cleaning severely contaminated
EMU connectors
1. Use connector pliers (2) to disengage bayo-
net union nut (4) and withdraw connec-
tor (3).
2. Clean connector housings, connector sock-
et housings (1) and all contacts with iso-
propyl alcohol.
3. When connectors, sockets and all contacts
are dry: Fit connectors and check plug con-
nections on EMU (→ Page 219).
