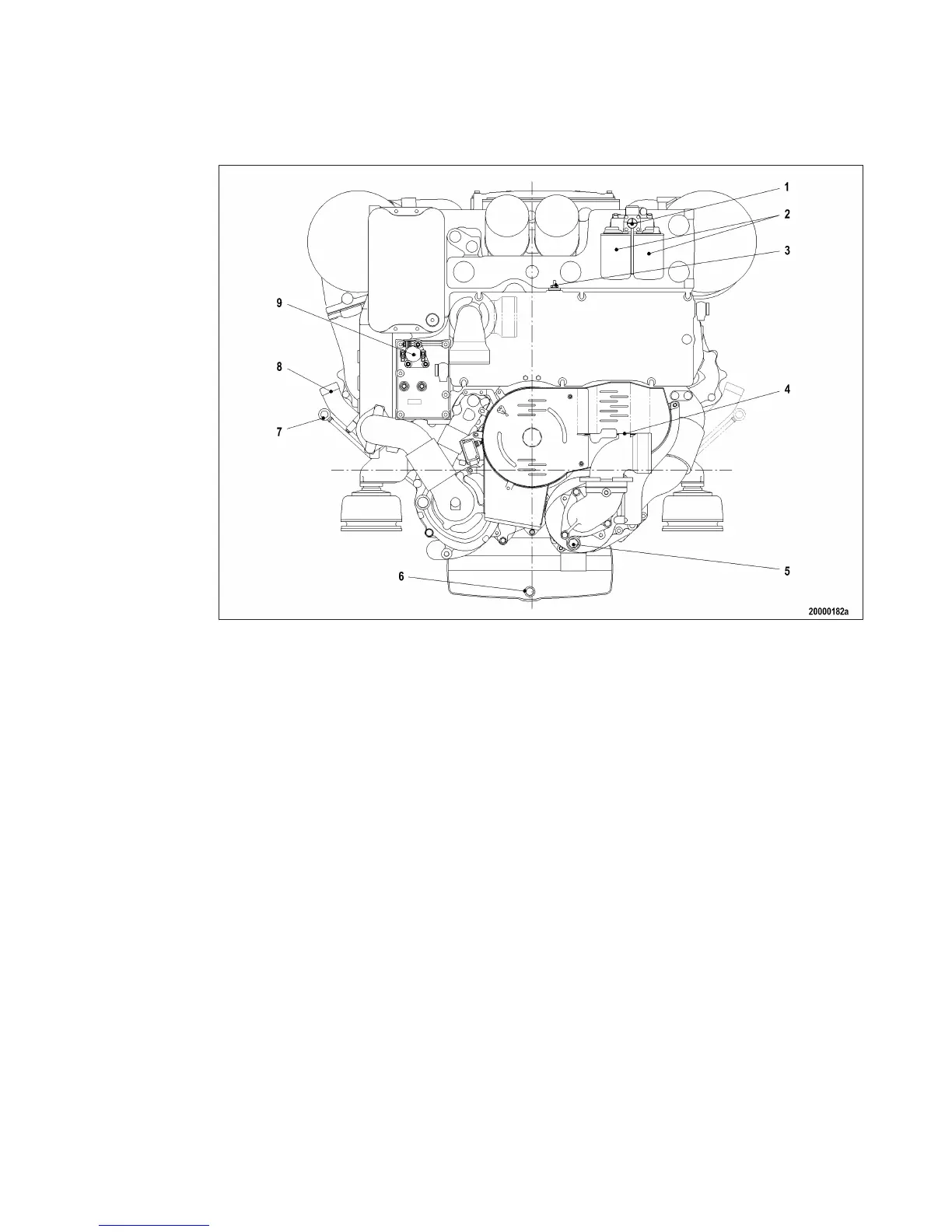

Free end (KGS)
1 Three-way cock
2 Fuel filter
3 Fuel vent valve
4 Raw water pump filling
plug
5 Raw water pump drain
plug
6 Connection for oil extrac-
tion
7 Oil dipstick (connection
left or right engine side op-
tional)
8 Oil filler neck (connection
left or right engine side op-
tional)
9 Fuel priming pump
MW15406/17E 2014-05 | Task Description | 197
