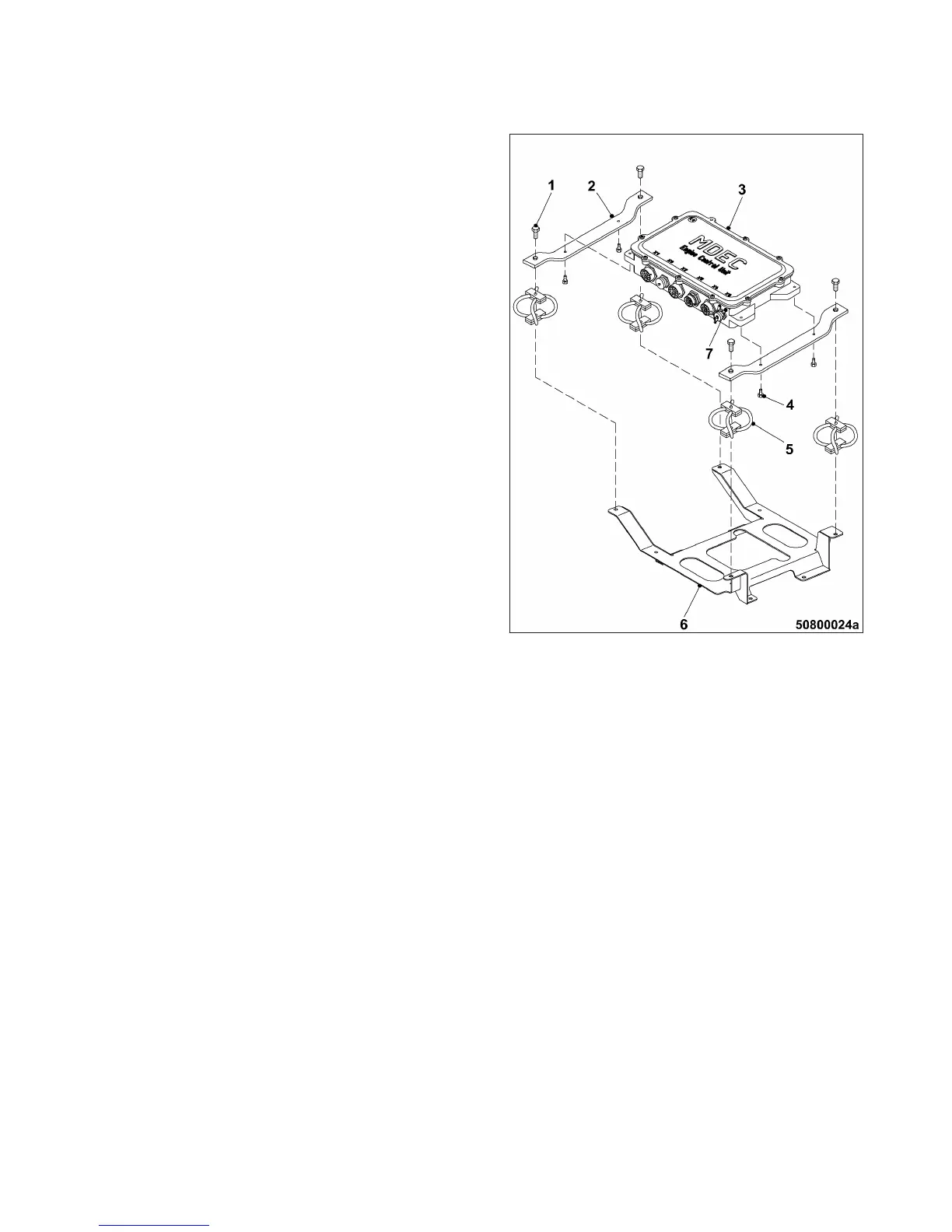

5. Disconnect ground strap from engine gov-
ernor grounding stud (7).
6. If the screws (4) are easily accessible:
1. Screw off screws (4).
2. Remove engine governor housing (3)
from mounting brackets (2).
3. Unscrew mounting brackets (2), cable
shock absorbers (5) and further secur-
ing parts (6) as one unit from engine.
7. If the screws (4) are not easily accessible:
1. Remove screws (1).
2. Remove engine governor housing (3)
together with mounting brackets (2).
3. Unscrew cable shock absorbers (5) and
further securing parts (6) as one unit
from engine.
Installing engine governor on engine
1. Install in reverse order. Ensure correct assignment of plugs and sockets.
2. Use connector pliers to turn the bayonet union nuts of the connectors clockwise until they latch into
place.
MW15406/17E 2014-05 | Task Description | 221
TIM-ID: 0000008487 - 005
