User Manual

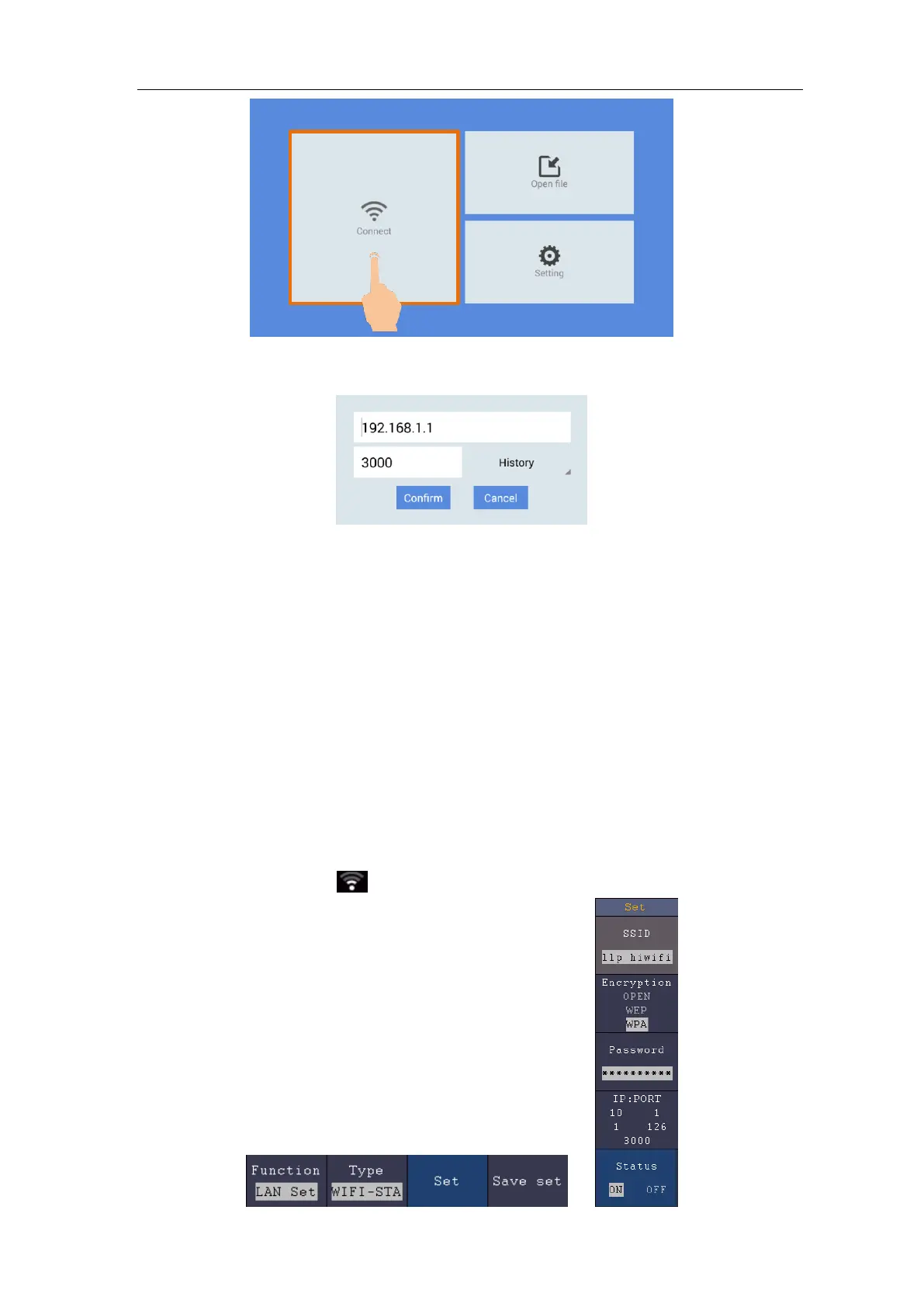

(10) Set IP and Port to the same value as the setting in the oscilloscope. Click Confirm
to connect. Click History to recall the history settings.
Connect with APP as Wi-Fi Station
(1) In the oscilloscope, push the Utility button. Select Function in the bottom menu.
Select LAN Set in the left menu. In the bottom menu, set the Type item as
WIFI-STA, and select Set in the bottom menu.
(2) In the right menu, select SSID, a keyboard will pop up. Input the name of the Wi-Fi
hotspot. You can turn and push the M rotary control, or touch the keyboard (if the
LCD is touchscreen).
(3) In the right menu, select Encryption, push to set the Encryption type of the Wi-Fi
hotspot. Open type needs no password. WEP or WPA type need to input the
password. In the right menu, select Password, use the keyboard to input the Wi-Fi
hotspot password.
(4) In the right menu, select IP:PORT, Turn the M rotary control to set the PORT.
(5) After setting, select ON in the Status menu. The value of IP is displayed in IP:PORT
menu. A changing icon
appears on the top right of the screen.
