User Manual
Counter

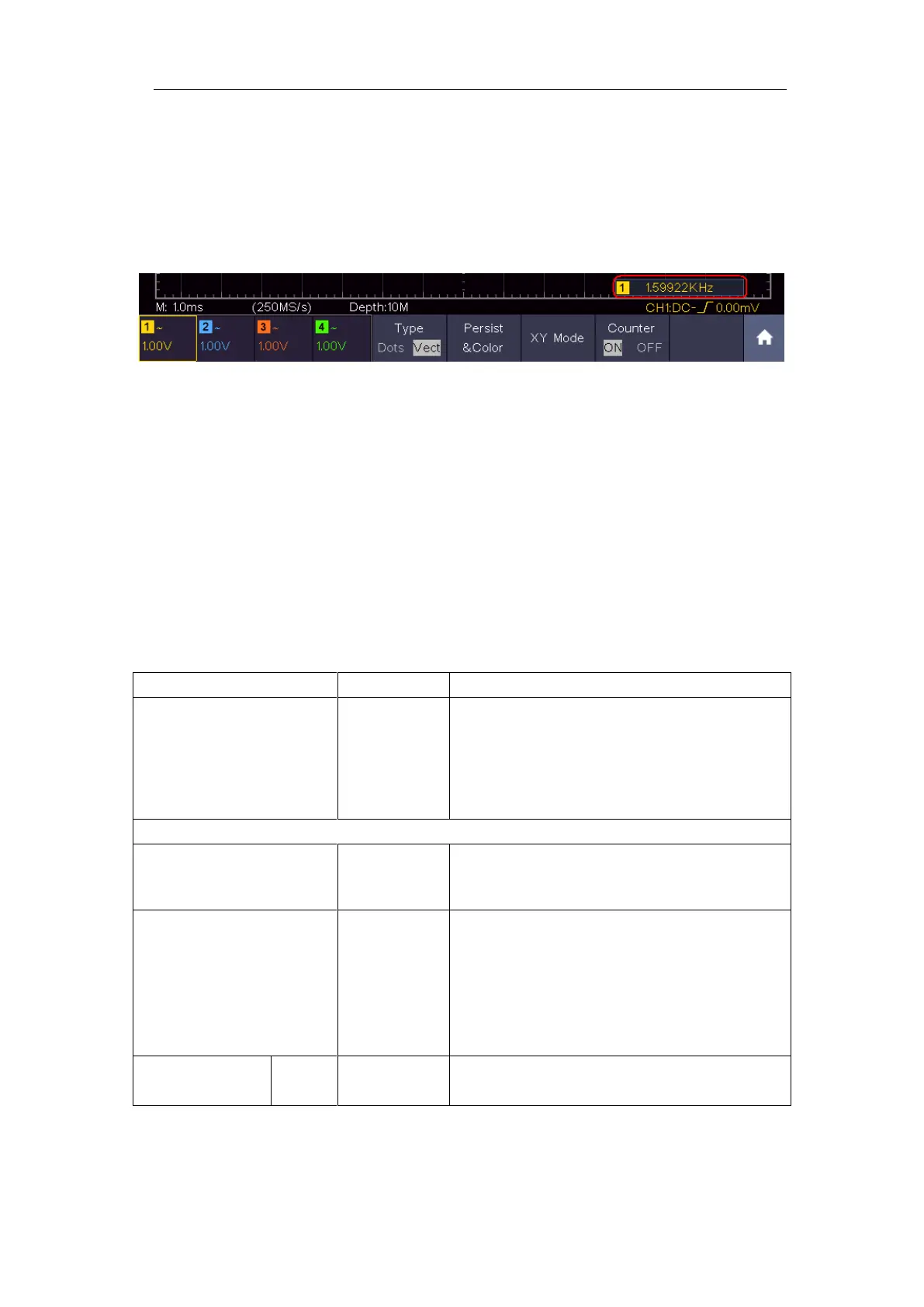

It is a 6-digit single-channel counter. The counter can only measure the frequency of
the triggering channel. The frequency range is from 2Hz to the full bandwidth. Only if
the measured channel is in Edge mode of Single trigger type, the counter can be
enabled. The counter is displayed at the right bottom of the screen.
Operation steps:
1. Push Trigger Menu button, set the trigger type to Single, set the trigger mode to
Edge, select the signal source.
2. Push the Display button.
3. Select Counter as ON or OFF in the bottom menu.
How to Save and Recall a Waveform
Push the Save button, you can save the waveforms, configures, screen images, record
or clone the waveform.
The description of the Save Function Menu is shown as the following table:
Wave
Configure
Record
Clone
Choose the saving type.
About the Record type, see "How to
Record/Playback Waveforms" on P72.
About the Clone type, see “How to Clone
and Recall a waveform” on P76.
When the type is Wave, the menu shows as following:
For internal storage, only BIN can be
selected. For external storage, the format
can be BIN, TXT or CSV.
CH1
CH2
CH3
CH4
Math
(or MathFFT)
Check the waveform to be saved. (If
certain channel is off, the corresponding
menu item will be disabled.)
Choose the address which the waveform is
saved to or recall from.
To Next Page
