User Manual

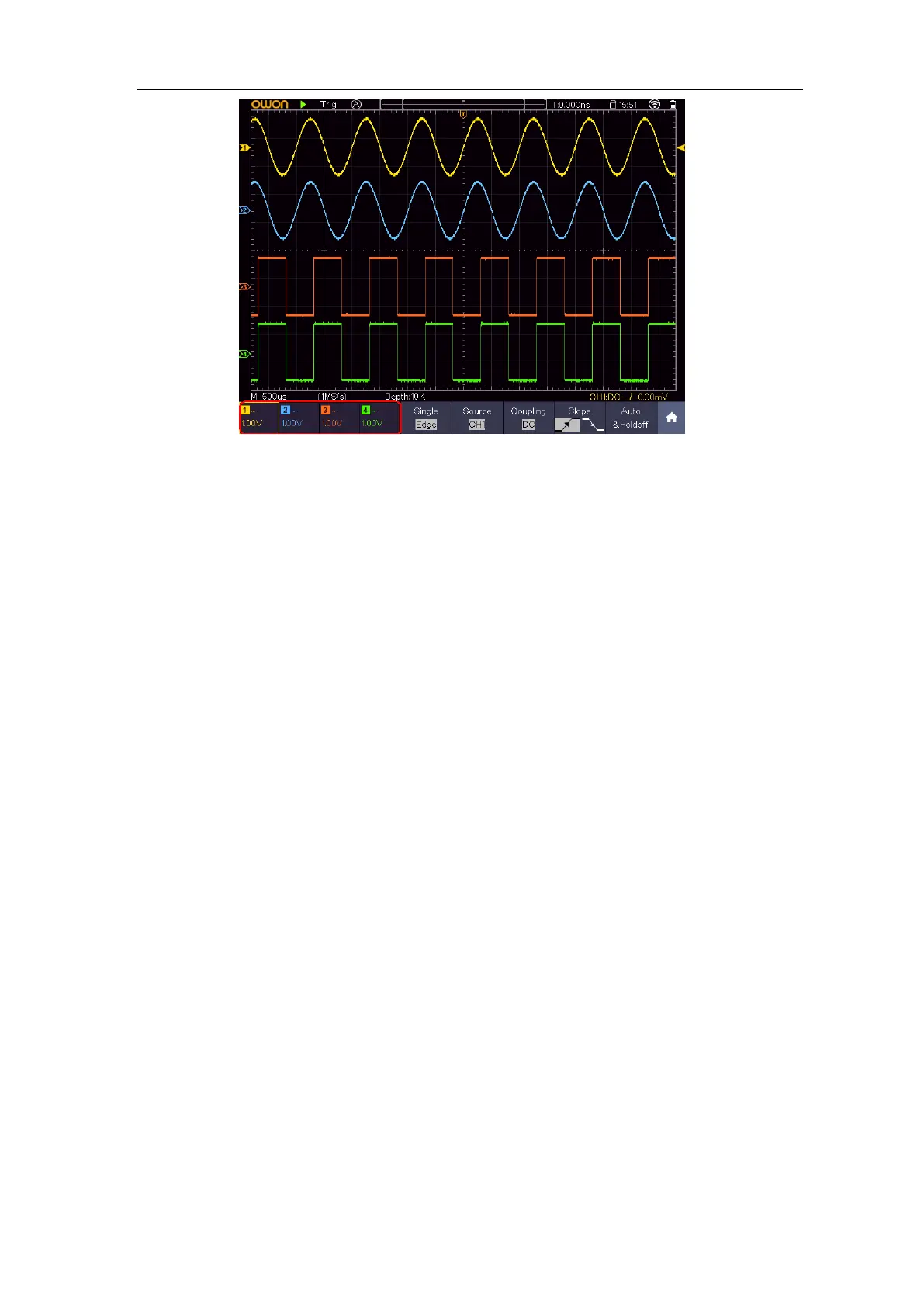

Figure 4-7 Information about Vertical Scale
How to Set the Horizontal System
Horizontal control system includes Horizontal HOR key, Horizontal Position
rotary control and Horizontal Scale rotary control.
Horizontal Position rotary control: Adjust the horizontal positions of all
channels (including mathematical operations). The resolution of this rotary
control changes with the time base.
Horizontal Scale rotary control: Adjust the horizontal scale of waveform.
Horizontal HOR key: Switch between the normal mode and the waveform
zooming mode. When the magnifier is turned off, the waveform is magnified in
the horizontal direction; when the magnifier is turned on, it can be magnified
both horizontally and vertically.
Waveform Horizontal Zooming
Press the Horizontal HOR button, when the magnifier menu is off, enter the
waveform horizontal zooming mode. The upper part of the display shows the
main window and the lower part shows the horizontally zoomed window. The
horizontal zoom window is the horizontally enlarged portion of the selected
area in the main window.
