User Manual
Set idle time before the edge counting in Nth Edge
Trigger. Adjust M rotary control or click to set
idle time press panel button or click
to move cursor to choose which digit to be set.
Available range is 30ns-10s, default 100ns.
Set the edge number value of “N” in Nth Edge trigger.
Auto
Normal
Single
Holdoff
Reset
Acquire waveform even no trigger occurred
Acquire waveform when trigger occurred
When trigger occurs, acquire one waveform then stop
100 ns - 10 s, adjust M rotary control or click to
set time interval before another trigger occur, press
panel button or click move cursor
to choose which digit to be set.
Set Holdoff time as 100 ns
Logic Trigger
Trigger according to logic relation.

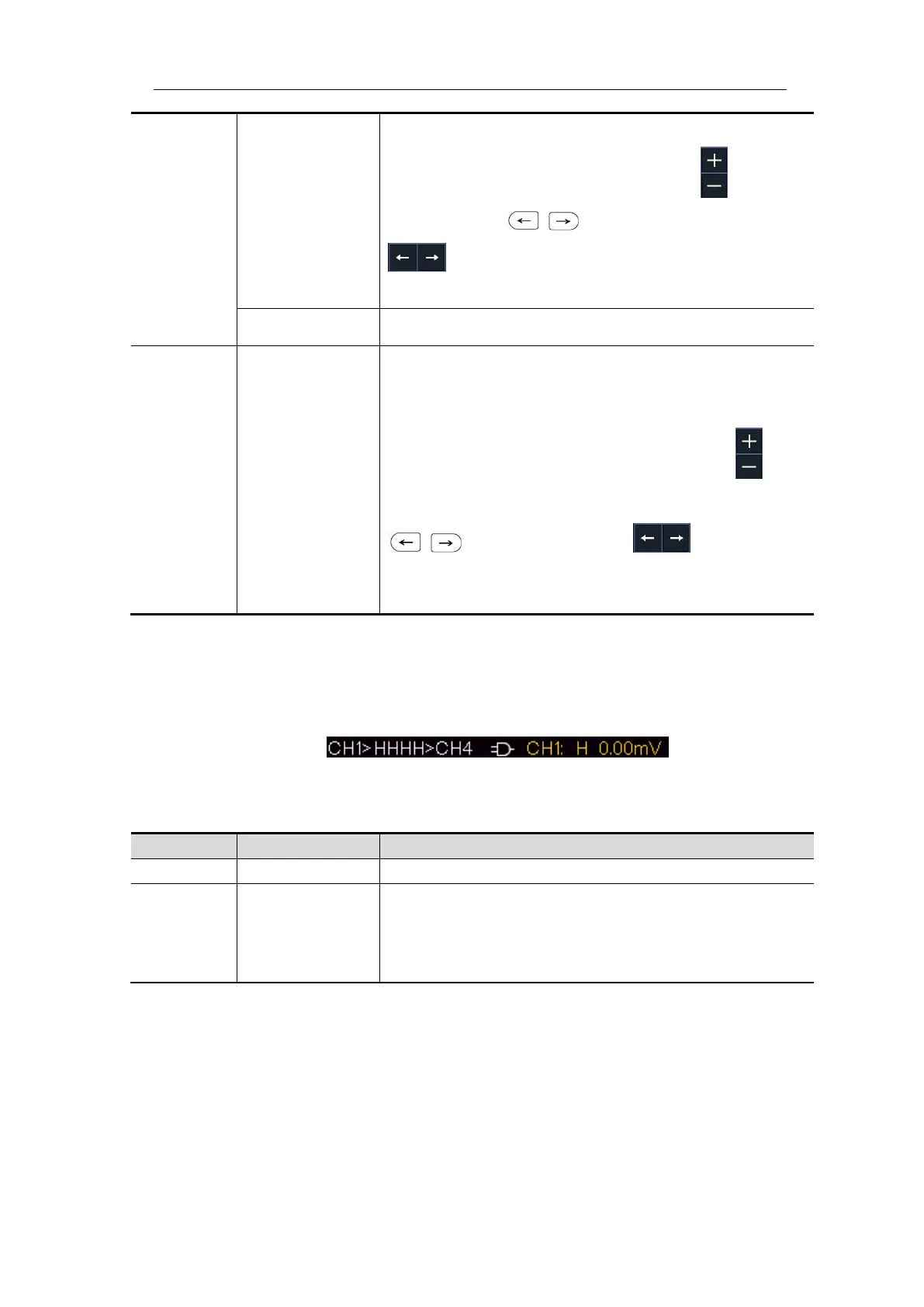

In Logic Trigger mode, the trigger setting information is displayed on bottom right of
the screen, for example,
，indicates that
trigger type is Logic, logic mode is AND, CH1 high level and trigger level is 0.00mV.
Logic Trigger menu list:
Set vertical channel trigger type as Logic trigger.
Set logic mode as AND.
Set logic mode as OR.
Set logic mode as XNOR.
Set logic mode as XOR.
To Next Page
