If a USB device is connected, and you want to save the waveform to it, select
Memory in the right menu as USB. The instrument lists a directory of the folders and
files on the USB memory device. Select a folder or file using the M rotary control to
scroll up and down the list. To enter the current folder, select Change Dir in the right
menu, select it again to return to the upper directory.

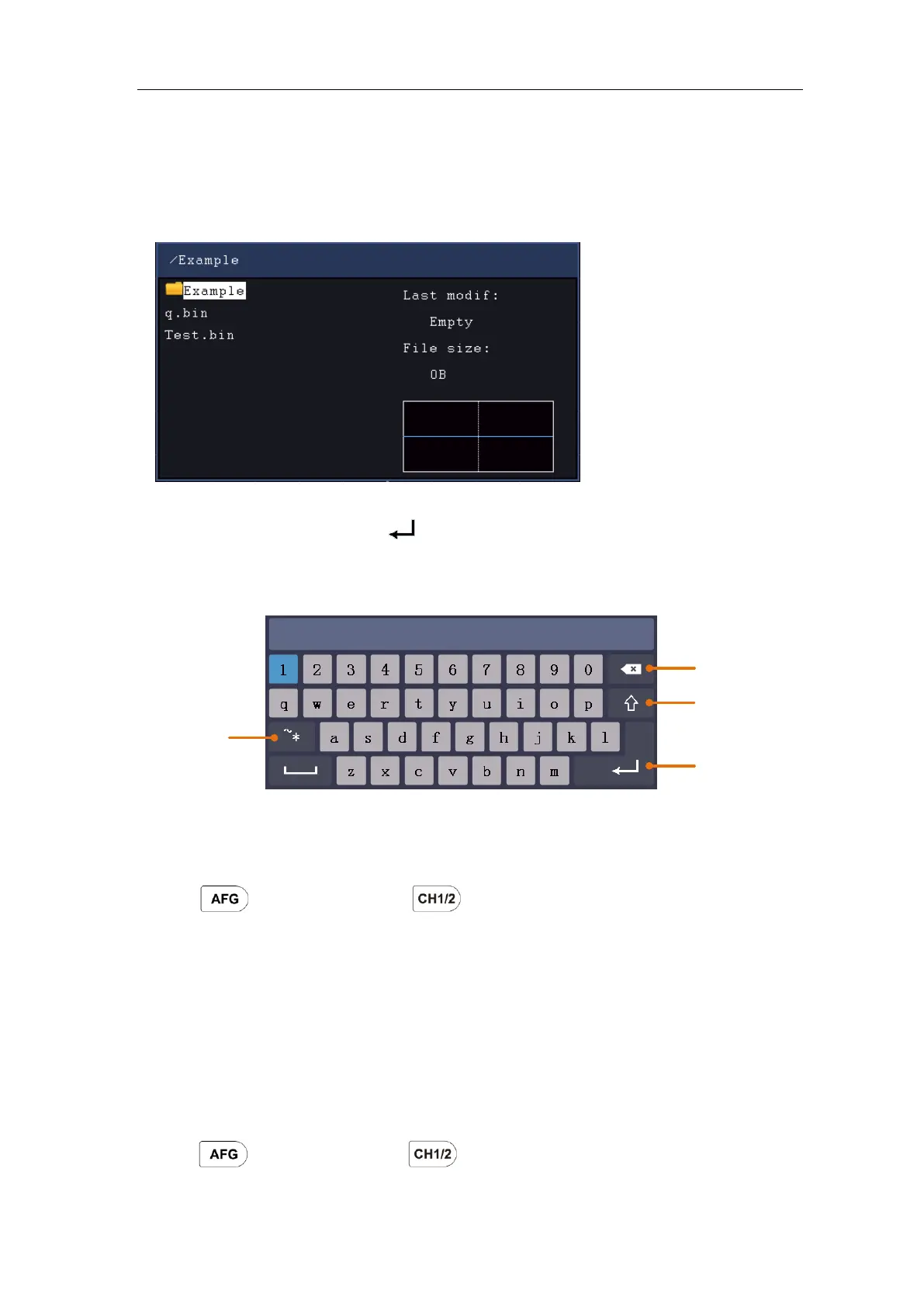

Enter the desired storage path, select Save in the right menu, an input keyboard pops
up, input the file name, choose
in the keyboard to confirm
. The waveform is saved
as BIN file in the folder.
Note: The input length can have up to 35 characters.
Confirm
Clear
Switch the case
Switch to
symbol
keyboard
File Browse
To read a waveform stored in internal storage or USB device:
(1) Push (single-channel) or (dual-channel) button. Select Arb in the
bottom menu, select Others in the right menu, and select File Browse.
(2) Select the desired waveform file in internal storage (FLASH) or USB device
(USBDEVICE).
(3) Select Read in the right menu.
Built-in Waveform
There are 46 built-in Arbitrary waveforms.
Steps for selecting the built-in waveform:
(1) Push (single-channel) or (dual-channel) button to show the bottom
menu of generator.
To Next Page
