Introduction to the Horizontal System
Shown as Figure 3-11, there are a button and two rotary controls in the Horizontal
Controls. The following practices will gradually direct you to be familiar with the
setting of horizontal time base.

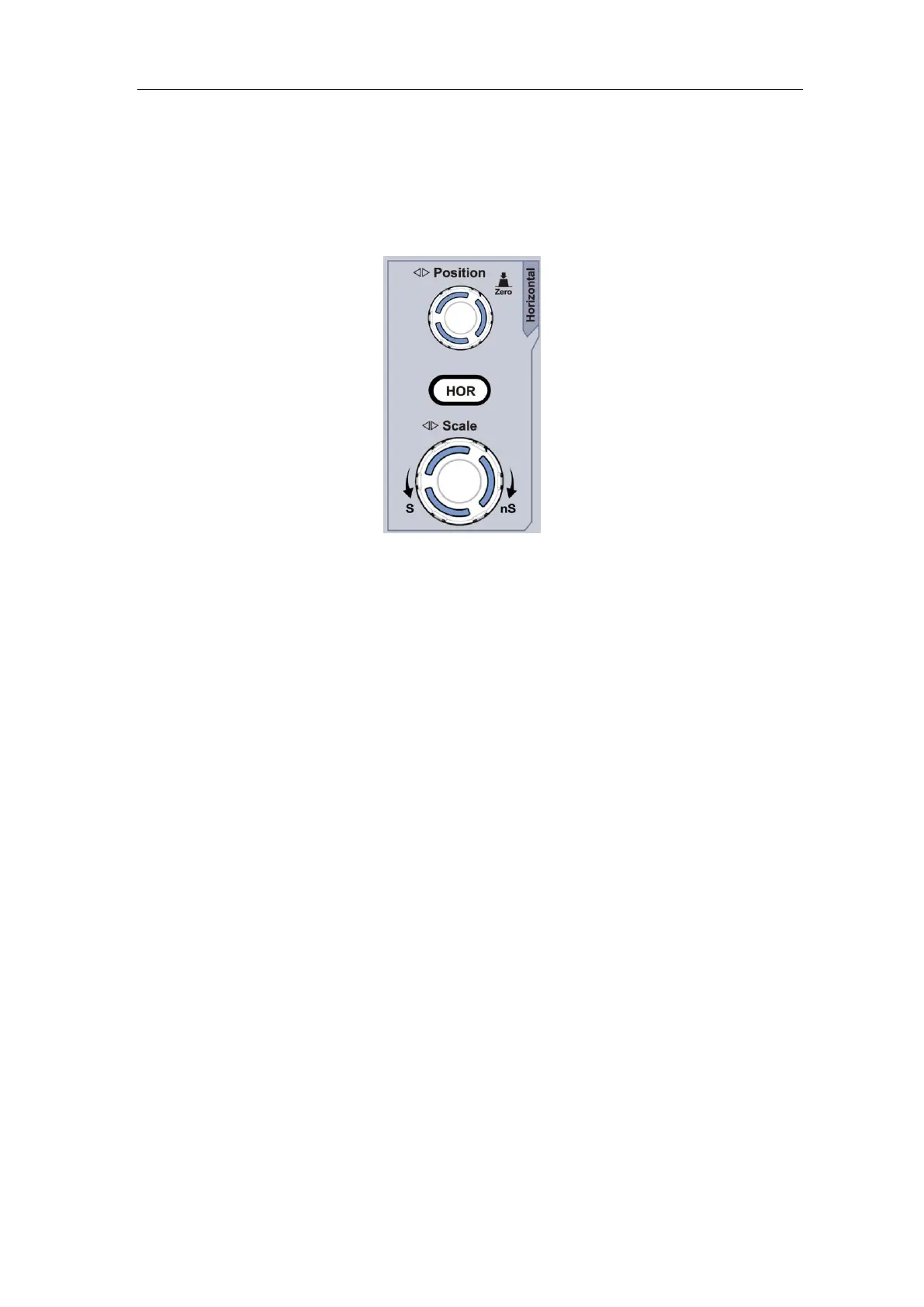

Figure 3-11 Horizontal Control Zone
1. Turn the Horizontal Scale rotary control to change the horizontal time base
setting and observe the consequent status information change. Turn the
Horizontal Scale rotary control to change the horizontal time base, and it can be
found that the Horizontal Time Base displayed in the status bar changes
accordingly.
2. Use the Horizontal Position rotary control to adjust the horizontal position of the
signal in the waveform window. The Horizontal Position rotary control is used
to control the triggering displacement of the signal or for other special
applications. If it is applied to triggering the displacement, it can be observed that
the waveform moves horizontally with the rotary control when you rotate the
Horizontal Position rotary control.
Triggering displacement back to 0 shortcut key
Turn the Horizontal Position rotary control to change the horizontal position of
channel and push the Horizontal Position rotary control to set the triggering
displacement back to 0 as a shortcut key.
3. Push the Horizontal HOR button to switch between the normal mode and the
wave zoom mode.
Introduction to the Trigger System
As shown in Figure 3-12, there are one rotary control and three buttons make up
Trigger Controls. The following practices will direct you to be familiar with the
setting of the trigger system gradually.
