User Manual
specified time.

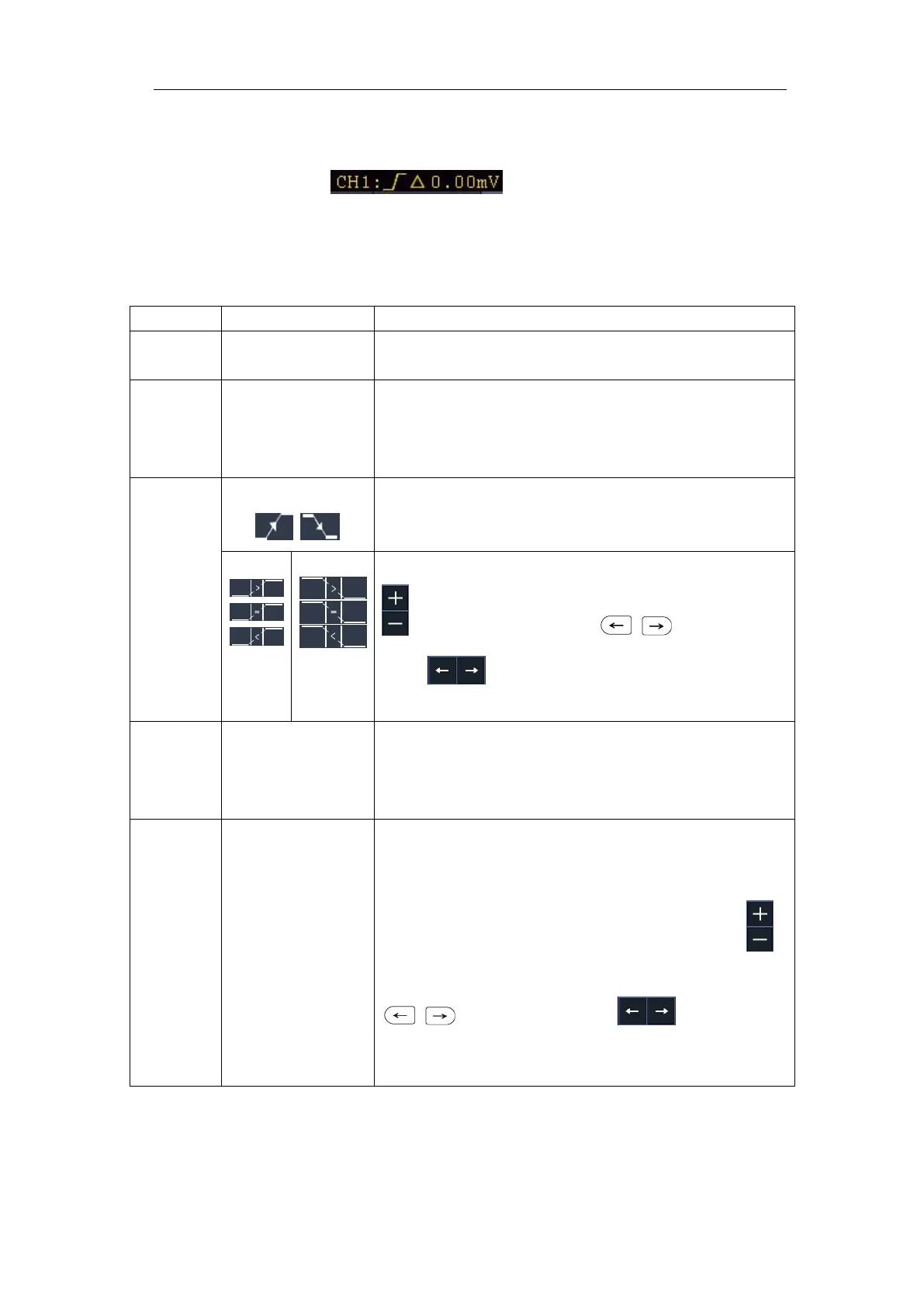

In Slope Trigger mode, the trigger setting information is displayed on bottom right of
the screen, for example, ，indicates that trigger type is slope,
trigger source is CH1, slope is rising, 0.00mV is the differential between up level and
low level threshold.
Slope trigger menu list:
Set vertical channel trigger type as slope trigger.
Select CH1 as the trigger source
Select CH2 as the trigger source
Select CH3 as the trigger source
Select CH4 as the trigger source
Set slope condition; turn the M rotary control or click
to set slope time, press panel button or
click to move cursor to choose which digit
to be set.
High level
Low level
Slew rate
Adjust M rotary control to set the High level upper
limit.
Adjust M rotary control to set Low level lower limit.
Slew rate = (High level - Low level) / Settings
Auto
Normal
Single
Holdoff
Reset
Acquire waveform even no trigger occurred
Acquire waveform when trigger occurred
When trigger occurs, acquire one waveform then stop
100 ns – 10 s, turn the M rotary control or click
to set time interval before another trigger occur, press
panel button or click to move
cursor to choose which digit to be set.
Set Holdoff time as 100 ns
To Next Page
