Section 1 General Information

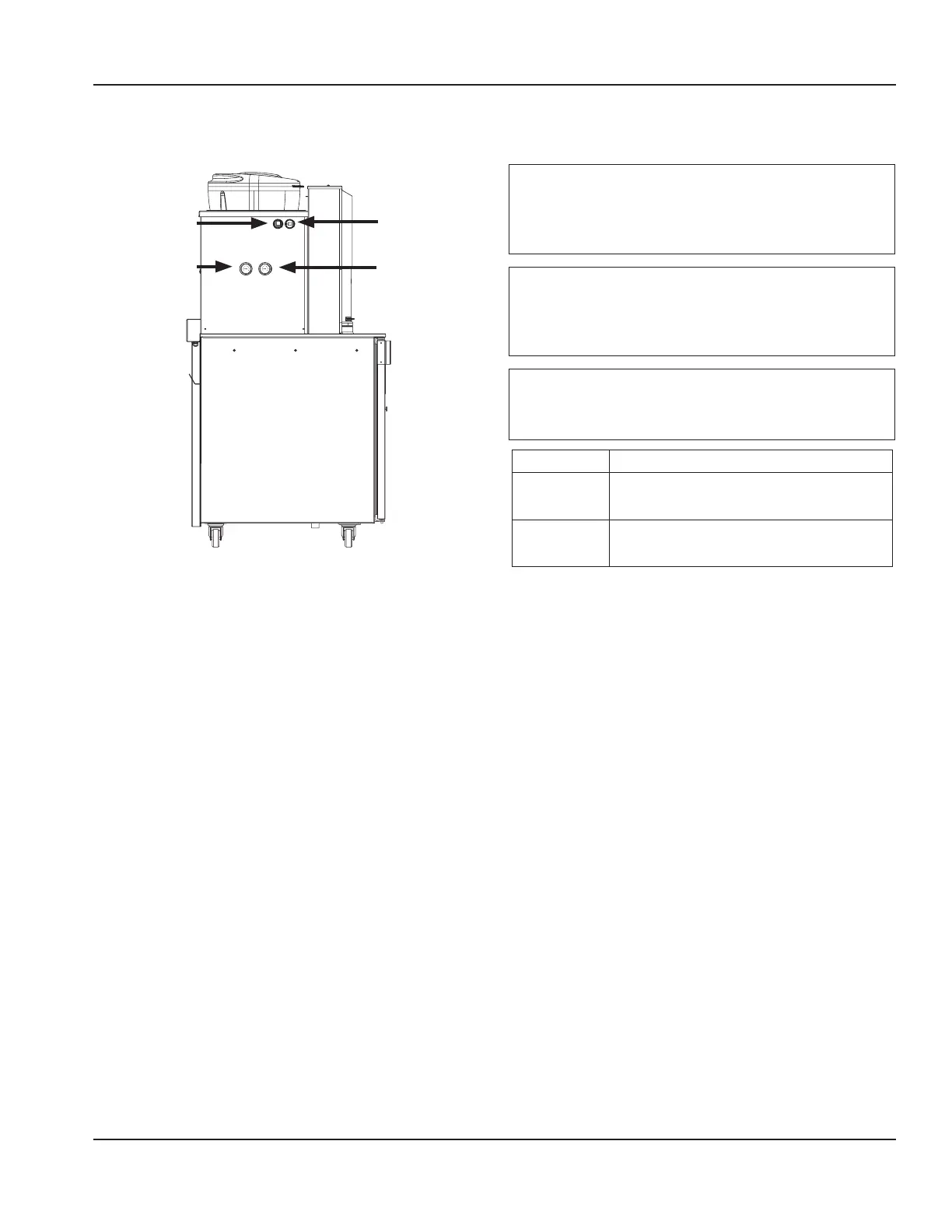

REGULATOR SETTINGS & LOCATION
Air/CO2 (Pumps)
Regulator
35 psi (0.24 MPa,
241 kPa, 2.41 bar)
Plain Water
Regulator
35 psi (0.24 MPa,
241 kPa, 2.41 bar)
ON/OFF
Switch
USB Port
Regulator Settings
Important
Air/CO
2
Requires the pressure measurement to be taken
only when a product pump is being activated (product
pump during flow conditions).
Important
Water requires the pressure measurement to be taken
only when rinse water is spraying (flowing conditions)
in a blender chamber.
Important
Water pressure affects the blender area cleaning, a
water booster may be required if pressure is too low.
REGULATOR SETTINGS (During Flowing Conditions)
Pumps
Air / CO
2
35 psi
(0.24 MPa, 241 kPa, 2.41 bar)
Plain Water
35 psi
(0.24 MPa, 241 kPa, 2.41 bar)
DRAIN CONNECTIONS
• Connect supplied 1” ID hose to hose-barb connection
on machine.
• Drain lines must have a 1.5 inch drop per 5 feet of run
(2.5 cm per meter), and must not create traps.
• The floor drain must be large enough to accommodate
drainage from all drains.
• An air gap is included in the design of the machine for
back flow prevention. Plumb to local code.
