PAGE 32 — RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL S/N 3069933~ — REV. #0 (11/29/23)

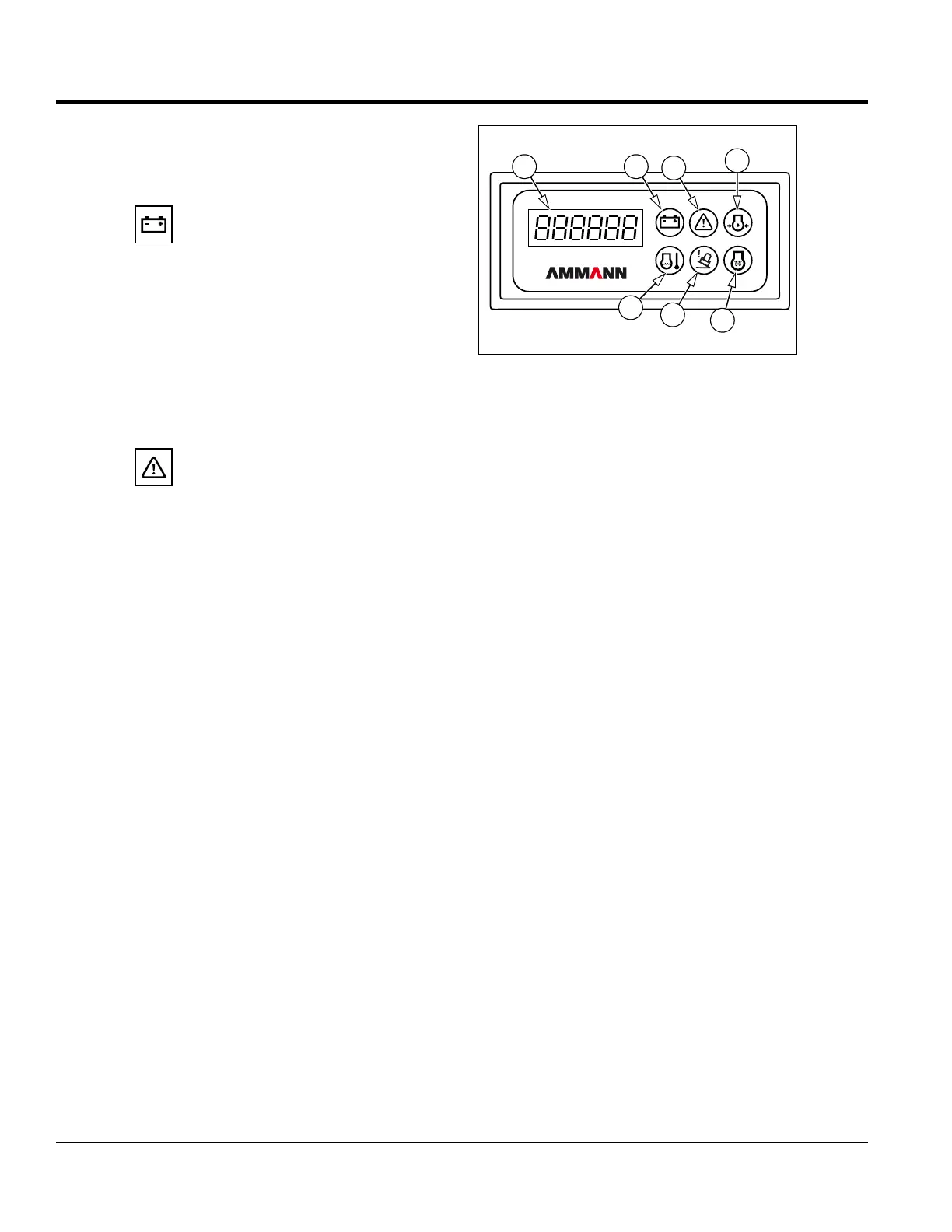

DISPLAY UNIT LAMPS
41RAMMAX 1575
hours
557057
1 2
3
4
5
6
7
OPERATION MANUAL
2.6.1 Display unit
Operating hours counter (1)
2777
Control lamp for battery charge level (charge
control) (2)
The pilot lamp lights up after the key in the switch box is
switched in position „I“ and goes out after the engine starts. If
the pilot lamp lights up during operation or does not go o after
starting, carry out the following check immediately.
• Stop the engine.
• Check the engine for defective or loose V-belt.
If the battery charging lamp is still on after you have carriedpout
out this check, contact Ammann authorized service.
AMN58
Control lamp functions (3)
The Error control lamp lights as soon as the controller recog-
nizes an error.
The tilt sensor is activated. The compactor is in position with the
angle exceeding 45°. Put the machine into vertical position.
Electric installation fault. Check the electric installation for short
circuit or broken cable.
If the fault lamp is still on after you have carriedpout out this
check, contact Ammann authorized service.
