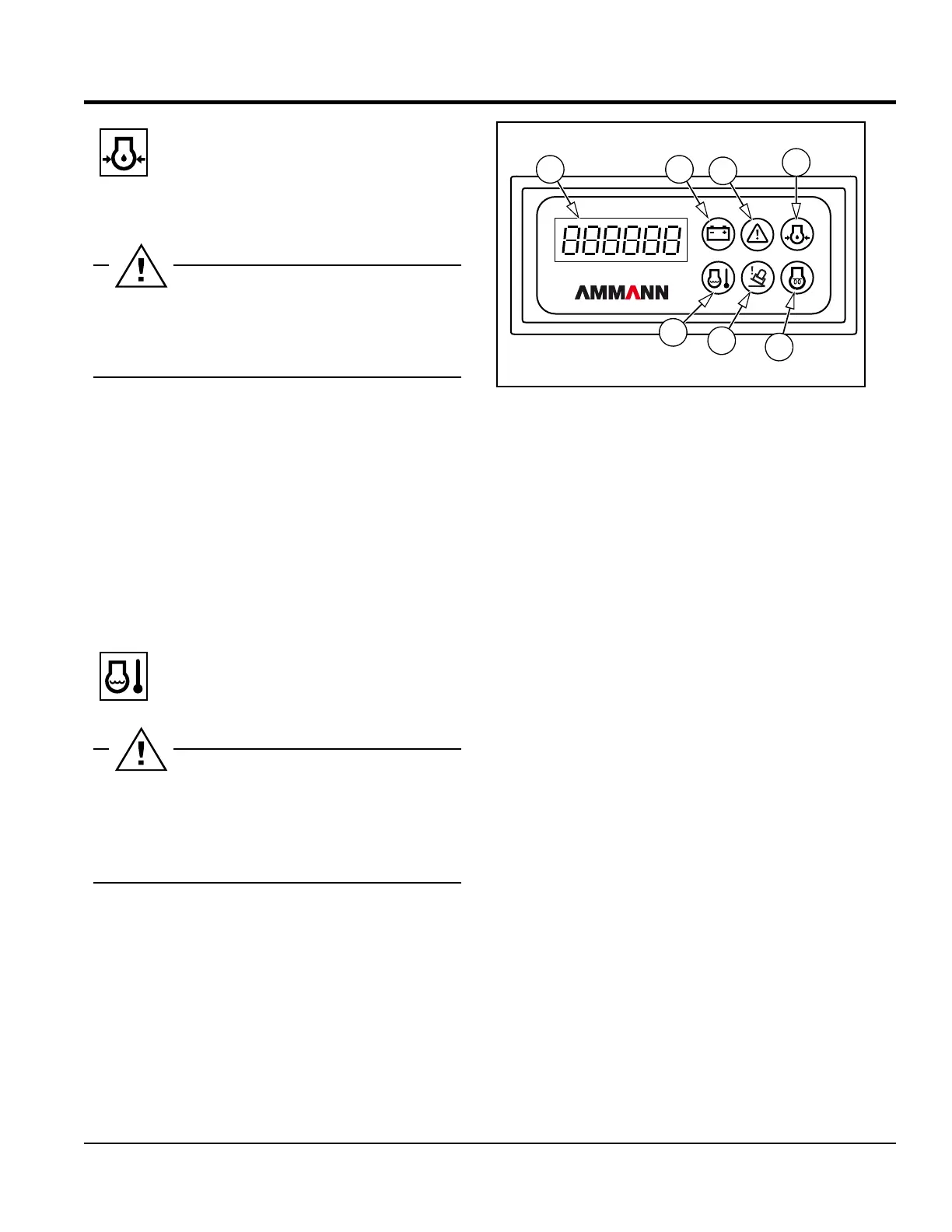

DISPLAY UNIT LAMPS
hours
1 2
3
4
5
6
7
2.6 Actuators and dashboard instruments
Control lamp for engine oil pressure (4)
The pilot lamp lights up after the key in the switch box is
switched in position „I“ and goes out after the engine starts.
If the engine oil pressure control lamp lights up during
operation or does not go o after starting, stop the ma-
chine and turn o the engine immediately!
• Check the engine for oil loss and correct oil level.
• If the level of oil is correct, contact Ammann authorized ser-
vice.
Note
The machine is equipped with an automatic shutdown system.
If the oil pressure falls below the limit value, the oil pressure
warning lamp lights up. After the warning lamp has been lit for
4seconds, the machine is shut down.
Control lamp for cooling water temperature
(5)
Danger of engine overheating. Stop immediately!
If the coolant temperature control lamp lights up during
operation of the machine, switch o the engine immedi-
ately and top up coolant!
• Check the cooling system for leaks and the radiator/expan-
sion vessel for correct coolant level.
• You have not found a fault: Contact Ammann authorized
service.
Note
The machine is equipped with an automatic shutdown system.
If the cooling water temperature exceeds the limit value, the
temperature warning lamp lights up. After the warning lamp
has been lit for 4 seconds, the machine is shut down.
