PAGE 36 — RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL S/N 3069933~ — REV. #0 (11/29/23)

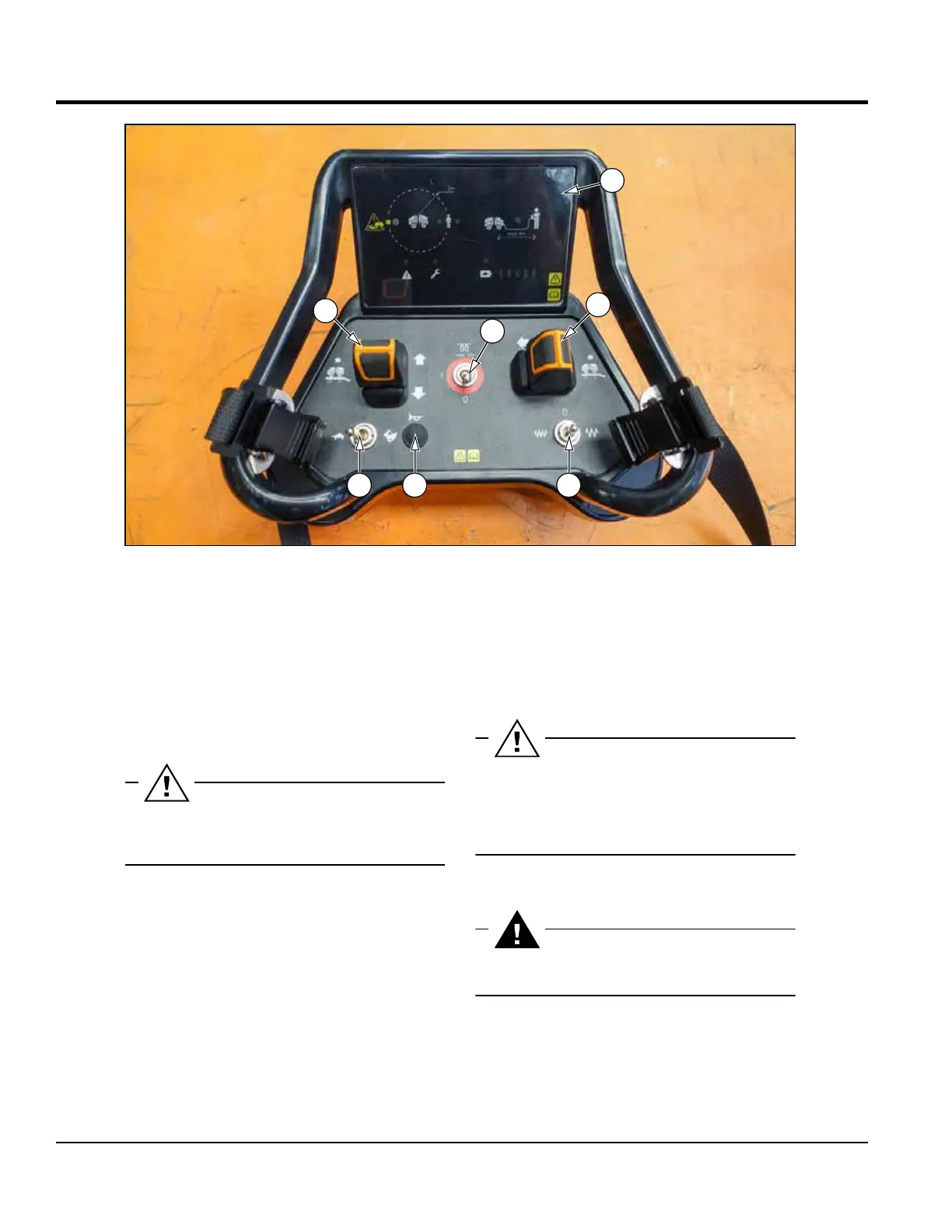

INFRARED REMOTE CONTROL UNIT
1
2
3
654
7
2.6 Actuators and dashboard instruments
2.6.2 Remote control
Forward/reverse travel lever (1)
Left/right steering lever (2)
Start/Stop switch (3)
It is used to start the engine, see Chap. 2.7.3.
After the operation of the machine, all control sticks
must be in the Stop position.
Switch for working speed (tortoise) – initial position / trans-
port speed (hare) (4)
Warning horn button (5)
Vibration switch (6)
- low amplitude,
- vibrations o (initial position),
- high amplitude.
Do not use vibration on steep slopes or in the case of a
large tilt angle.
Do not use vibration in buildings and on unstable
grounds.
Danger to life caused by machine slipping or falling!
Indicator lamps (7)
