RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL S/N 3069933~ — REV. #0 (11/29/23) — PAGE 7

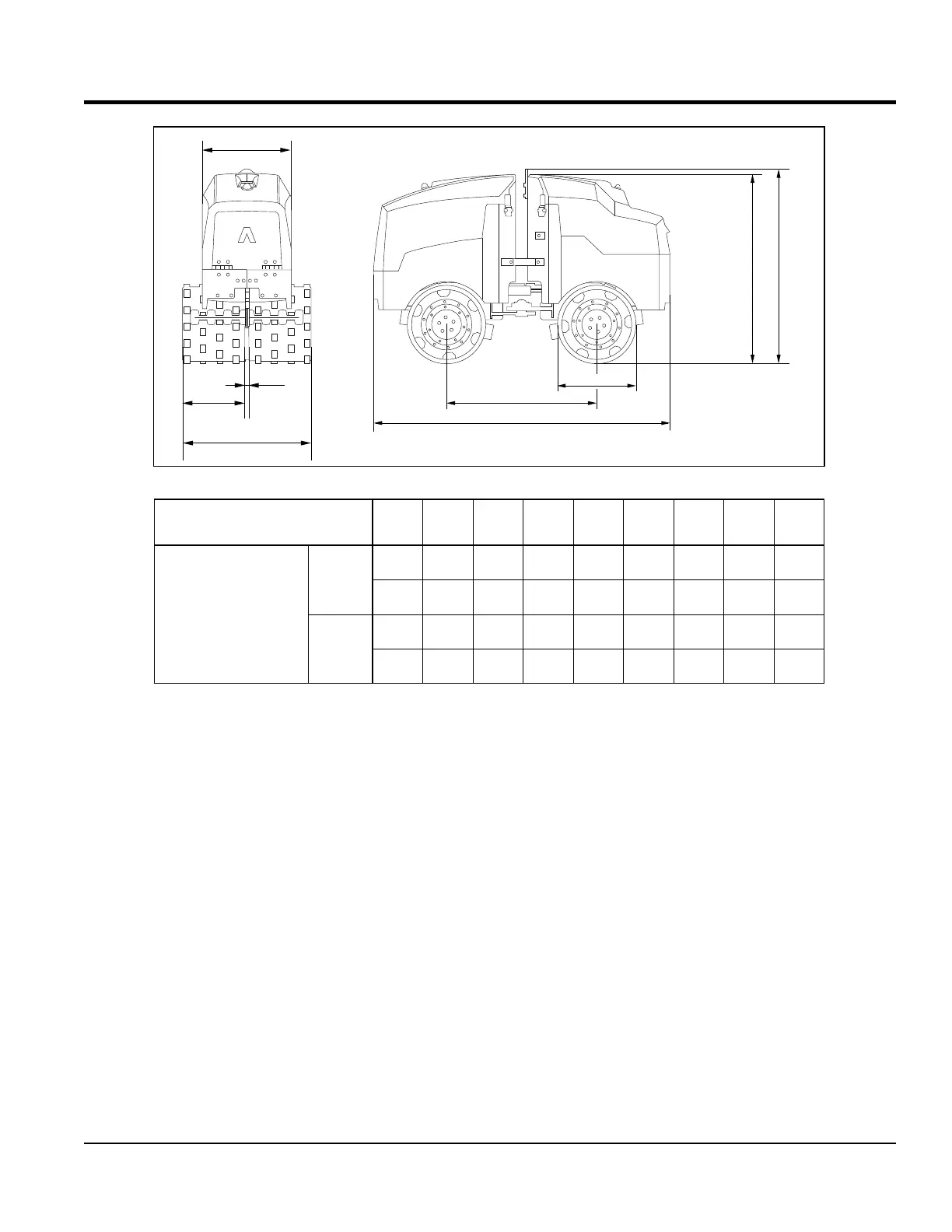

DIMENSIONS
12 RAMMAX 1575
D
B
C
F
G
I
J
A
H
557063
1.2 Dimension Chart
mm
(in)
A B C D F G H I J
RAMMAX1575 T4 nal
640
601 302 36 640 1980 1000 525 1282 1317
(23.7) (11.9) (1.4) (25.2) (78.0) (39.4) (20.7) (50.5) (51.9)
850
601 407 36 850 1980 1000 525 1282 1317
(23.7) (16.0) (1.4) (33.5) (78.0) (39.4) (20.7) (50.5) (51.9)
