FUSES
43RAMMAX 1575
hours
557057
1 2
3
4
5
6
7
1
2
3
4
555058
1
2
3
4
555059
OPERATION MANUAL
AMN499
Machine overturn indicator lamp (6)
The indicator lamp indicates a dangerous lateral tilt of the ma-
chine.
The indicator lamp indicates that the machine is overturned.
It remains lit when the machine is returned to the working posi-
tion.
You must carry out the machine start-up procedure.
Follow the instructions for machine start-up after
overturning.
AMN453
Control lamp for pre-heating (7)
The pre-heating time lasts about 6 s. The pre-heating indicator
lamp extinguishes when the engine is started.

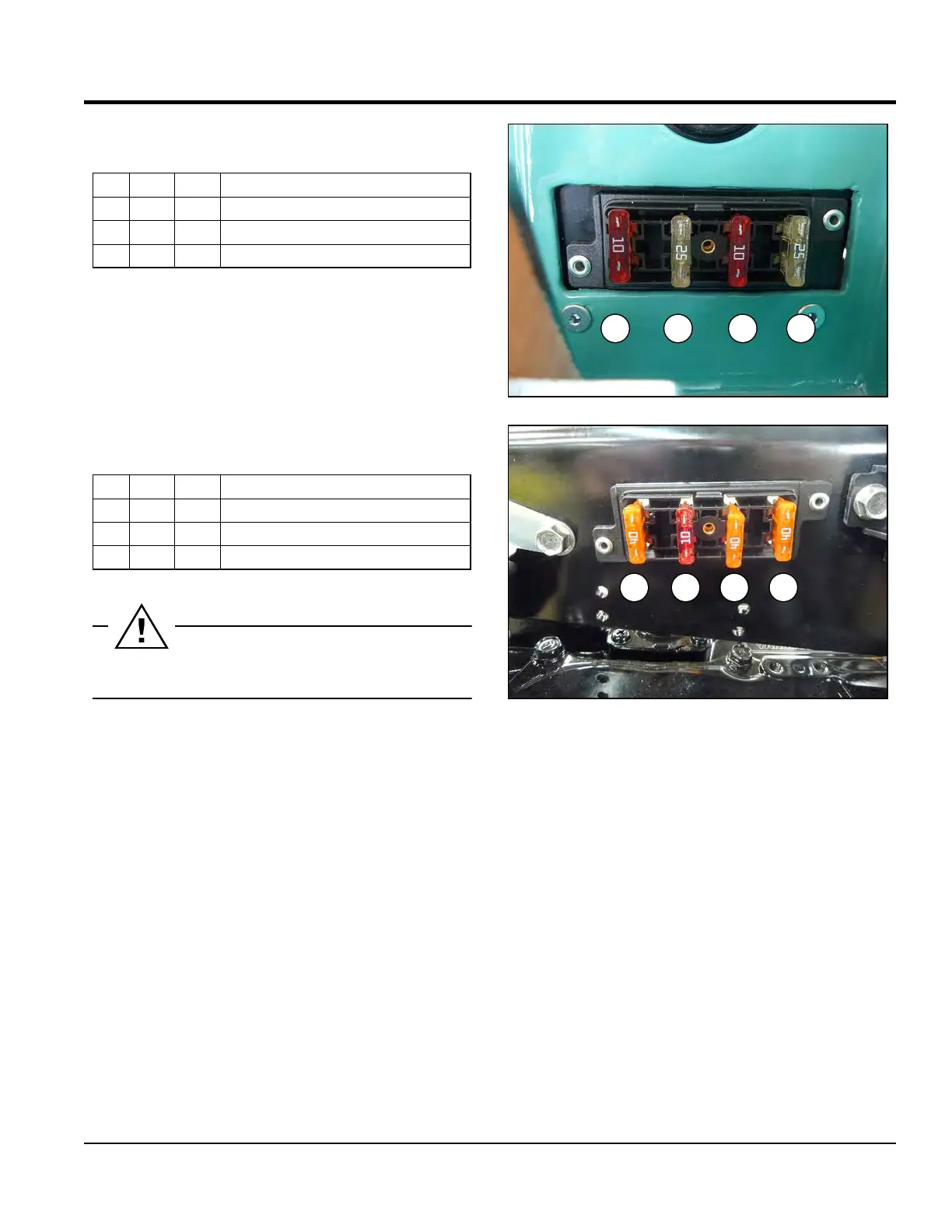

Engine compartment fuses
The fuses are located above the diesel engine.
1 F21 40 A Pull-in solenoid
2 F22 10 A Diesel pump, alternator
3 F23 40 A Operating speed
4 F24 40 A Pre-heating coil
Replace fuses only with fuses of identical value!!!
Cockpit fuses
The fuses are located under the cowling in the cockpit
1 F11 10 A Controller, power supply
2 F12 25 A Controller, outputs
3 F13 10 A Display unit
4 F14 25 A Hydraulic oil cooler
