RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL S/N 3069933~ — REV. #0 (11/29/23) — PAGE 49

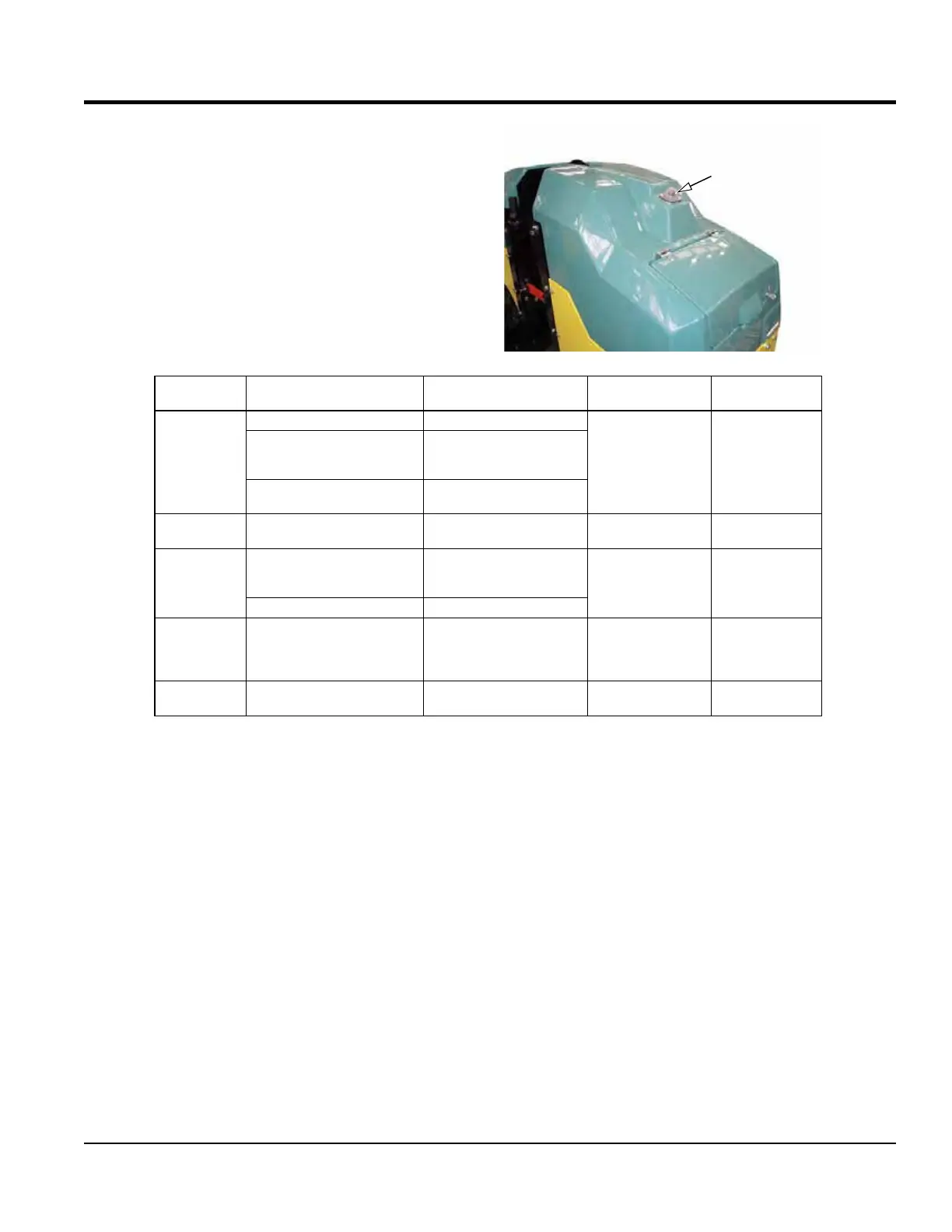

WARNING LIGHT BEACON
56 RAMMAX 1575
557026A
2.6 Actuators and dashboard instruments
2.6.3 Light indication
The light indication is integrated in sensors on the top of the
front and rear bonnet of the machine. The light indication of the
machine is enabled when it is controlled with the remote con-
trol.
It indicates the following machine conditions by ashing in cer-
tain Morse codes.
Machine
status
Cause of the condition
Consequence
ofthecondition
Code (Morse) Light indication
Stand-by
Machine standing still
..------
0.4 sec ON; 3 sec
OFF
The machine operator is outside
the safe zone more than 20 m
from the machine.
The machine automatically
stops.
Signal between remote control
and machine lost.
The machine automatically
stops.
Travel The machine is in motion
..--
0.5 sec ON;
0.5 sec OFF
Warning 1
The machine operator is outside
the safe zone of the machine less
than 2 m from the machine.
The machine automatically
stops.
.-
0.25 sec ON;
0.25 sec OFF
Dead man function active. Deactivation of the safe zone.
Warning 2 2D ROPS function active.
Vibration switches o;
Acoustic signal sounds;
Beacon ashing until the ma-
chine‘s tilt angle is reduced.
.-.-.-----
4 Hz for 3 sec; 5 sec
OFF
Error Error detected Beacon illuminated.
…...
Beacon illuminated
