RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL S/N 3069933~ — REV. #0 (11/29/23) — PAGE 61
ACE
-
ECON SYSTEM
2.7 Machine control and use
2.7.10 ACEecon system
Informs the operator of the condition of the surface compacted
by the machine. There is a sensor in the rear drum measuring
the degree of compaction. The information about the achieved
degree of compaction is displayed by LEDs. The more LEDs are
on, the more the surface is compacted. The system is enabled
when the vibration function is started.
If the machine passes repeatedly and more LEDs do not light
up, the surface is compacted to maximum. The surface can be
compacted to maximum before the maximum number of LEDs
lights up. There is no increase at a surface that cannot be com-
pacted (e.g. wet clay) even on the LED panel.

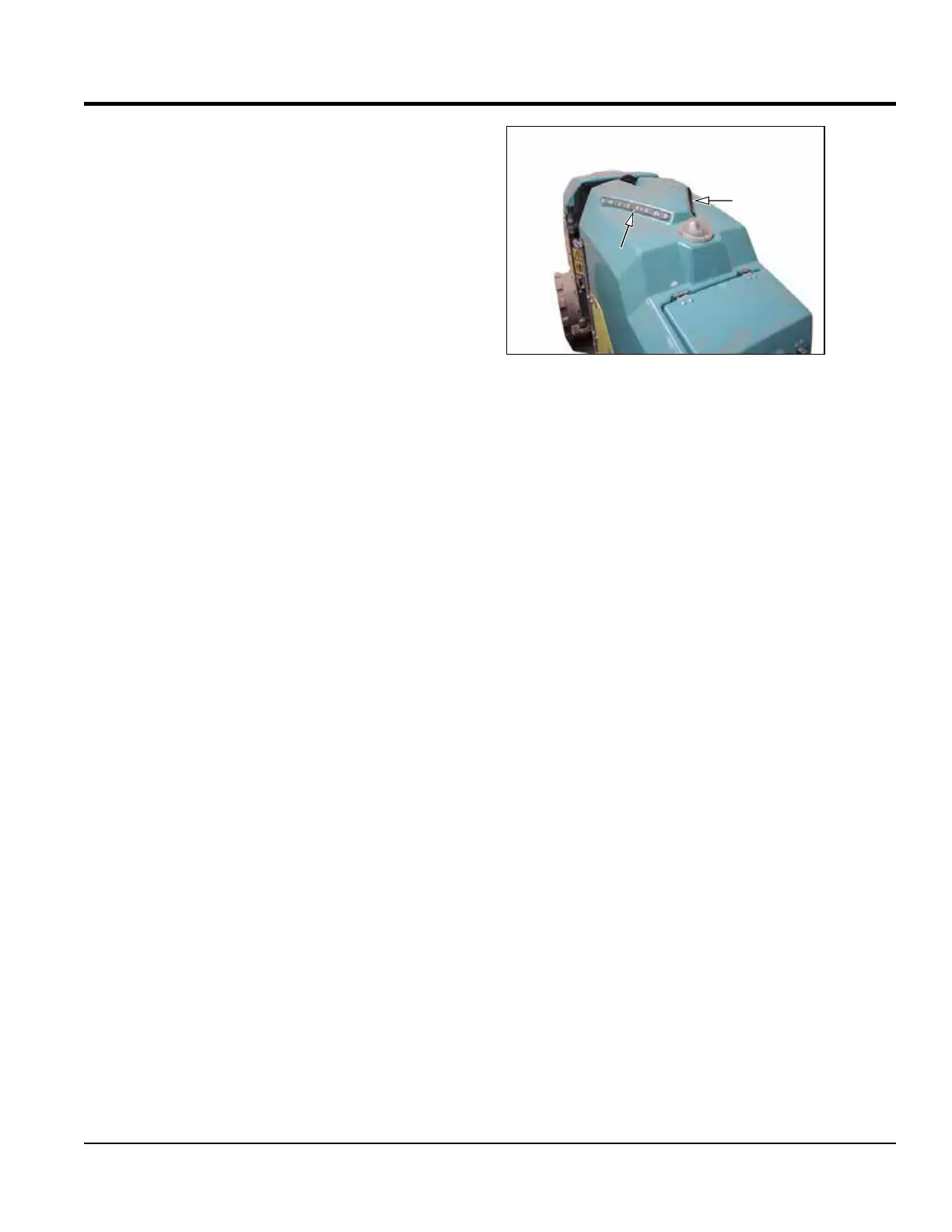

LED panel
• The LED panels will ash shortly in violet when you turn the
key in the ignition box. After the machine start-up, both of
the panels will go o until the machine starts vibrating.
• If the LED panels start ashing in violet during operation
of the machine or do not go o after the machine start-up,
there is a fault. Check cable connections from the sensor to
the LED panels.
• The degree of surface compaction is indicated by a number
of lighting LEDs. The LEDs light in green and they light up
gradually with the gradual compaction process.
• If the LEDs light in red, there is a vibration stroke. The surface
is too sti and the machine can get damaged if operated
for a long time in such a condition. This condition can oc-
cur also when the machine passes a locally sti surface, e.g.
large stone under the surface.
