UNIT START
-
UP
60 RAMMAX 1575
2
–
+
+
–
0
v
12
1
2
4
3
555103
0
v
12
2.7 Machine control and use
When using auxiliary starting source this power supply
shall have starting voltage of 12 V.

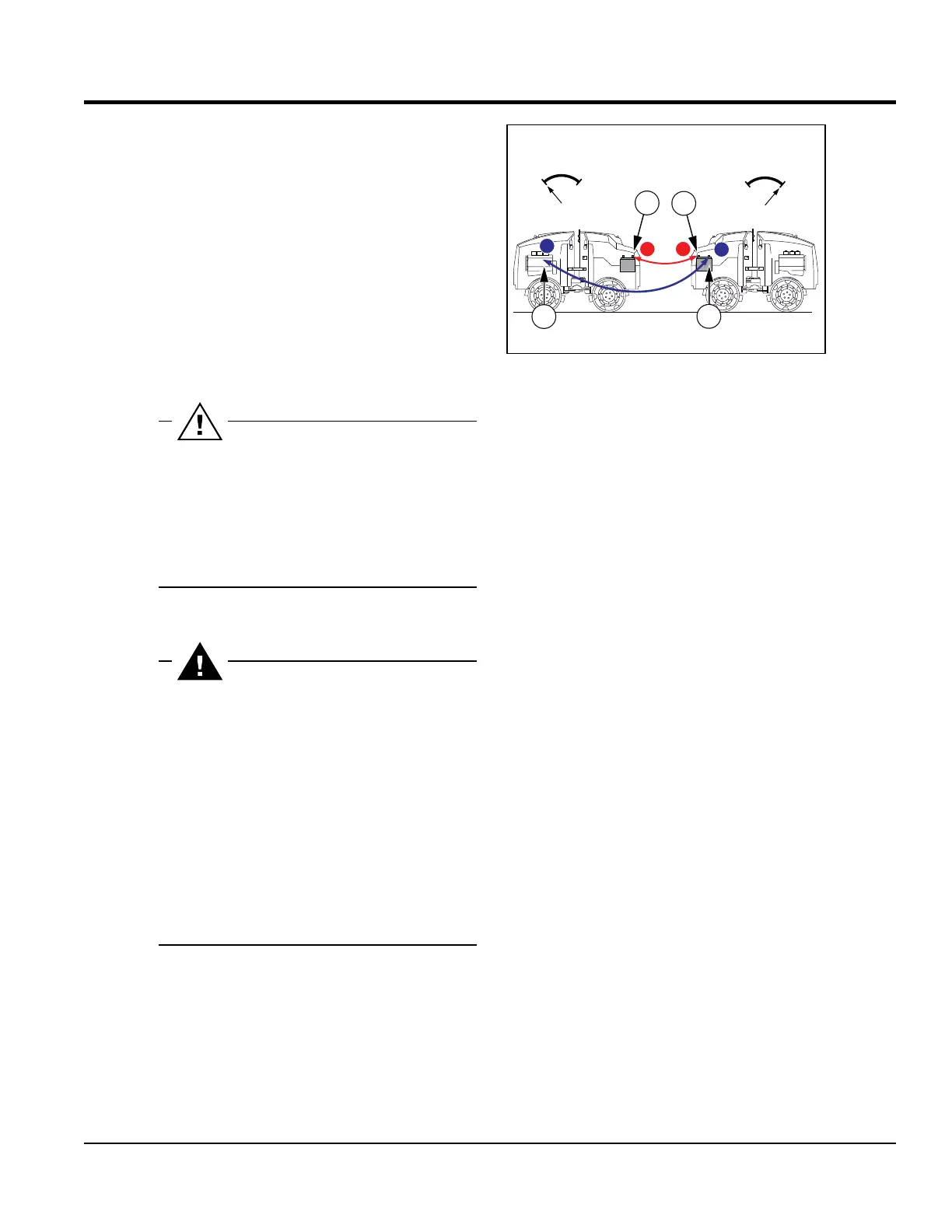

How to start via starting cables from dierent machine
1 Connect one end (+) of cable pole to (+) pole of dis-
charged battery.
2 Connect second end of (+) cable pole to (+) pole of the
Machine battery from which starting will be made.
3 Connect one end of (-) pole to (-) pole of vehicle battery
with the help of which starting will be made.
4 Connect second end of (-) cable pole to such part of the
Machine being started which is wired in the engine (or
eventually in the engine block itself).
Observe unconditionally the sequence of operations
given below!
Once started, disconnect the starting cables in reverse
sequence.
When having used starting unit with no batteries con-
nected donot disconnect this unit before Machine’s bat-
tery is connected.
DoNOT connect cable of (-) pole to (-) pole of discharged
battery of started Machine! Strong sparking followed
by explosion of gas generated by the battery may occur
when starting.
Non-insulated parts of starting cable collets may not
touch each other!
Starting cable connected to battery (+) pole may not
come into contact with electrically conductive parts of
the Machine - short-circuit possible.
DoNOT bend over the battery - hazard of acid burn!
Eliminate presence of ammable sources (open re,
burning cigarettes, etc.).
DoNOT check presence of voltage in wires with the use
of sparking via Machine frame!
