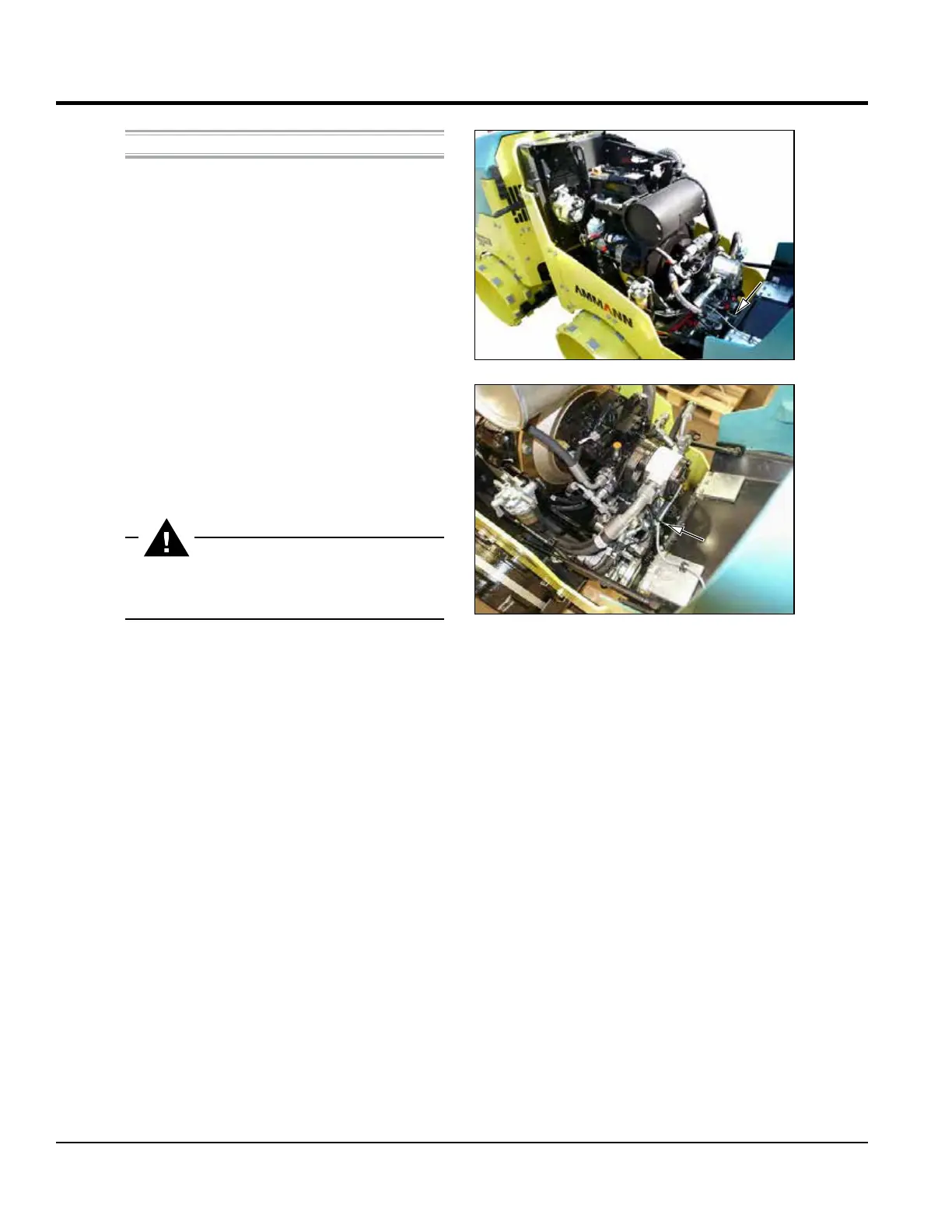

PAGE 90 — RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL S/N 3069933~ — REV. #0 (11/29/23)
MAINTENANCE
3.6 Individual Operations of Maintenance
Every 50 hours of operation
3.6.11 Inspection of brakes
• The function of the brakes must be checked periodically.
• The cable / connector Y9, which must be disconnected for
the brake test, is located at the front under the hood.
• Put the machine into the work gear.
• Disconnect connector Y9 from the connector housing at the
magnet.
• Use the sensor to activate the forward and reverse travel
function.
• If abrake is defective, the corresponding drum will rotate.
If the brake is damaged, the machine must not be oper-
ated until the fault is rectied!
3.6.12 Electrical installation check
• Check cables, connectors, protective hoses and their attach-
ments for damage, in particular if they are near hot surfaces
and moving parts of the machine including the engine. Re-
place damaged parts. Use only original spare parts.
