Multitech MultiConnect rCell 100 Series Configuration Manual




UsingtheRouter’sWebInterface  12

Assigningfixedaddresses
YoumustletyourrouterknowaboutdeviceswithfixedIPaddresses.Todoso,youmanuallyenterthe
device'sMACaddressandtheIPaddressthatisboundtothatMACaddress.AfteryoubindtheMACaddress
totheIPaddress,theIPaddresscannotbeusedbyanyDHCPclientwithadifferentMA
Ca
ddress,evenif
thereisnoactiveDHCPconnectionwiththatIPaddress.
Toassignfixedaddresses:
1. IntheFixedAddressgroup,clickAdd.Adialogboxopens,whereyoudefinetheaddress.
2. IntheMACAddressfield,typetheMACaddresstowhichth
especifiedIPaddressbi
nds.
3. IntheIPAddressfield,typethefixedIPaddresstobeassigned.
4. ClickFinish.Theaddressesareadded.
ConfiguringGPS
ConfiguringtherouterforusewithaGlob alPositioningSyst em(GPS)
Someroutershaveabuilt‐inGPSreceiver.IfyourrouterhasaGPS,theroutercanforwardNMEA(National
MarineElectronicsAssociation)sentencesfromtheGPSreceivertoadeviceconnectedtotherouter'sserial
port.YoucanalsosendtheGPSdataoverthenetworktoaremotecomputer.


ToconfiguretheGPSonyourrouter:

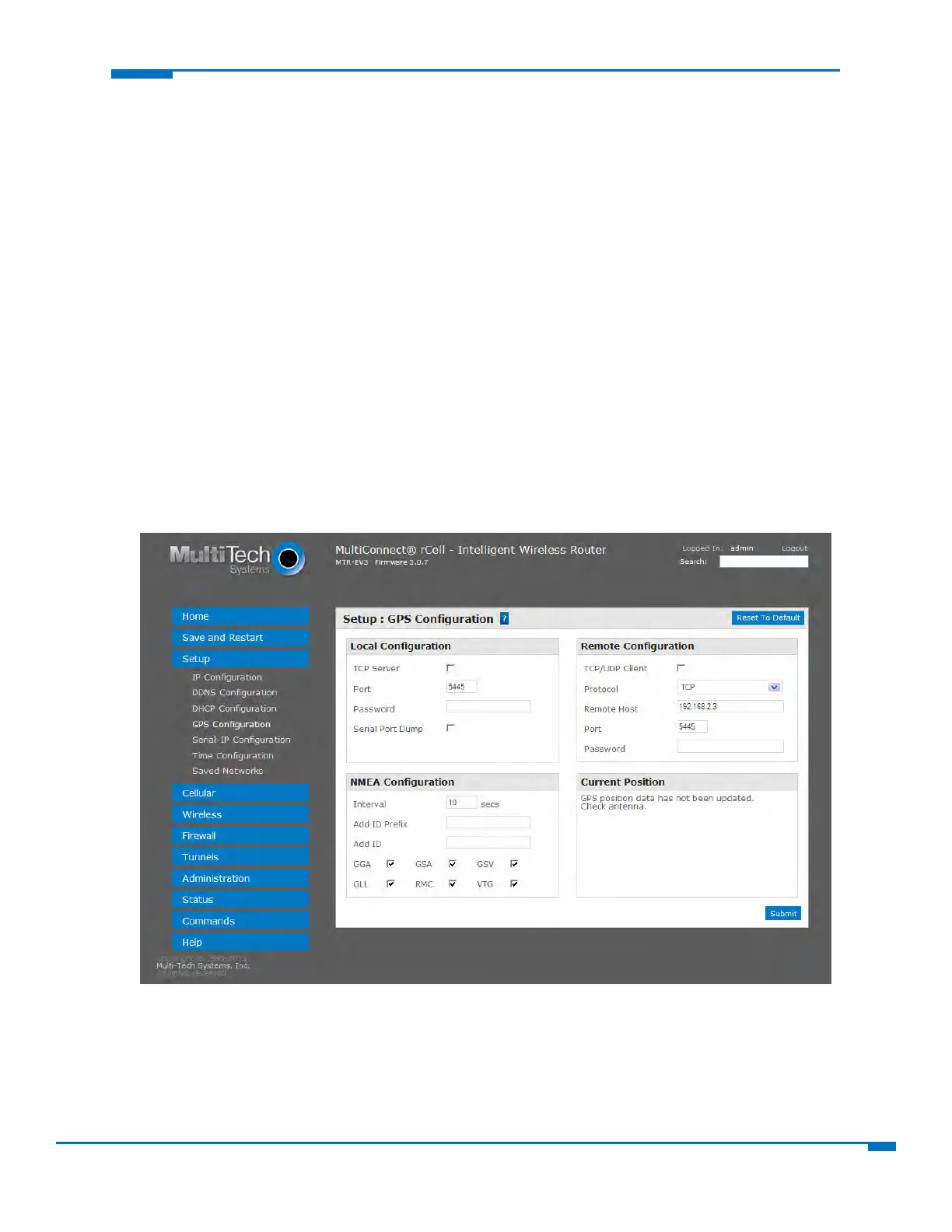

1. FromSetup,selectGPSConfiguration.TheSetup:GPSconfigurationpaneopens.
2. ToconfiguretheTCPserverportandenableaserialportdumpofNMEAsentences,seeDumpingNMEA
sentenceinformationtotherouter'sTCPserverport.
