2.3 INSTALLATION REQUIREMENTS
An Authorized Mutoh technician will install your unit and will make the printer ready for its first job. A room
which meets the environmental and space conditions should be foreseen by the user.
Area 12.7m² (144ft²) or larger. Frontage of 4.7m (15.7ft) or greater.
Floor loading capability 2940 Pa (300kg/m²) or over
Voltage AC 100-120V
AC 220-240V
Frequency 60/50Hz±1Hz
Electrical
Capacity AC100V-120V : 12A
AC220V-240V : 6A
In order to protect the printer for over currents, short circuits and earth faults, the building
installation should be equipped with an automatic breaker double pole of 20 A and an earth leakage
switch of 300 mA.
Recommended
working
environment
Temperature: 23°C
Humidity: 55%, without condensation
Operational
conditions
Temperature: 18°C-28°C
Humidity: 40% to 80%, without condensation
Rate of change Temperature: No more than 2°C per hour
Humidity: No more than 5% per hour
Environmental
Storage
environment
Temperature: 4°C to 50°C
Humidity: 40 to 80%, without condensation (When ink has been
discharged.)

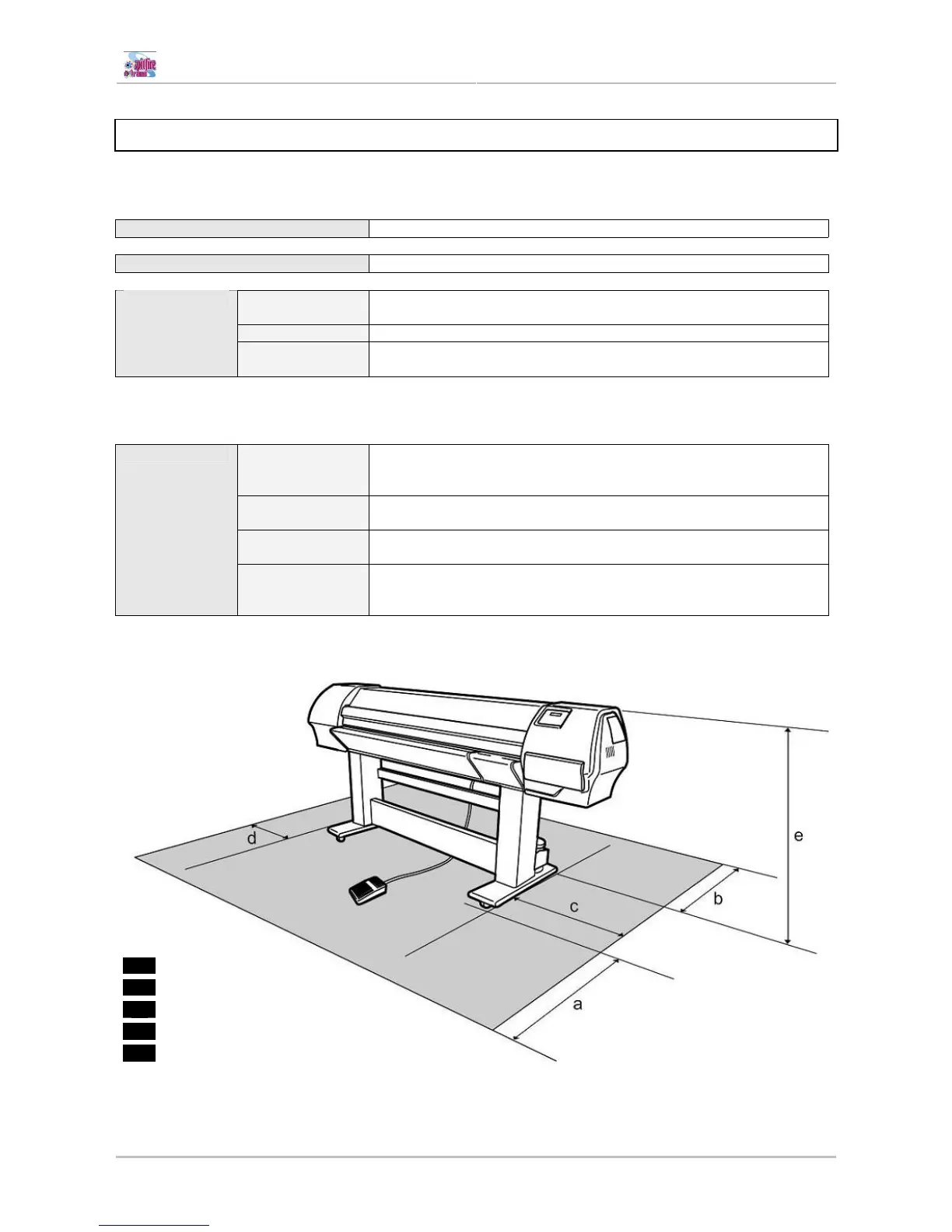

Install the product on a flat surface that fulfils the following conditions.
a
1500 mm
b
1500 mm
c
2500 mm
d
600 mm
e
1250 mm
