Myray hyperion X5 3D CEPH - Aligning the Ear Guide Rings

147
TARGET
hyperion X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL
EN
DEVICE INSTALLATION AND CALIBRATION » 2D calibration

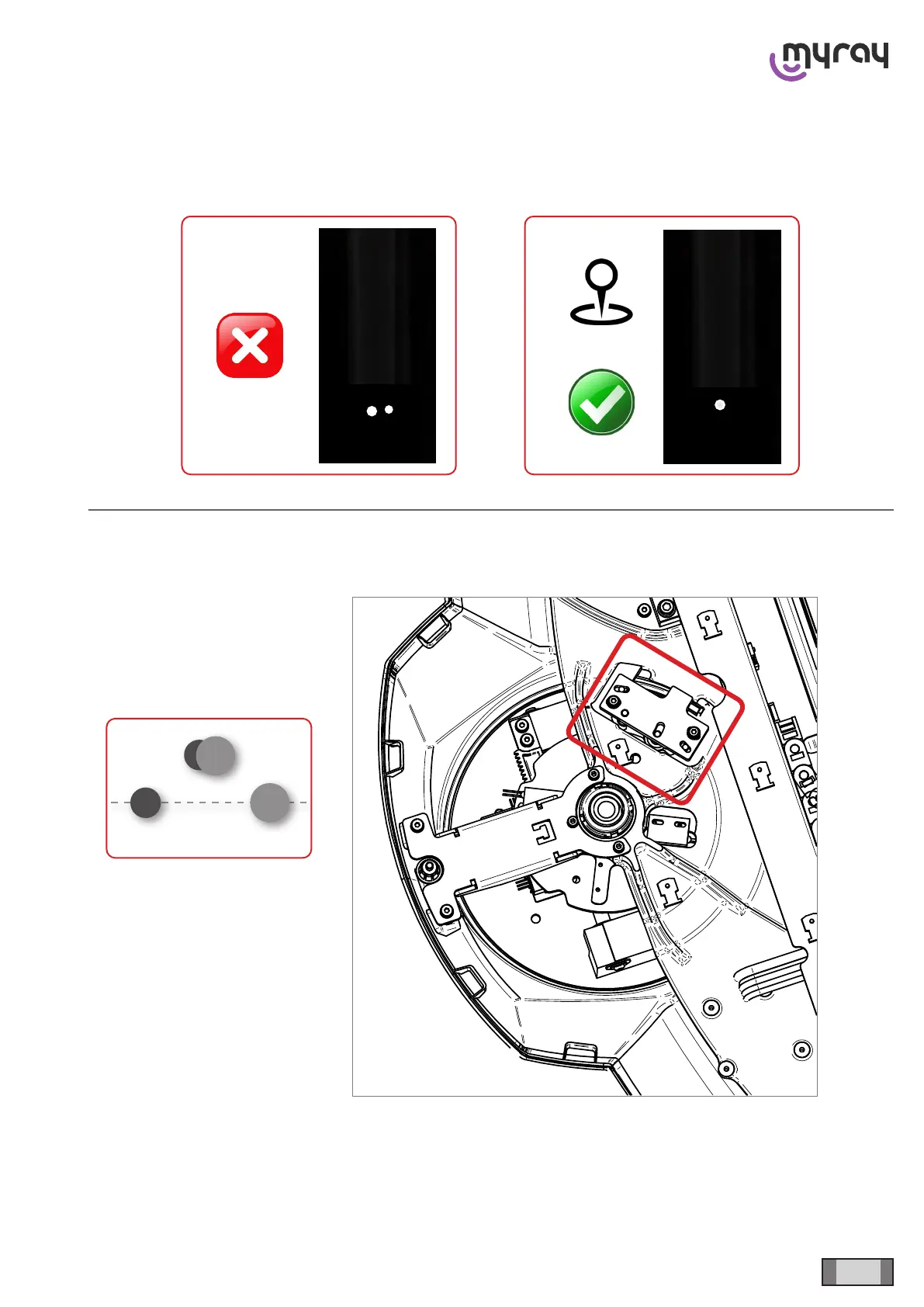

4.6.15 ALIGNING THE EAR GUIDE RINGS
To check the correct alignment it is possible to take the image by using a CEPH mechanical positioning window or by
launching the virtual keyboard and performing a CEPH LL examination.
• Horizontal alignment
