hyperion X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL
EN
DEVICE INSTALLATION AND CALIBRATION » Cover installation

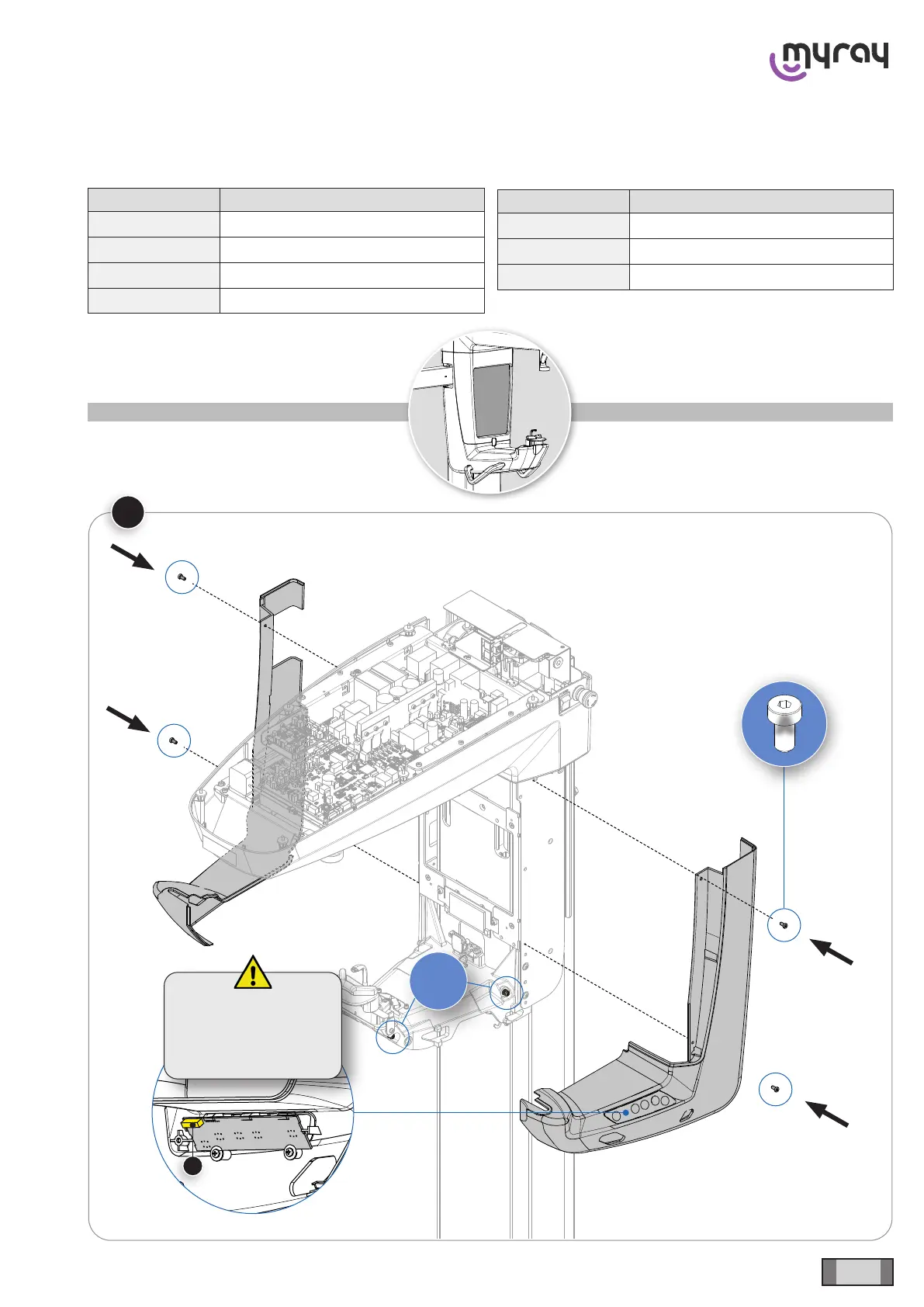

4.2 COVER INSTALLATION
Screw kit
SYMBOL DESCRIPTION
A
SCREW TCEI M5X10 8.8
B
ELAS GROWER WASHER FOR M8
C
SCREW TCEI M8X20 8.8
D
SCREW TCEI M4X6 8.8
SYMBOL DESCRIPTION
E
SCREW T/BOMB EI M4X10 10.9
F
SCREW TCEI M5X16 8.8
G
ELAS GROWER WASHER X M5
Connect
K1 ► Logic board
(see section “Circuit
boards”)
