Myray hyperion X5 3D CEPH - Page 28

24
11
Power board
COLUMN UPPER ENDPOINT
PHOTOCELL / COLUMN
ANTI-PINCH SWITCH
K13/K22
COLUMN LOWER ENDPOINT
PHOTOCELL
K18
COLUMN MOTOR POWER SUPPLY
K1
COLUMN MOTOR THERMAL SENSOR
K2
DOOR INTERLOCK
K11
EXTERNAL EMERGENCY BUTTON
K12
EXTERNAL SIGNAL LAMPS - 1,2 = READY -
3,4 = X-RAY EMISSION
K14
X-RAY BUTTON
(1= VCC, 2 = BUTTON, 3 = READY LED, 4 = X-RAY LED,
5/6 = NOT USED)
K10
MAINS POWER SUPPLY
K17
L
N PE
E
M
E
R
G
E
N
C
Y
S
T
O
P
K17
K11 K12
K14
34 12
110VOLT
INSTALLATIONS
▼
FH2 FH1
hyperion X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL
EN
DEVICE INSTALLATION AND CALIBRATION » Assembly instructions

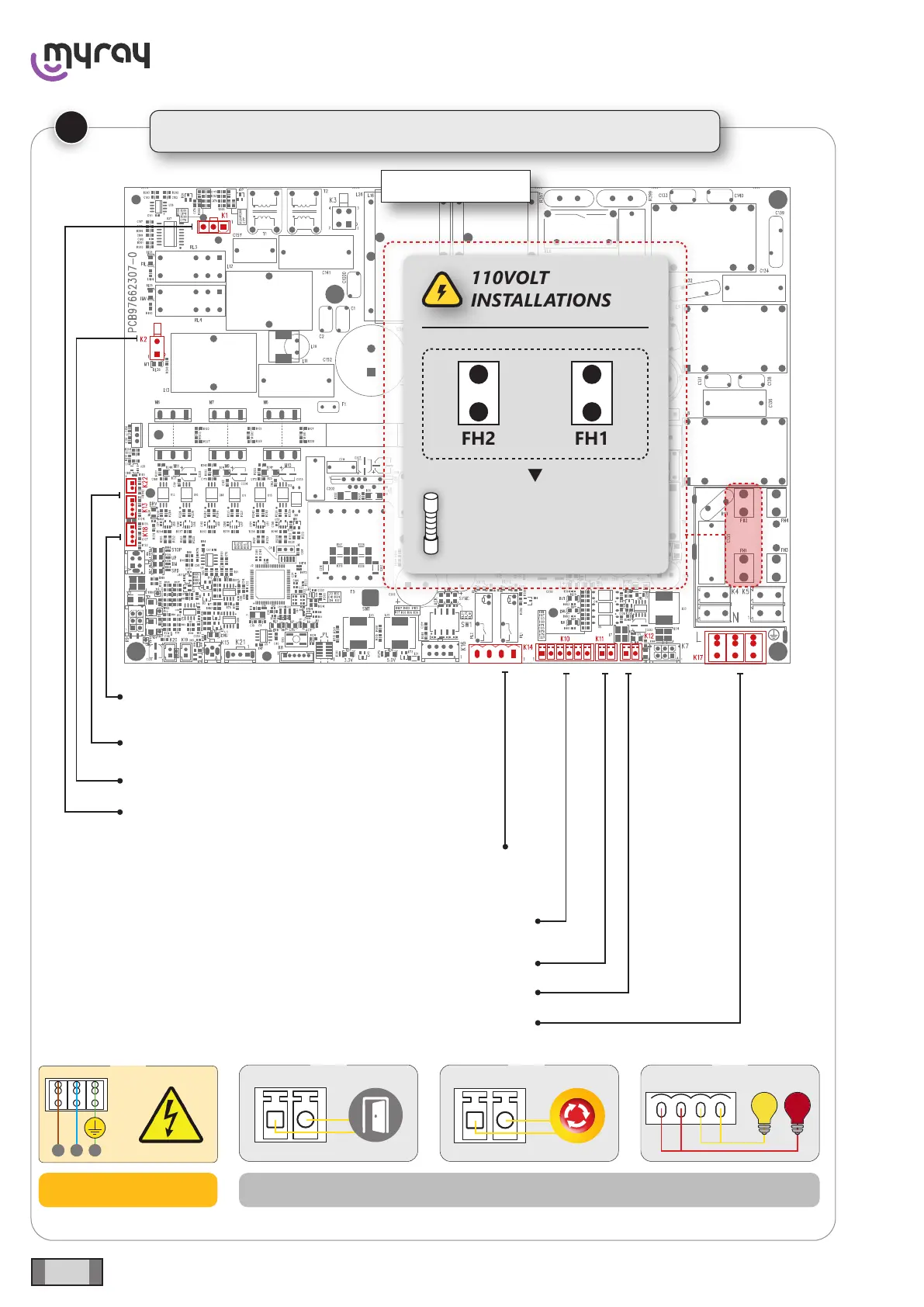

Electrical connections on POWER board
COMPULSORY OPTIONAL
Replace with:
97769300
FUSE 6,35X32 20A 250V
