hyperion X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL

DEVICE INSTALLATION AND CALIBRATION » Software installation

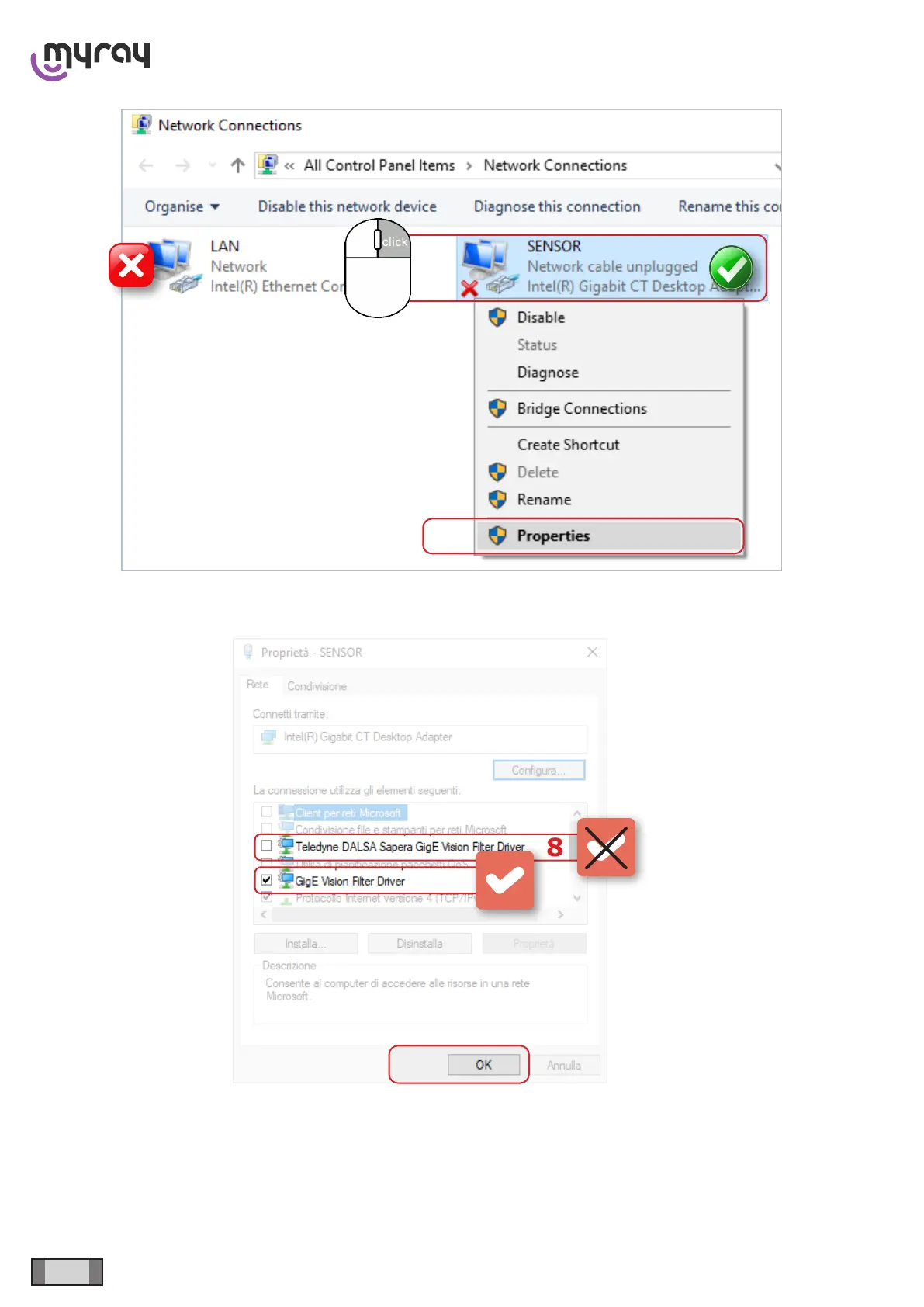

If items (7 - 8) are missing, this indicates that the driver installation was not successful and it must be repeated (see

chapter “Acquisition Server Plus software installation“).
