FPΣ
High-speed Counter and Pulse Output Functions
6-40
Note
The circular interpolation control instruction can be used with
the C32T2 control unit only.
Note
Assume that the execution conditions for this instruction always
hold. When the execution conditions are off, pulse output stops.
If you use one-shot relay (ex.: R101 below), pls refer to the
following program by using R903A and R903C in order to make
internal relay hold. (ex.: R102 below.)

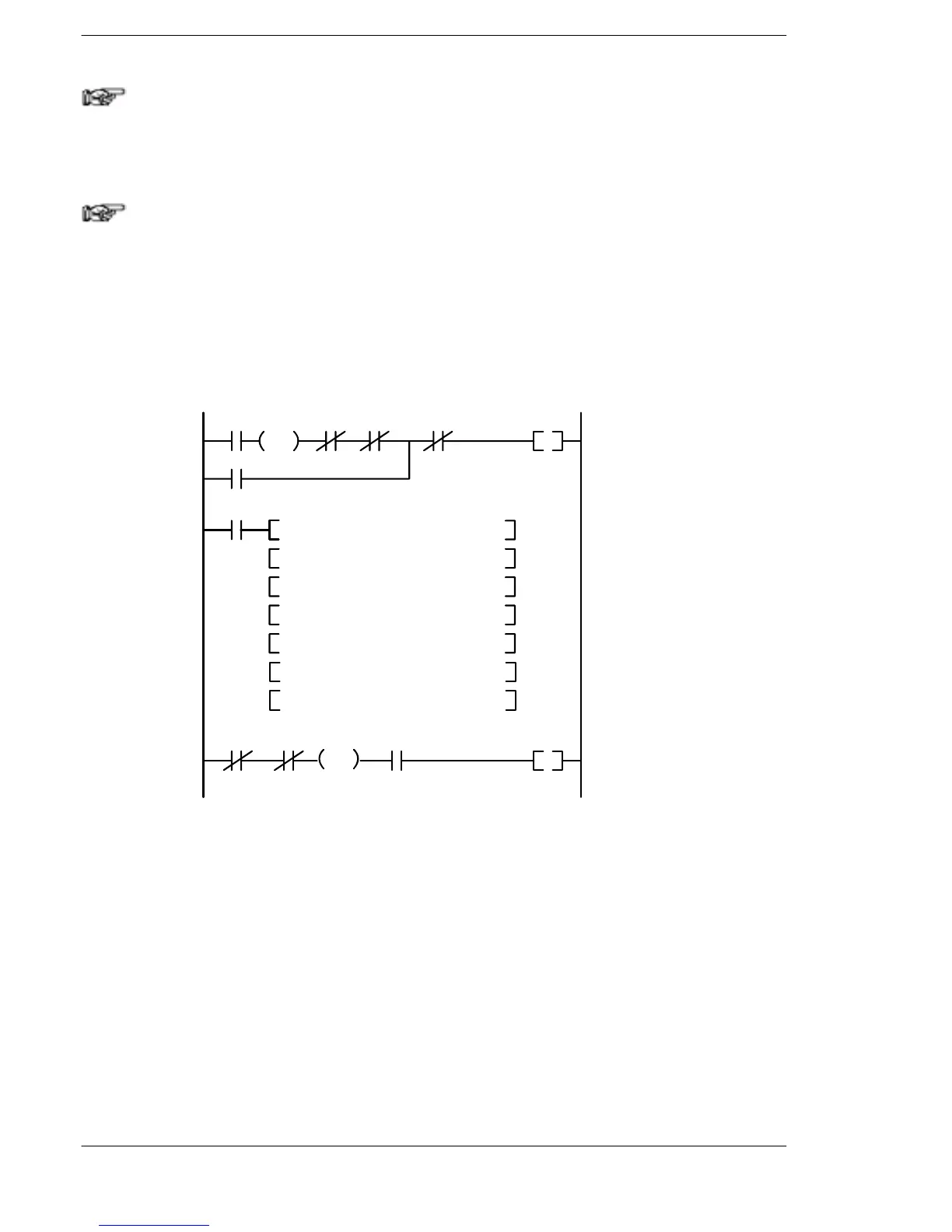

R903A
R102
R903C
DF
R101 R102
R903A
R903C R103
DF
R102
R102
F1 DMV , H 1100 , DT 600
F1 DMV , K 1000 , DT 602
F1 DMV , K 0 , DT 604
F1 DMV , K 1000 , DT 606
F1 DMV , K 0 , DT 608
* Current position S = (0.0)
(DT90044, DT90045) = 0, (DT90200, DT90201) = 0
Sample Program
F1 DMV , K 500 , DT 610
F176 SPCH ,DT 600 , K0
R103
