NAiS FP Series User Manual

FPΣ
Communication Function 1 Computer Link
8-20
Unit No. setting using unit No. (station No.) setting switch
The unit number setting switch is located inside the cover on the left side of the FPΣ
control unit. The selector switch and the dial can be used in combination to set a unit
number between 1 and 31.
Selector
switch
Dial switch
Unit No. (station No.) setting switch

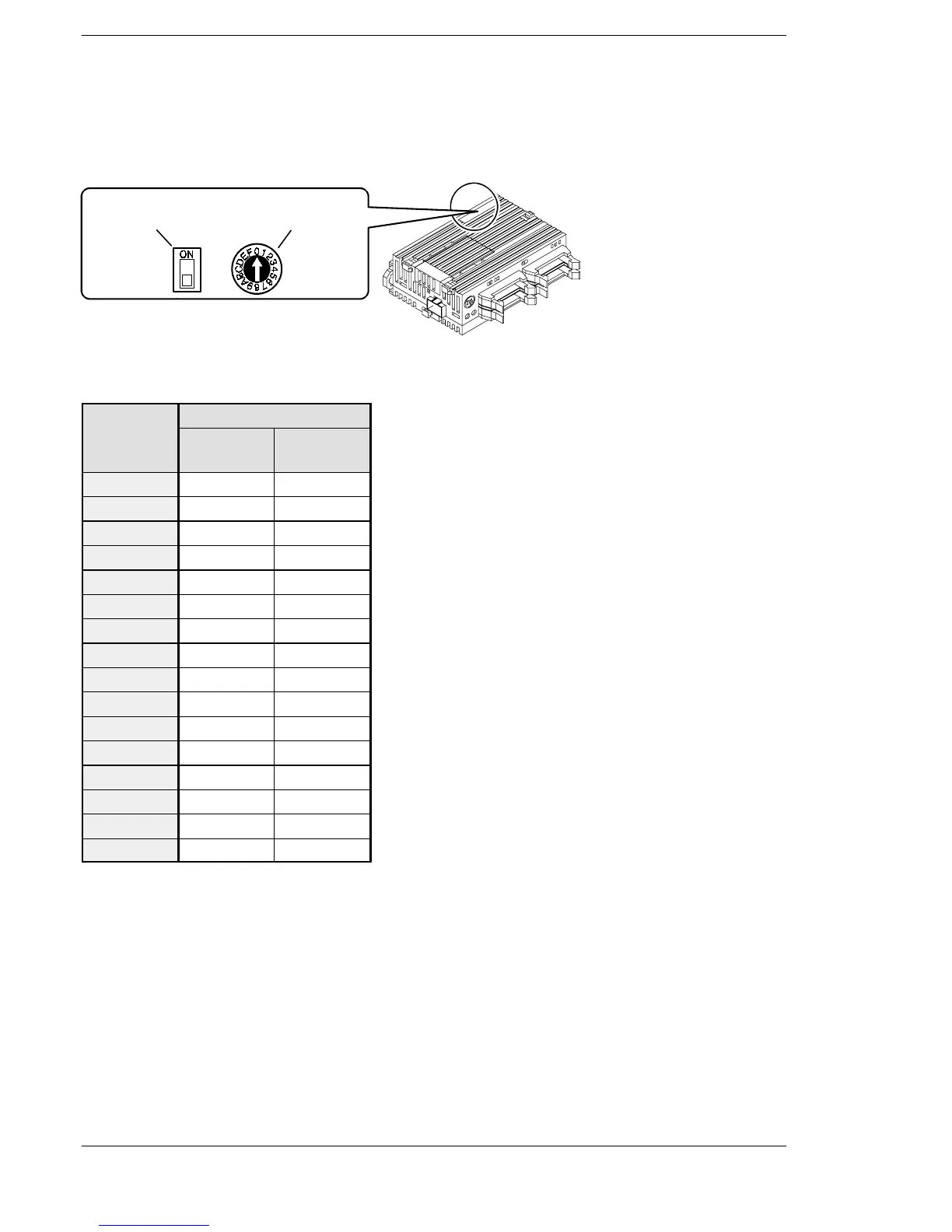

Figure 158: FPΣ Computer link - unit No. (station No.) setting switch
Relationship between unit No. setting switch and unit numbers
Dial
switch
Unit No.
Di
a
l
sw
i
tc
h
position
Selector
switch: off
Selector
switch: on
0 — 16
1 1 17
2 2 18
3 3 19
4 4 20
5 5 21
6 6 22
7 7 23
8 8 24
9 9 25
A 10 26
B 11 27
C 12 28
D 13 29
E 14 30
F 15 31
- The range of numbers that can
be set using the unit No.
setting switch is from 1 to 31.
- Setting the unit No. setting
switch to “0” makes the system
register setting valid, so that a
unit number between 1 and 99
can be set.
