10.2 Communication Parameter Settings
10 - 15
Unallowable allocations
Allocations such as those shown below are not possible, either for link relays or link
registers.

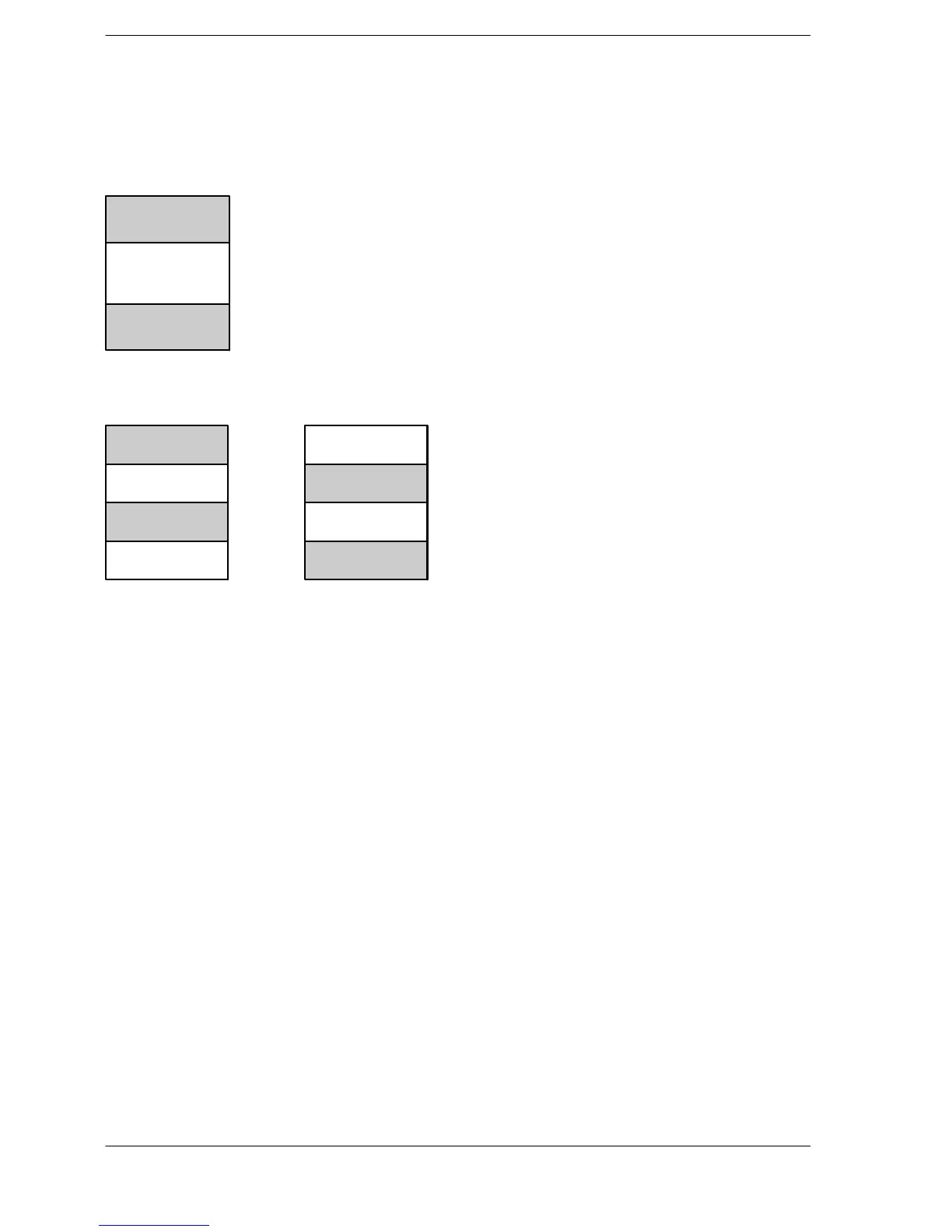

Allocations in which the transmitted area is split
Transmitted area
Received area
Transmitted area
Figure 214: Unallowable allocation example 1
Allocations in which the transmitted and received areas are split into multiple segments
Transmitted area
Received area
Transmitted area
Received area
Received area
Received area
Transmittedarea
Transmitted area
Figure 215: Unallowable allocation example 2
