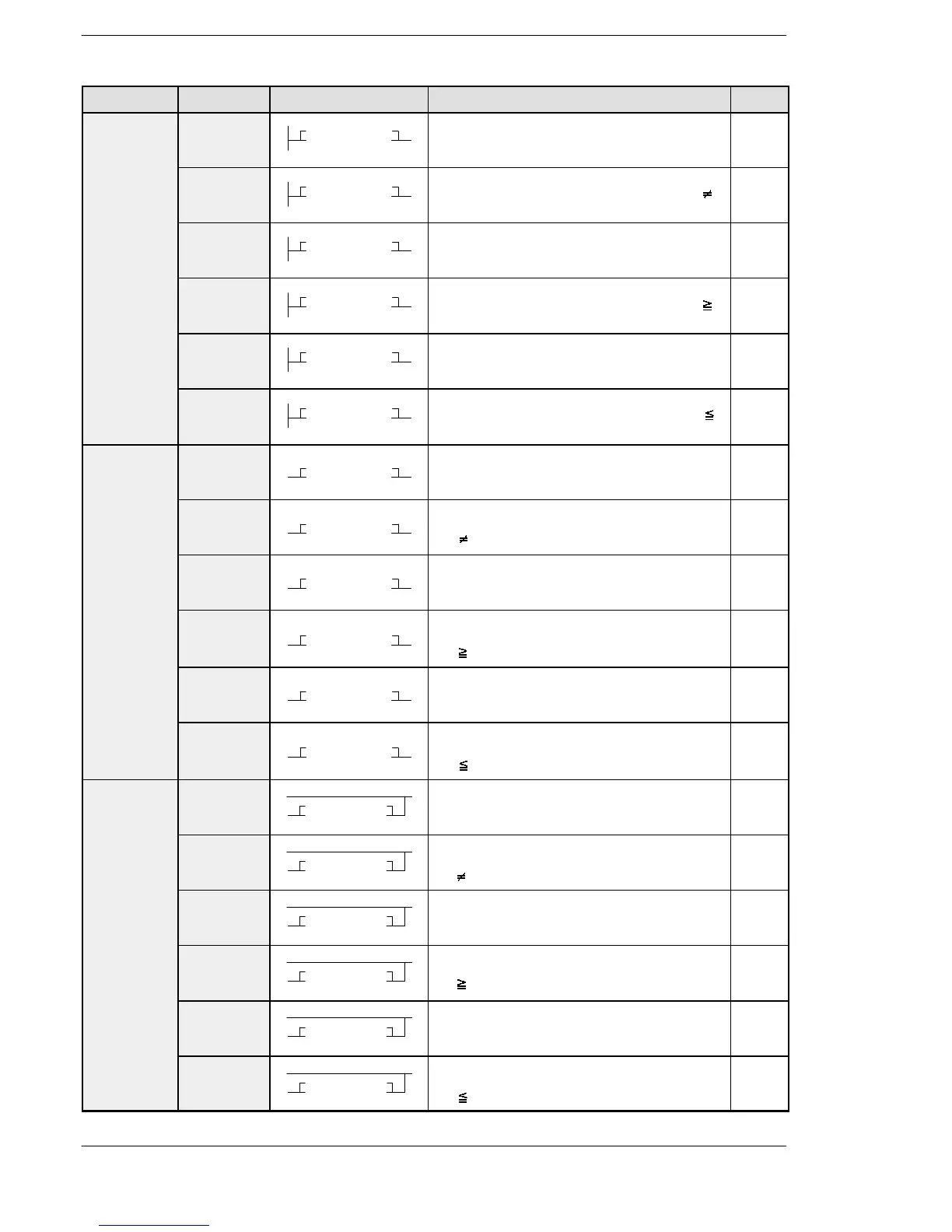

Name Boolean Symbol Description Steps
32-bit data
comparison
(Start)
STD=
D= S1, S2
Begins a logic operation by comparing two 32-bit
data in the comparative condition “(S1+1, S1) =
(S2+1, S2)”.
9
STD<>
D< > S1, S2
Begins a logic operation by comparing two 32-bit
data in the comparative condition “(S1+1, S1)
(S2+1, S2)”.
9
STD>
D> S1, S2
Begins a logic operation by comparing two 32-bit
data in the comparative condition “(S1+1, S1) >
(S2+1, S2)”.
9
STD>=
D> = S1, S2
Begins a logic operation by comparing two 32-bit
data in the comparative condition “(S1+1, S1)
(S2+1, S2)”.
9
STD<
D< S1, S2
Begins a logic operation by comparing two 32-bit
data in the comparative condition “(S1+1, S1) <
(S2+1, S2)”.
9
STD<=
D< = S1, S2
Begins a logic operation by comparing two 32-bit
data in the comparative condition “(S1+1, S1)
(S2+1, S2)”.
9
32-bit data
comparison
(AND)
AND=
D= S1, S2
Connects a contact serially by comparing two
32-bit data in the comparative condition “(S1+1,
S1)=(S2+1, S2)”.
9
AND<>
D< > S1, S2
Connects a contact serially by comparing two
32-bit data in the comparative condition “(S1+1,
S1) (S2+1, S2)”.
9
AND>
D> S1, S2
Connects a contact serially by comparing two
32-bit data in the comparative condition “(S1+1,
S1)>(S2+1, S2)”.
9
AND>=
D> = S1, S2
Connects a contact serially by comparing two
32-bit data in the comparative condition “(S1+1,
S1) (S2+1, S2)”.
9
AND<
D< S1, S2
Connects a contact serially by comparing two
32-bit data in the comparative condition “(S1+1,
S1)<(S2+1, S2)”.
9
AND<=
D< = S1, S2
Connects a contact serially by comparing two
32-bit data in the comparative condition “(S1+1,
S1) (S2+1, S2)”.
9
32-bit data
comparison
(OR)
ORD=
D= S1, S2
Connects a contact in parallel by comparing two
32-bit data in the comparative condition “(S1+1,
S1)=(S2+1, S2)”.
9
ORD<>
D< > S1, S2
Connects a contact in parallel by comparing two
32-bit data in the comparative condition “(S1+1,
S1) (S2+1, S2)”.
9
ORD>
D> S1, S2
Connects a contact in parallel by comparing two
32-bit data in the comparative condition “(S1+1,
S1)>(S2+1, S2)”.
9
ORD>=
D> = S1, S2
Connects a contact in parallel by comparing two
32-bit data in the comparative condition “(S1+1,
S1) (S2+1, S2)”.
9
ORD<
D< S1, S2
Connects a contact in parallel by comparing two
32-bit data in the comparative condition “(S1+1,
S1)<(S2+1, S2)”.
9
ORD<=
D< = S1, S2
Connects a contact in parallel by comparing two
32-bit data in the comparative condition “(S1+1,
S1) (S2+1, S2)”.
9
