FP
Σ
Specifications
and
Functions
of
Control
Unit
2-1
0

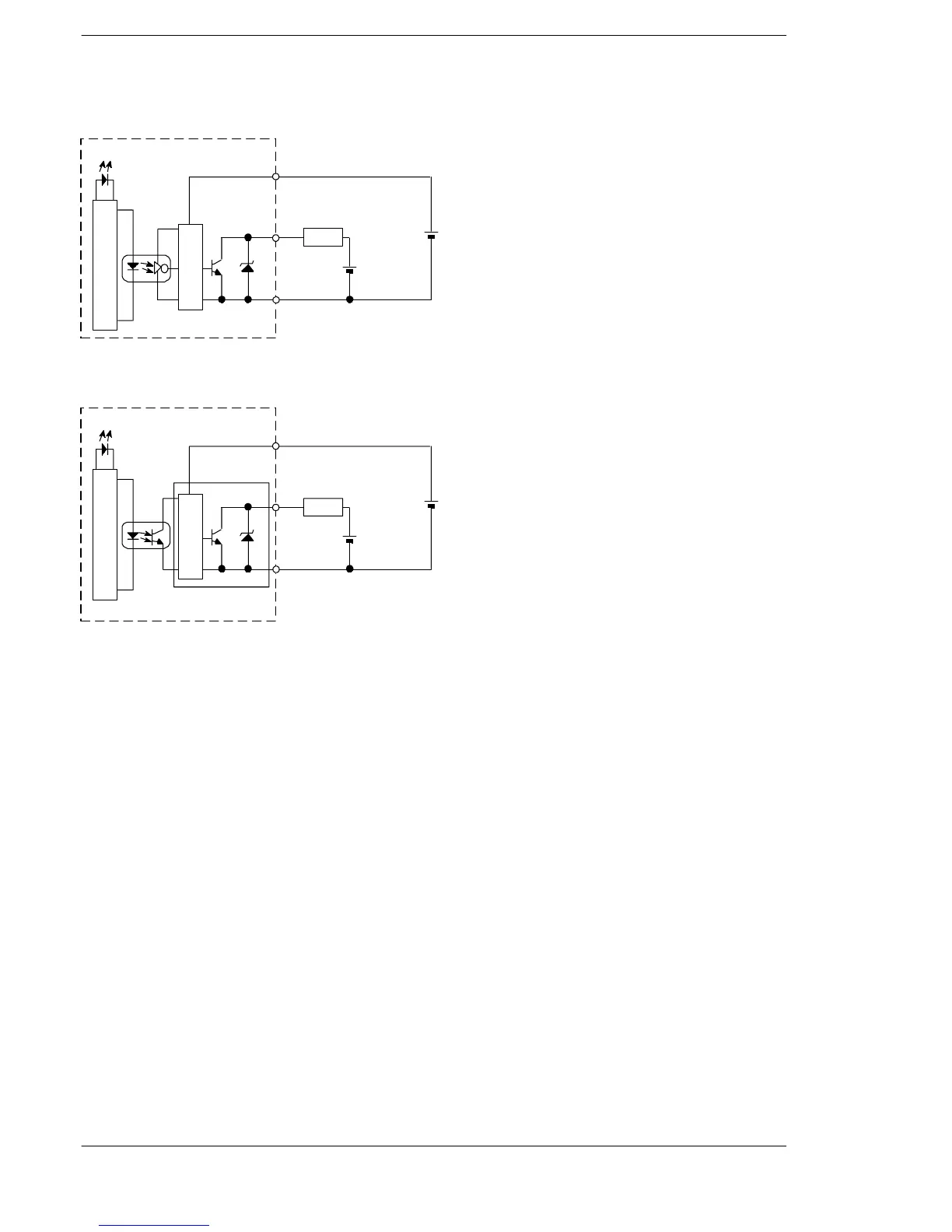

Internal
circuit
diagram
Internal
circuit
Output
indicator
LED
+
Output
Load
0V
Load
power
supply
5t
o2
4VD
C
Output
circuit
External
power
supply
24
V
DC
[Y0,
Y1,
Y3,
Y4]
Figure
15:
FP
Σ
Internal
circuit
diagram
(output
-
1)
[Y2,
Y5
to
YF]
Internal
circuit
Output
indicator
LED
Output
circuit
+
Output
Load
0V
Load
power
supply
5t
o2
4VD
C
External
power
supply
24
V
DC
Phase
fault
protection
circuit
Figure
16:
FP
Σ
Internal
circuit
diagram
(output
-
2)
32
34
