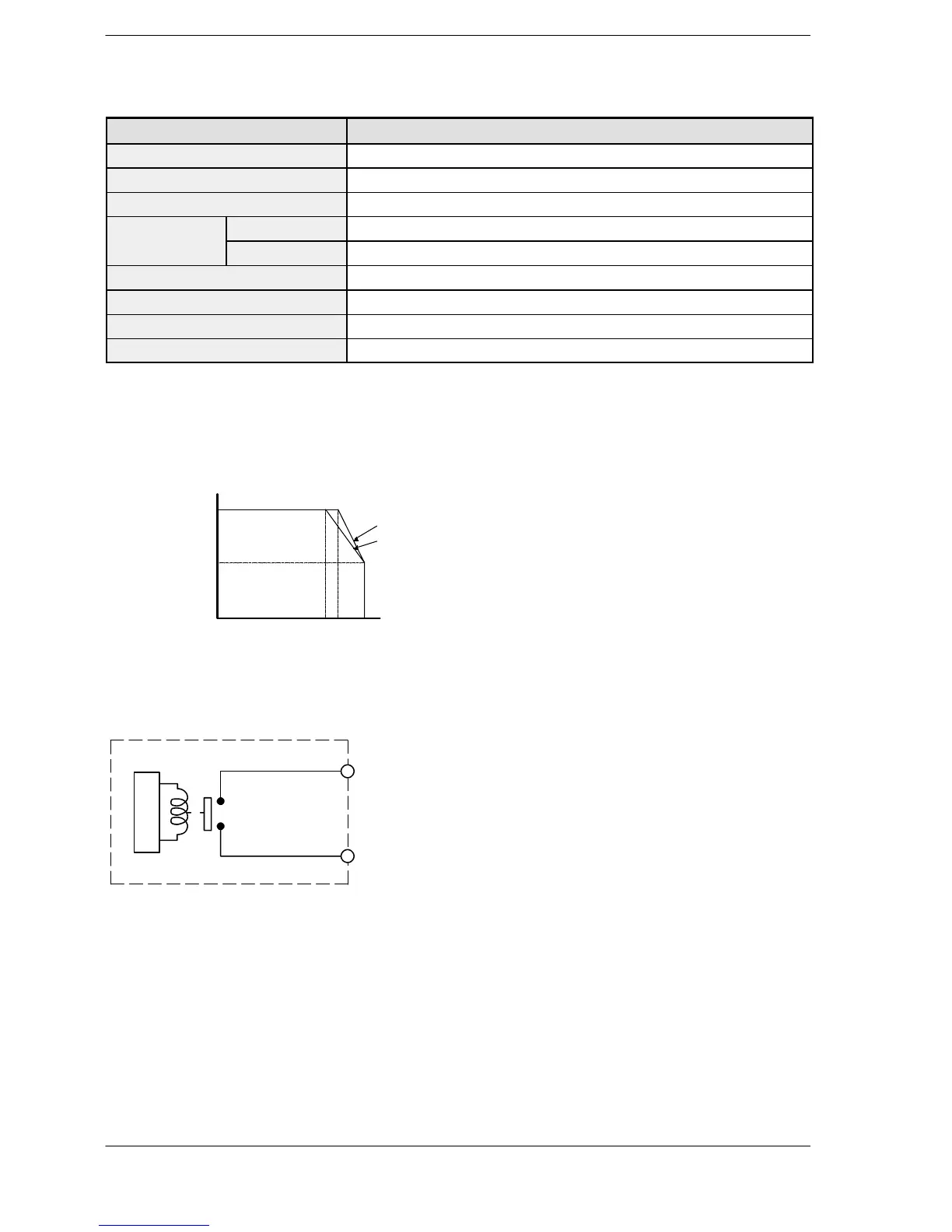

2.2 Input and Output Specifications
2-11
Relay output specifications (for C24R2)
Item Description
Output type 1a (1 Form A, Normally open)
Rated control capacity 2 A 250 V AC, 2 A 20 V DC (4.5 A per common or later)
Output points per common 8 points/common
Response time off → on Approx. 10 ms
on → off Approx. 8 ms
Mechanical lifetime Min. 20,000,000 operations
Electrical lifetime Min. 100,000 operations
Surge absorber -
Operating mode indicator LED display
Limitations on number of simultaneous output on points
Keep the number of output points which are simultaneously on within the following
range as determined by the ambient temperature.
8
46/
107.8
48/
118.4
55/
124
[C24R]
at 24 V DC
at 26.4 V DC
4
Ambient temperature (°C/°F)
Number of
points per
common
which are
simultaneous
on
Internal circuit diagram
Internal circuit
Yn
COM
[C24R]
