1.2 Expansion Possibilities
1.2 Expansion Possibilities
Be sure to check that the units are added according to the following restrictions:
D
A maximum of three expansion I/O units or analog I/O units
can be connected to one control unit.
D
There are no restrictions on the combinations of the kind
control units and expansion units.
D
A combination of relay output types and transistor output
types is also possible.
D
The expansion unit can be attached directly to the control unit
easily. Special expansion cables, backplanes, and so forth,
are unnecessary as the expansion unit employs a stacking
system that uses expansion connector and expansion hooks
on the surface of the unit itself.
 « « « « « ® « « « « « ¯

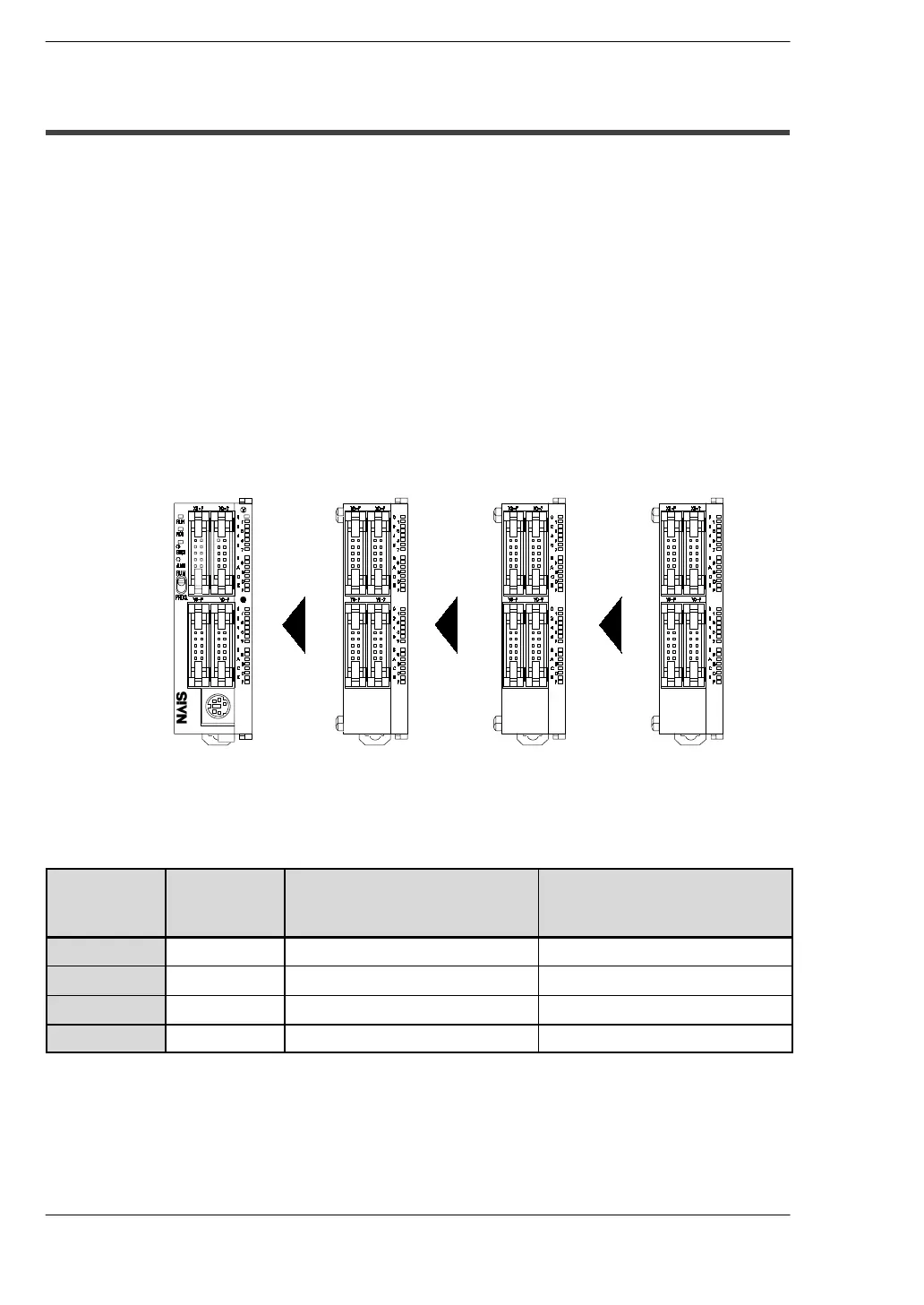

Control unit First
expansion unit
Second
expansion unit
Third
expansion uni
t
Maximum possible expansion is with a total of 3 units
Contollable I/O Points
Type of
control unit
Control unit
only
When the expansion unit is
the same output type as the
control unit
When the expansion unit is
a transistor output type
C10R
10 points max. 58 points max. 106 points
C14R
14 points max. 62 points max. 110 points
C16T/C16P
16 points max. 112 points max. 112 points
C32T/C32P
32 points max. 128 points max. 128 points
