NAiS FP0-C32T User Manual

Analog I/O UnitFP0
4-3Matsushita Automation Controls

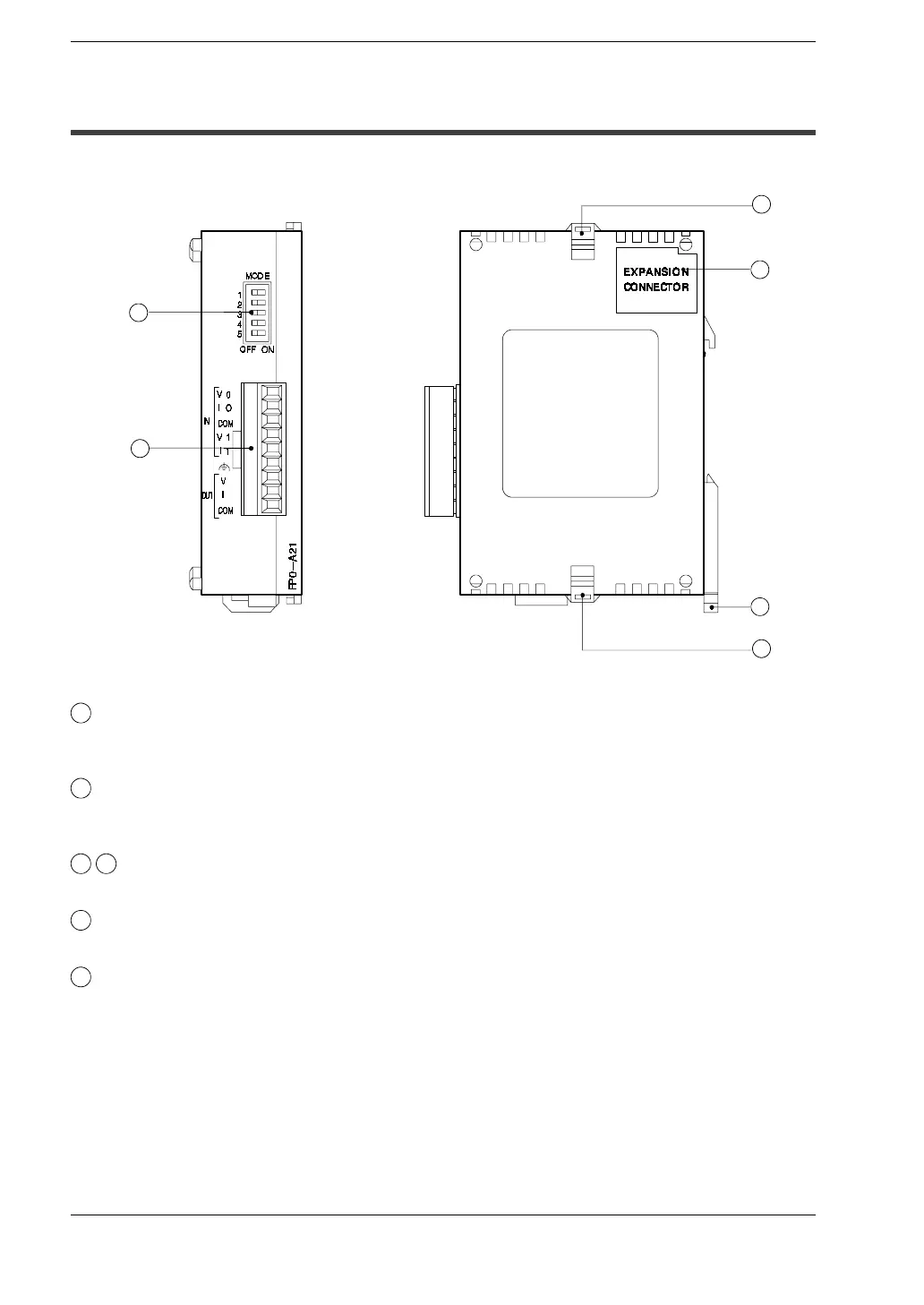

4.1 Parts and Terminology
4.1 Parts and Terminology
5
1
4
6
2
3
1
Analog mode switch
is used to switch between input and output modes (voltage/current). With the analog I/O unit, both
input channels are operated in the same range (
*
section 4.1.1.).
2
Analog I/O terminal (9-pin)
Use a terminal block socket made by Phoenix Contact Co. (product number: 1840434) (
*
section
4.1.2 and 7.6).
3 6
Expansion hook
is used to secure expansion units.
4
Expansion connector
connects an expansion unit to the internal circuit of the analog I/O unit (
*
section 6.1).
5
DIN rail attachment lever
6
allows simple attachment to a DIN rail. The lever is also used for installation on FP0 slim type
mounting plate (AFP0803).
