NAiS FP0-C32T

Dimensions FP0
A-4
Matsushita Automation Controls
A.1 Control Unit and Expansion I/O Unit
A.1.3 FP0-C16T/C16CT/C16P/C16CP/E16T/E16P/E8X/E8YT/E8YP

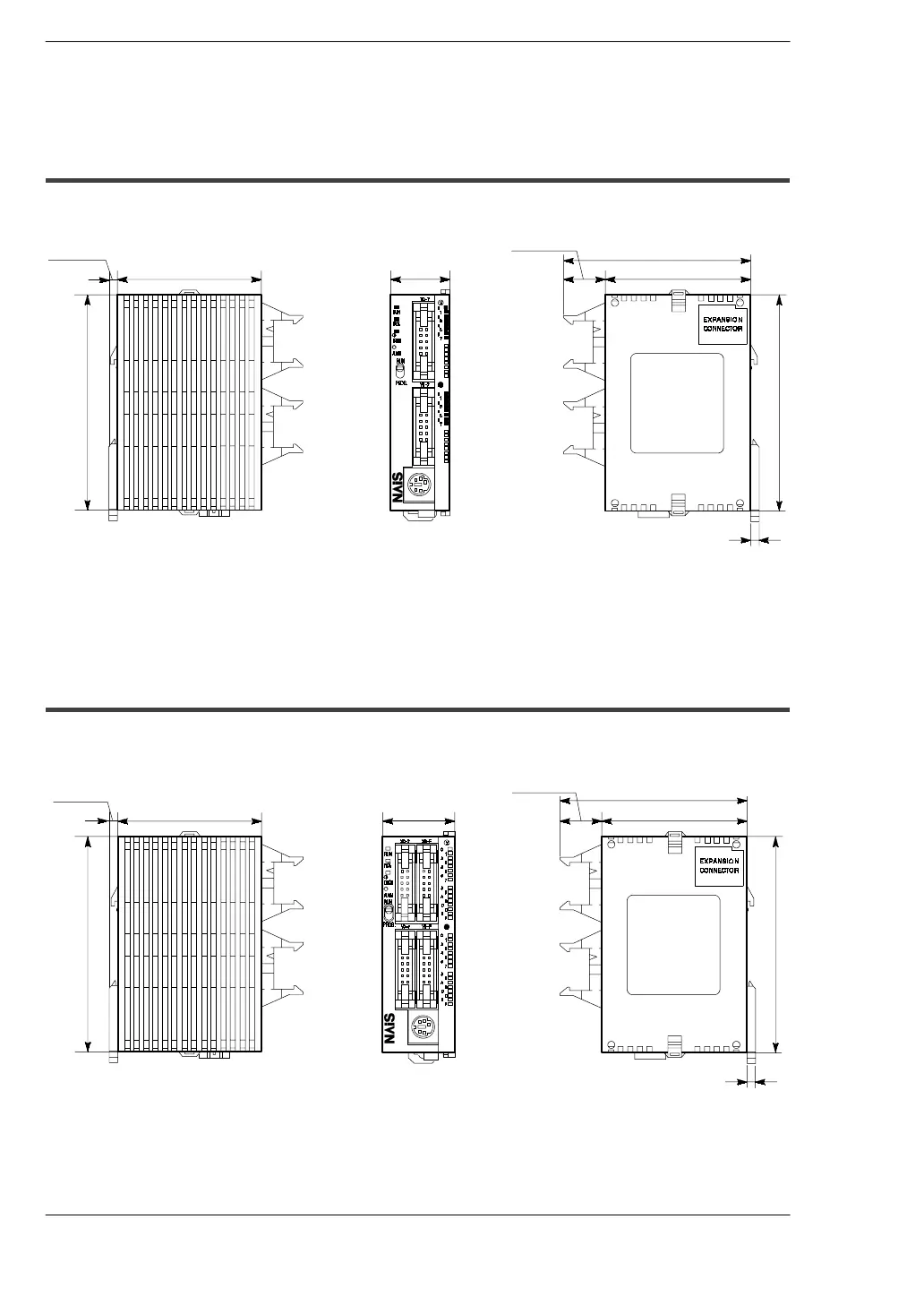

Illustration: FP0-C16T Reference measurements for wiring
Approx. 78.0/3.071
60.0/2.362
90.0/3.543
(3.5/0.138)
60.0/2.362
90.0/3.543
25.0/0.984
(unit: mm/in.)
3.5/0.138
(18/0.709)
A.1.4 FP0-C32T/C32CT/C32P/C32CP/E32T/E32P/E16X/E16YT/E16YP
Illustration: FP0-C32T Reference measurements for wiring
Approx. 78.0/3.071
60.0/2.362
90.0/3.543
(3.5/0.138)
60.0/2.362
90.0/3.543
30.0/1.181
(unit: mm/in.)
3.5/0.138
(18/0.709)
